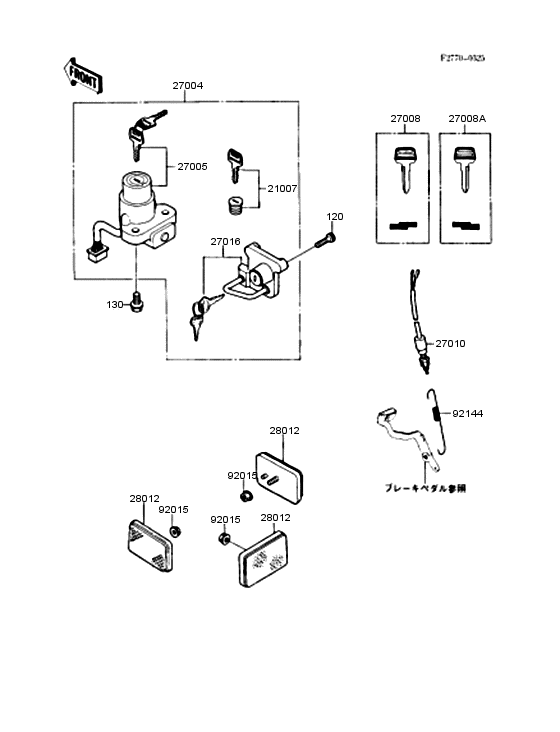

Ignition switch Diagram Kawasaki KL650 KLR650
- Year
- 1988
- Colour
- 00
- Model code
- KL650-A2
- Sales region
- Japan
- Engine Capacity
- 650
- Frame
- KL650A 008701 -
- Engine
- KL650AE 007501 -
- Model
- KLR650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0612 BOLT-SOCKET,6X12ボルト(ロツカクアナ) |
120S0612 |
from US $1.43 |
||
| replacement | |||||
|
120
|
120
120CB0612 BOLT-SOCKET,6X12ボルト(ロツカクアナ) |
120CB0612 |
from US $1.11 |
||
|
130
|
130
130D0614
BOLT-FLANGED,6X14
ボルト(ツバツキ)，6X14 |
130D0614 |
— | ||
| replacements | |||||
|
130
|
130
130AA0614 BOLT-FLANGEDボルト(ツバツキ)，6X14 |
130AA0614 |
from US $0.82 |
||
|
130
|
130
130BA0614 BOLT-FLANGED,6X14ボルト(ツバツキ)，6X14 |
130BA0614 |
from US $0.79 |
||
|
21007
|
21007
21007-5022 SWITCH-ASSY,TANK CAPロ-タ，ロツク，タンク キヤツプ |
21007-5022 |
US $61.76 |
||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAPロ-タ，ロツク，タンク キヤツプ |
27045-5024 |
from US $45.42 |
||
|
27004
|
27004
27004-5322 SWITCH-ASSYスイツチアツシ |
27004-5322 |
from US $196.02 |
||
|
27005
|
27005
27005-1129 SWITCH-ASSY-IGNITIONスイツチアツシ(イグニシヨン) |
27005-1129 |
from US $154.44 |
||
|
27008
|
27008
27008-1034 KEY-LOCK,BLANK,#Aキ-(ロツク)，ブランク，#A |
27008-1034 |
from US $13.94 |
||
|
27008A
|
27008A
27008-1035 KEY-LOCK,BLANKキ-(ロツク)，ブランク，#B |
27008-1035 |
US $15.71 |
||
| replacement | |||||
|
27008A
|
27008A
27008-1105 KEY-LOCK,BLANKキ-(ロツク)，ブランク，#B |
27008-1105 |
from US $12.83 |
||
|
27010
|
27010
27010-1019
SWITCH,REAR BRAKE
スイツチ，リヤ ブレ-キ |
27010-1019 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-1474 SWITCH,REAR BRAKEスイツチ，リヤ ブレ-キ |
27010-1474 |
from US $21.84 |
||
|
27016
|
27016
27016-5075 LOCK-ASSY,HELMETロツクアツシ，ヘルメツト; KX80-M2/P2 |
27016-5075 |
from US $86.62 |
||
|
28012
|
28012
28012-1054
Reflector-reflex,rr
リフレクタ(リフレツクス)，RR |
28012-1054 |
— | ||
| replacement | |||||
|
28012
|
28012
28012-1088 Reflector-reflexリフレクタ(リフレツクス)，RR |
28012-1088 |
from US $17.58 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MMナツト，フランジ，5MM |
92015-1259 |
from US $2.53 |
||
|
92144
|
92144
92144-1093 SPRING,REAR BRAKE SWIスプリング，リヤ ブレ-キ スイツチ |
92144-1093 |
US $3.27 |
||
