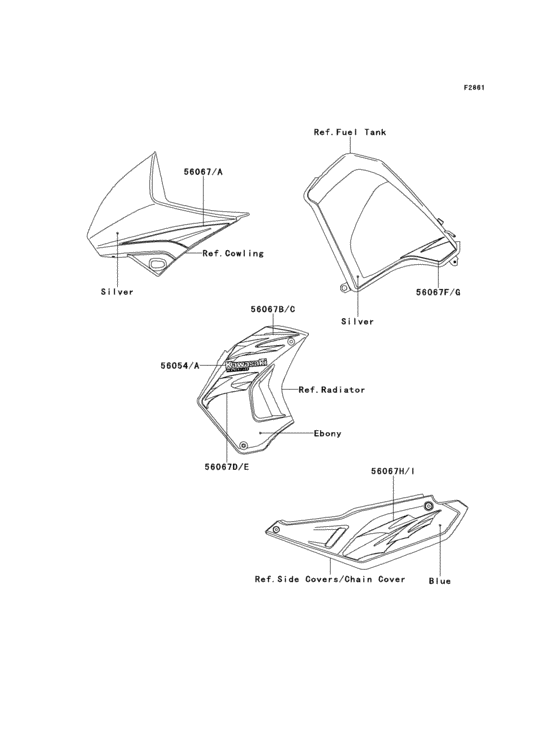

Decals(blue)(e8f) Diagram Kawasaki KL650 KLR650
- Year
- 2008
- Colour
- Blue 21 (S8)
- Model code
- KL650E8F
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- KLR650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56054
|
56054
56054-0014 MARK,SHROUD,LH,KAWASA |
56054-0014 |
from US $31.91 |
||
|
56054A
|
56054A
56054-0024 MARK,SHROUD,RH,KAWASA |
56054-0024 |
from US $31.91 |
||
|
56067
|
56067
56067-1967 PATTERN,SIDE COVER,LH |
56067-1967 |
from US $51.51 |
||
|
56067A
|
56067A
56067-1968 PATTERN,SIDE COVER,RH |
56067-1968 |
from US $51.51 |
||
|
56067B
|
56067B
56067-1969 PATTERN,SHROUD,UPP,LH |
56067-1969 |
from US $51.51 |
||
|
56067C
|
56067C
56067-1970 PATTERN,SHROUD,UPP,RH |
56067-1970 |
from US $51.51 |
||
|
56067D
|
56067D
56067-1971 PATTERN,SHROUD,LWR,LH |
56067-1971 |
from US $46.84 |
||
|
56067E
|
56067E
56067-1972 PATTERN,SHROUD,LWR,RH |
56067-1972 |
from US $46.84 |
||
|
56067F
|
56067F
56067-1973 Pattern,fuel tank,lh |
56067-1973 |
from US $42.36 |
||
|
56067G
|
56067G
56067-1974 Pattern,fuel tank,rh |
56067-1974 |
from US $42.36 |
||
|
56067H
|
56067H
56067-1975 PATTERN,UPP COWLING,L |
56067-1975 |
from US $42.36 |
||
|
56067I
|
56067I
56067-1976 PATTERN,UPP COWLING,R |
56067-1976 |
from US $42.36 |
