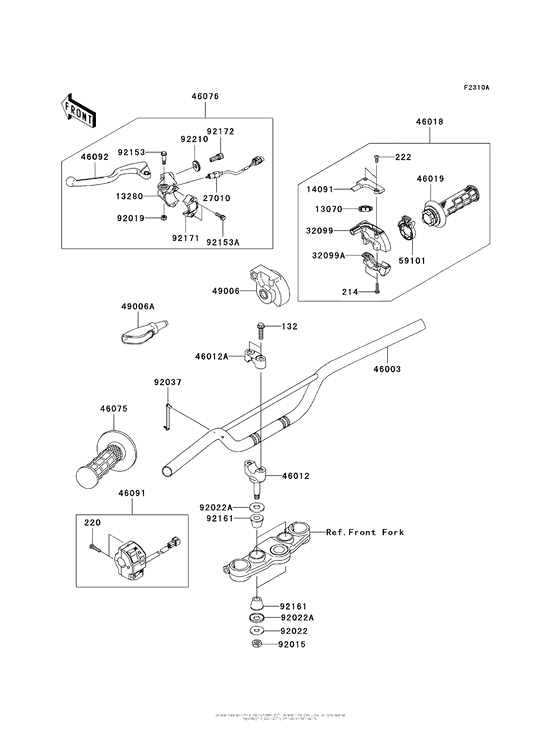

Handlebar (Bbf) Diagram Kawasaki KLX140 KLX140L
- Year
- 2011
- Model code
- KLX140BBF
- Sales region
- USA
- Engine Capacity
- 140
- Model
- KLX140L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BC0830 BOLT-FLANGED-SMALL,8X |
132BC0830 |
from US $2.32 |
||
|
214
|
214
214AB0518 SCREW-PAN+-,5X18 |
214AB0518 |
from US $1.11 |
||
|
220
|
220
220AB0522 SCREW-PAN-CROS |
220AB0522 |
from US $0.79 |
||
|
222
|
222
222AB0412 SCREW-CSK-RD-CROS |
222AB0412 |
from US $0.79 |
||
|
13070
|
13070
13070-0083 GUIDE,THROTTLE |
13070-0083 |
from US $4.59 |
||
|
13280
|
13280
13280-0256 HOLDER,CLUTCH LEVER |
13280-0256 |
from US $20.43 |
||
|
14091
|
14091
14091-0873 COVER,THROTTLE CASE |
14091-0873 |
from US $5.23 |
||
|
27010
|
27010
27010-0071 SWITCH,CLUTCH |
27010-0071 |
from US $34.56 |
||
|
32099
|
32099
32099-0037 CASE,THROTTLE,UPP |
32099-0037 |
from US $13.46 |
||
|
32099A
|
32099A
32099-0038 CASE,THROTTLE,LWR |
32099-0038 |
from US $11.09 |
||
|
46003
|
46003
46003-0205-458 HANDLE,P.SILVER |
46003-0205-458 |
US $97.78 |
||
|
46012
|
46012
46012-0013-458 HOLDER-HANDLE,LWR,P.S |
46012-0013-458 |
from US $25.88 |
||
|
46012A
|
46012A
46012-0023-458 HOLDER-HANDLE,UPP,P.S |
46012-0023-458 |
from US $14.41 |
||
|
46018
|
46018
46018-0073 GRIP-ASSY-THROTTLE |
46018-0073 |
US $148.04 |
||
|
46019
|
46019
46019-0023 GRIP-ASSY,THROTTLE |
46019-0023 |
from US $19.17 |
||
|
46075
|
46075
46075-0072 GRIP,LH |
46075-0072 |
from US $8.87 |
||
|
46076
|
46076
46076-0049 LEVER-ASSY-GRIP,CLUTC |
46076-0049 |
US $62.31 |
||
|
46091
|
46091
46091-0226 HOUSING-ASSY-CONTROL, |
46091-0226 |
from US $67.17 |
||
|
46092
|
46092
46092-0026 LEVER-GRIP,CLUTCH |
46092-0026 |
from US $20.16 |
||
|
49006
|
49006
49006-0075 BOOT,THROTTLE CASE |
49006-0075 |
from US $8.55 |
||
|
49006A
|
49006A
49006-0080 BOOT,LEVER HOLDER |
49006-0080 |
from US $10.61 |
||
|
59101
|
59101
59101-0005 REEL,THROTTLE |
59101-0005 |
from US $7.29 |
||
|
92015
|
92015
92210-1184 NUT |
92210-1184 |
from US $4.09 |
||
|
92019
|
92019
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
92022
|
92022
92022-1088 WASHER,10.2X28X2 |
92022-1088 |
from US $2.85 |
||
|
92022A
|
92022A
92022-1737 WASHER |
92022-1737 |
from US $3.17 |
||
|
92037
|
92037
92037-1163 ClampL=58 |
92037-1163 |
from US $3.96 |
||
|
92153
|
92153
92153-1897 BOLT,6MM |
92153-1897 |
from US $4.59 |
||
|
92153A
|
92153A
92153-1898 BOLT,5X20 |
92153-1898 |
from US $2.22 |
||
|
92161
|
92161
92161-0632 DAMPER,HANDLE HOLDER |
92161-0632 |
from US $3.01 |
||
|
92171
|
92171
92171-1671 CLAMP,LEVER HOLDER |
92171-1671 |
from US $4.91 |
||
|
92172
|
92172
92172-0330 SCREW,CABLE ADJUST,8M |
92172-0330 |
from US $1.90 |
||
|
92210
|
92210
92210-0411 NUT,CABLE ADJUST |
92210-0411 |
from US $2.69 |
