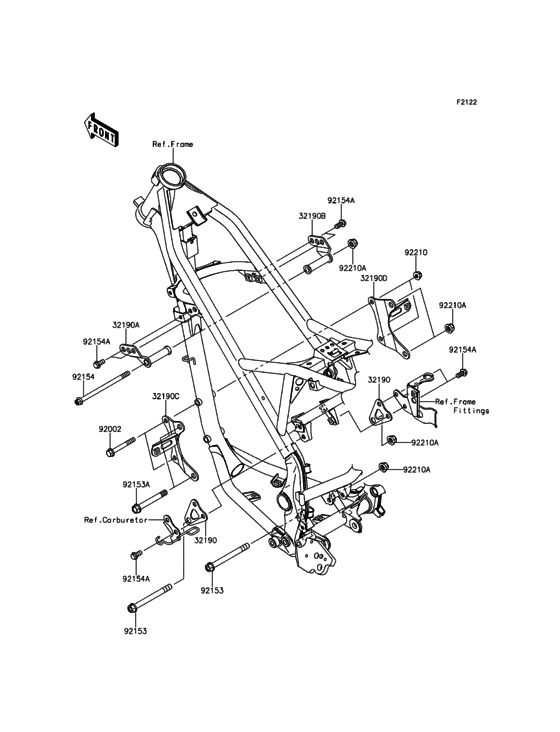

Engine Mount Diagram Kawasaki KLX150 D-Tracker
- Year
- 2016
- Model code
- KLX150HGF
- Sales region
- Europe (General)
- Engine Capacity
- 150
- Model
- KLX150 D-Tracker
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32190
|
32190
32190-0310 BRACKET-ENGINE,RR |
32190-0310 |
from US $3.17 |
||
|
32190A
|
32190A
32190-0437 BRACKET-ENGINE,HEAD,Lヘツド，LH; エンジン |
32190-0437 |
from US $3.96 |
||
|
32190B
|
32190B
32190-0439 BRACKET-ENGINE,HEAD,Rヘツド，RH; エンジン |
32190-0439 |
from US $3.96 |
||
|
32190C
|
32190C
32190-0684 Bracket-Engine,fr,lh |
32190-0684 |
from US $16.98 |
||
|
32190D
|
32190D
32190-0685 Bracket-Engine,fr,rh |
32190-0685 |
from US $16.98 |
||
|
92002
|
92002
92002-1349 BOLT,FLANGED,8X70 |
92002-1349 |
from US $3.17 |
||
|
92153
|
92153
92153-0614 BOLT,FLANGED,10X105 |
92153-0614 |
from US $5.23 |
||
|
92153A
|
92153A
92153-1126 BOLT,FLANGED,10X80フランジ，10X80 |
92153-1126 |
from US $3.17 |
||
|
92154
|
92154
92154-0088 BOLT,FLANGED,10X170フランジ，10X170 |
92154-0088 |
from US $8.55 |
||
|
92154A
|
92154A
92154-0462 BOLT,FLANGED,8X16 |
92154-0462 |
US $9.40 |
||
|
92210
|
92210
92210-0140 NUT,LOCK,FLANGED,8MM |
92210-0140 |
from US $1.11 |
||
|
92210A
|
92210A
92210-1080 NUT |
92210-1080 |
from US $6.49 |
