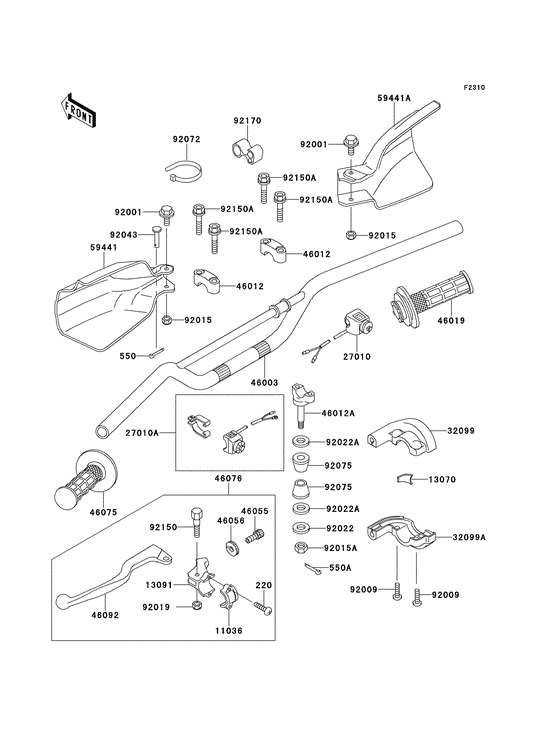

Handlebar Diagram Kawasaki KLX650 KLX650
- Year
- 1993
- Model code
- KLX650-A1
- Sales region
- USA
- Engine Capacity
- 650
- Model
- KLX650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220C0514
SCREW-PAN-CROSS
|
220C0514 |
— | ||
| replacement | |||||
|
220
|
220
220AB0514 SCREW-PAN-CROSS |
220AB0514 |
from US $1.25 |
||
|
550
|
550
550D1210
PIN COTTER 1.2X10
Pin-cotter,1.2x10; |
550D1210 |
— | ||
| replacement | |||||
|
550
|
550
550AA1210 PIN-COTTER,1.2X10Pin-cotter,1.2x10; |
550AA1210 |
from US $1.12 |
||
|
550A
|
550A
550D2020 PIN-COTTER,2.0X20Pin-cotter,2.0x20; |
550D2020 |
US $0.79 |
||
| replacement | |||||
|
550A
|
550A
550AA2020 PIN-COTTER,2.0X20Pin-cotter,2.0x20; |
550AA2020 |
from US $0.79 |
||
|
11036
|
11036
11036-1297
BRACKET,LEVER HOLDER
Bracket-a,lever holder; |
11036-1297 |
— | ||
| replacements | |||||
|
11036
|
11036
11056-0150
BRACKET,LEVER HOLDER
Bracket-a,lever holder; |
11056-0150 |
— | ||
|
11036
|
11036
11056-0036 BRACKET,LEVER HOLDERBracket-a,lever holder; |
11056-0036 |
from US $9.33 |
||
|
11036
|
11036
11058-2777 BRACKET,LEVER HOLDERBracket-a,lever holder; |
11058-2777 |
US $17.31 |
||
|
13070
|
13070
13070-1270 GUIDE,THROTTLE CABLEGuide,throttle cable; |
13070-1270 |
from US $3.64 |
||
|
13091
|
13091
13091-1131 HOLDER,CLUTCH LEVERHolder,clutch lever; |
13091-1131 |
from US $30.52 |
||
|
27010
|
27010
27010-1279 SWITCH,LIGHTINGSwitch,lighting; |
27010-1279 |
from US $50.86 |
||
|
27010A
|
27010A
27010-1350 Switch, engine stopSwitch,engine stop; |
27010-1350 |
from US $36.95 |
||
|
32099
|
32099
32099-1143 CASE,THROTTLECase,throttle,upp; |
32099-1143 |
from US $20.64 |
||
|
32099A
|
32099A
32099-1144 CASE,THROTTLECase,throttle,lwr; |
32099-1144 |
from US $20.64 |
||
|
46003
|
46003
46003-1439-CE
HANDLE,SILVER NO.25
Handle,silver no.25; |
46003-1439-CE |
— | ||
|
46012
|
46012
46012-1191
HOLDER-HANDLE
|
46012-1191 |
— | ||
|
46012A
|
46012A
46012-1263 HOLDER-HANDLE,LWRHolder-handle,lwr; |
46012-1263 |
from US $31.27 |
||
|
46019
|
46019
46019-1078 GRIP-ASSY,THROTTLEGrip-assy,throttle; |
46019-1078 |
from US $26.33 |
||
|
46055
|
46055
46055009 SCREW,CABLE ADJUSTScrew,cable adjust,8mm; |
46055009 |
from US $12.99 |
||
|
46056
|
46056
46056006 NUT,CABLE ADJUST LOCKNut,cable adjust; |
46056006 |
from US $6.02 |
||
|
46075
|
46075
46075-1107 GRIP,LHGrip,lh; |
46075-1107 |
from US $17.58 |
||
|
46076
|
46076
46076-1163 LEVER-ASSY-GRIP,CLUTCHLever-assy-grip,clutch; |
46076-1163 |
from US $59.55 |
||
|
46092
|
46092
46092-1110 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-1110 |
US $28.24 |
||
| replacement | |||||
|
46092
|
46092
46092-0045 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-0045 |
from US $23.33 |
||
|
59441
|
59441
59441-1094-6W
COVER-HANDLE,LH,L.GRE
Cover-handle,lh,l.green; |
59441-1094-6W |
— | ||
|
59441A
|
59441A
59441-1108-6W
COVER-HANDLE,RH,L.GRE
Cover-handle,rh,l.green; |
59441-1108-6W |
— | ||
|
92001
|
92001
92001-1034 BOLT,HEX HEAD,6X10Bolt,flanged,6x10; |
92001-1034 |
from US $6.49 |
||
|
92009
|
92009
92009-1699 SCREW,5X16Screw,5x16; |
92009-1699 |
from US $2.38 |
||
|
92015
|
92015
92015-1603 NUTNut,lock,6mm; |
92015-1603 |
from US $2.85 |
||
|
92015A
|
92015A
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
US $7.74 |
||
| replacement | |||||
|
92015A
|
92015A
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92019
|
92019
92019-008 NUTNut,lock,6mm; |
92019-008 |
from US $2.53 |
||
|
92022
|
92022
92022-1088 WASHER,10.2X28X2Washer,10.2x28x2; |
92022-1088 |
from US $2.85 |
||
|
92022A
|
92022A
92022-1737 WASHER |
92022-1737 |
from US $3.17 |
||
|
92043
|
92043
92043-1434 PIN,5X27.5Pin,5x27.5; |
92043-1434 |
from US $5.54 |
||
|
92072
|
92072
92072-1293 BANDBand,l=140; |
92072-1293 |
from US $6.18 |
||
|
92075
|
92075
92075-1776 DAMPER |
92075-1776 |
from US $4.75 |
||
|
92150
|
92150
92150-1291 Bolt |
92150-1291 |
from US $14.73 |
||
|
92150A
|
92150A
92150-1696 BOLT,FLANGED,8X35Bolt,flanged,8x35; |
92150-1696 |
from US $3.64 |
||
|
92170
|
92170
92170-1255
CLAMP,BRAKE HOSE
Clamp,brake hose; |
92170-1255 |
— | ||
