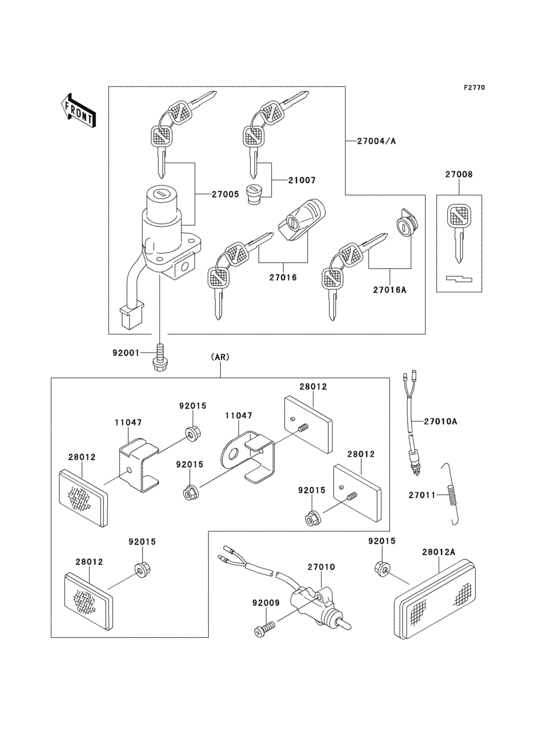

Ignition switch Diagram Kawasaki KLX650 KLX650 Motard
- Year
- 1994
- Model code
- KLX650-C2
- Sales region
- Germany
- Engine Capacity
- 650
- Frame
- LX650C 015001 - 021000
- Model
- KLX650 Motard
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
27004
|
27004
27004-5443 SWITCH-ASSY |
27004-5443 |
US $221.63 |
||
|
27005
|
27005
27005-1170
SWITCH-ASSY-IGNITION
|
27005-1170 |
— | ||
|
27008
|
27008
27008-1105 KEY-LOCK,BLANK |
27008-1105 |
from US $12.83 |
||
|
27010
|
27010
27010-1264 SWITCH,SIDE STAND |
27010-1264 |
from US $44.94 |
||
|
27010A
|
27010A
27010-1489 SWITCH,REAR BRAKE |
27010-1489 |
from US $32.31 |
||
|
27011
|
27011
27011021 BRAKE SWITCH SPRING |
27011021 |
from US $3.33 |
||
|
27016
|
27016
27016-5285
ロツクアツシ，ヘルメツト
|
27016-5285 |
— | ||
|
27016A
|
27016A
27016-5177 LOCK-ASSY,TOOL BOX |
27016-5177 |
US $57.45 |
||
|
28012A
|
28012A
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
92001
|
92001
92001-1465 BOLT,TORX,6X20 |
92001-1465 |
from US $2.95 |
||
|
92009
|
92009
92009-1459 SCREW |
92009-1459 |
from US $3.90 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
