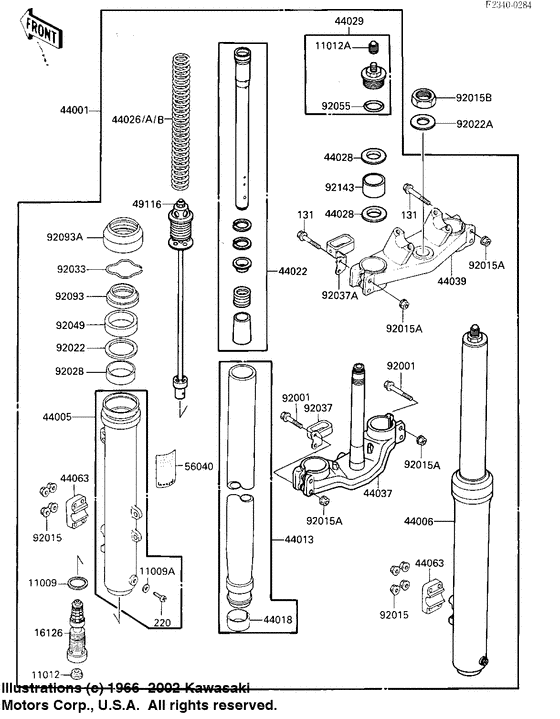

Front fork Diagram Kawasaki KX125
- Year
- 1987
- Model code
- KX125-E2
- Sales region
- USA
- Engine Capacity
- 125
- Model
- KX125-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
131
|
131
130G0850 BOLT-FLANGED,8X50Bolt,flanged,8x50; |
130G0850 |
from US $1.43 |
||
| replacement | |||||
|
131
|
131
130BA0850 BOLT-FLANGED,8X50Bolt,flanged,8x50; |
130BA0850 |
from US $1.40 |
||
|
220
|
220
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
220
|
220
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
11009
|
11009
11009-1592 GASKET,FORK CYLINDERGasket,fork cylinder; |
11009-1592 |
from US $4.59 |
||
|
11009A
|
11009A
44045002 GASKET FORK DRAIN PLGGasket fork drain plg; |
44045002 |
from US $3.96 |
||
|
11012
|
11012
11012-1381 CAP,FORK CYLINDERCap,fork cylinder; |
11012-1381 |
from US $4.28 |
||
|
11012A
|
11012A
11012-1391 CAP,VALVE AIRCap,valve air; |
11012-1391 |
from US $4.12 |
||
|
16126
|
16126
16126-1185 VALVE,FORK CYLINDERValve,fork cylinder; |
16126-1185 |
US $132.84 |
||
|
44001
|
44001
44001-1643 FORK-FRONT |
44001-1643 |
US $1,988.03 |
||
|
44005
|
44005
44005-1253 PIPE-LEFT FORK OUTER |
44005-1253 |
US $405.56 |
||
| replacement | |||||
|
44005
|
44005
44005-1270 PIPE-LEFT FORK OUTER |
44005-1270 |
US $405.56 |
||
|
44006
|
44006
44006-1243 PIPE-RIGHT FORK OUTERPipe-right fork outer; |
44006-1243 |
US $354.60 |
||
| replacement | |||||
|
44006
|
44006
44006-1267 PIPE-RIGHT FORK OUTERPipe-right fork outer; |
44006-1267 |
US $354.60 |
||
|
44013
|
44013
44013-1256 PIPE-FORK INNER |
44013-1256 |
US $431.96 |
||
|
44018
|
44018
44018-1005 PISTON-FORKPiston-fork; |
44018-1005 |
from US $32.60 |
||
|
44022
|
44022
44022-1200 CYLINDER-FORK |
44022-1200 |
US $145.31 |
||
|
44026
|
44026
44026-1208 SPRING-FRONT FORK,K=0Spring-front fork,k=0; (option) |
44026-1208 |
US $88.87 |
||
|
44026A
|
44026A
44026-1324 SPRING-FRONT FORK,K=0Spring-front fork,k=0; (option) |
44026-1324 |
US $85.46 |
||
|
44026B
|
44026B
44026-1360 SPRING-FRONT FORK,K=0Spring-front fork,k=0; |
44026-1360 |
US $62.73 |
||
|
44028
|
44028
44028-1010 GUIDE-FORK SPRING |
44028-1010 |
from US $8.87 |
||
|
44029
|
44029
44029-1107
SEAT-FORK SPRING
|
44029-1107 |
— | ||
|
44037
|
44037
44037-1218 Holder-fork under |
44037-1218 |
US $528.70 |
||
| replacement | |||||
|
44037
|
44037
44037-1208 Holder-fork under |
44037-1208 |
US $528.86 |
||
|
44039
|
44039
44039-1154 HOLDER-FORK UPPER |
44039-1154 |
from US $238.77 |
||
|
44063
|
44063
44063-1008 HOLDER-FRONT AXLE |
44063-1008 |
from US $42.57 |
||
|
49116
|
49116
49116-1068 VALVE-ASSY,FORKValve-assy,fork; |
49116-1068 |
US $168.55 |
||
|
56040
|
56040
56040-1120
LABEL,FRONT FORK
Label,front fork; |
56040-1120 |
— | ||
|
92001
|
92001
92001-1639 Bolt |
92001-1639 |
from US $4.75 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1485 NUT,FLANGED,8MMNut,flanged,8mm; |
92015-1485 |
from US $3.17 |
||
|
92015B
|
92015B
92015-1653
NUT,STEERING STEM,22M
|
92015-1653 |
— | ||
| replacement | |||||
|
92015B
|
92015B
92210-1521 NUT,STEERING STEM,22M |
92210-1521 |
from US $10.30 |
||
|
92022
|
92022
92022-1299 WASHER |
92022-1299 |
from US $5.39 |
||
|
92022A
|
92022A
92022-1873 WASHER |
92022-1873 |
from US $4.75 |
||
|
92028
|
92028
92028-1145 Bushing |
92028-1145 |
US $16.27 |
||
| replacement | |||||
|
92028
|
92028
92028-1581 BUSHING |
92028-1581 |
from US $16.16 |
||
|
92033
|
92033
92033-1077 RING-SNAP |
92033-1077 |
from US $3.01 |
||
|
92037
|
92037
92037-1627 Clamp |
92037-1627 |
from US $16.63 |
||
|
92037A
|
92037A
92037-1628
Clamp
|
92037-1628 |
— | ||
|
92049
|
92049
92049-1295 SEAL-OIL,FORK OUTER TSeal-oil,fork outer t; |
92049-1295 |
from US $15.05 |
||
|
92055
|
92055
92055-1123 RING-O |
92055-1123 |
from US $3.48 |
||
|
92093
|
92093
92093-1086 SEAL,FORK DUSTSeal,fork dust; |
92093-1086 |
from US $13.15 |
||
|
92093A
|
92093A
92093-1184 SEAL,FORKSeal,fork; |
92093-1184 |
US $16.27 |
||
|
92143
|
92143
92143-1065 COLLAR,L=55.5Collar,l=55.5; |
92143-1065 |
from US $7.04 |
||
