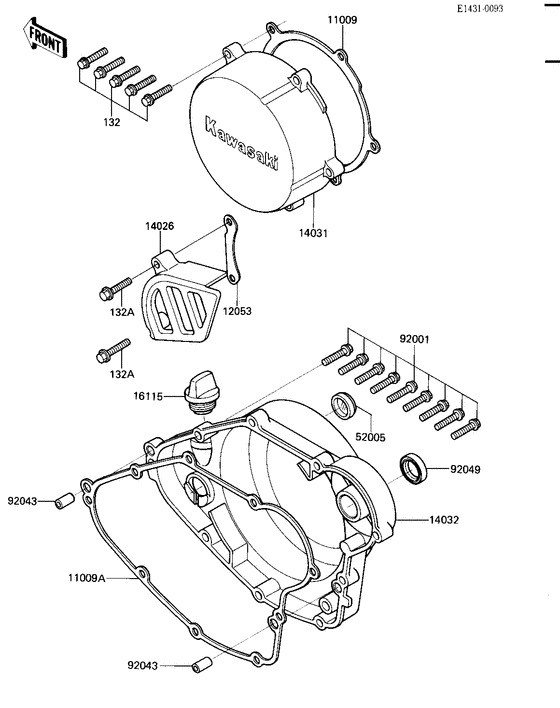

Engine covers ('84 a2) Diagram Kawasaki KX500
- Year
- 1984
- Model code
- KX500-A2
- Sales region
- USA
- Engine Capacity
- 500
- Model
- KX500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0625
BOLT-FLANGED-SMALL,6X
|
132G0625 |
— | ||
| replacements | |||||
|
132
|
132
92002-1609 Bolt |
92002-1609 |
from US $2.85 |
||
|
132
|
132
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
|
132A
|
132A
132G0630
BOLT-FLANGED-SMALL
|
132G0630 |
— | ||
| replacement | |||||
|
132A
|
132A
132BA0630 BOLT-FLANGED-SMALL |
132BA0630 |
from US $1.27 |
||
|
11009
|
11009
11009-1964 GASKET,GENERATOR COVEGasket,generator cove; |
11009-1964 |
from US $13.38 |
||
|
11009A
|
11009A
11009-1290 GASKET,CLUTCH COVERGasket,clutch cover; |
11009-1290 |
US $19.78 |
||
| replacement | |||||
|
11009A
|
11009A
11060-1464
GASKET,CLUTCH COVER
Gasket,clutch cover; |
11060-1464 |
— | ||
|
12053
|
12053
12053-1123 GUIDE-CHAIN |
12053-1123 |
US $7.22 |
||
|
14026
|
14026
14026-1119
COVER-CHAIN
|
14026-1119 |
— | ||
|
14031
|
14031
14031-1091
Cover-generator
|
14031-1091 |
— | ||
|
14032
|
14032
14032-1079
COVER-CLUTCH
|
14032-1079 |
— | ||
|
16115
|
16115
16115018 CAP-OIL FILLERFiller,oil; |
16115018 |
from US $7.92 |
||
|
52005
|
52005
52005-1009 GAUGE,OIL LEVELGauge,oil level; |
52005-1009 |
from US $13.15 |
||
|
92001
|
92001
132G0625
BOLT-FLANGED-SMALL,6X
|
132G0625 |
— | ||
| replacements | |||||
|
92001
|
92001
92002-1609 Bolt |
92002-1609 |
from US $2.85 |
||
|
92001
|
92001
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
|
92043
|
92043
92042-007 PIN-DOWELPin-dowel; |
92042-007 |
from US $4.44 |
||
|
92049
|
92049
92049-012 OIL SEAL SB20285Oil seal sb20285; |
92049-012 |
from US $10.67 |
||
