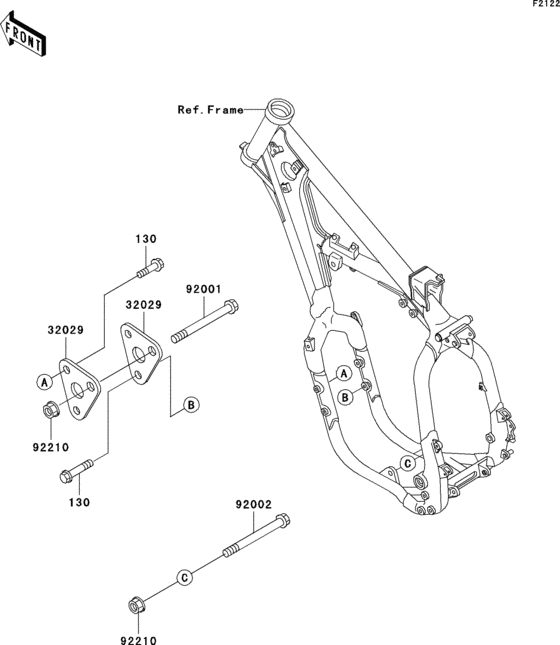

Engine mount Diagram Kawasaki KX500
- Year
- 2003
- Model code
- KX500-E15
- Sales region
- Europe
- Engine Capacity
- 500
- Model
- KX500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CA0825 BOLT-FLANGED,8X25 |
130CA0825 |
from US $0.94 |
||
|
32029
|
32029
32029-1652 BRACKET-ENGINE |
32029-1652 |
from US $14.93 |
||
|
92001
|
92001
92001-1701 BOLT,FLANGED,10X92 |
92001-1701 |
US $6.81 |
||
|
92002
|
92002
92002-1491 BOLT,FLANGED,10X105 |
92002-1491 |
from US $7.76 |
||
|
92210
|
92210
92210-1080 NUT |
92210-1080 |
from US $6.49 |
