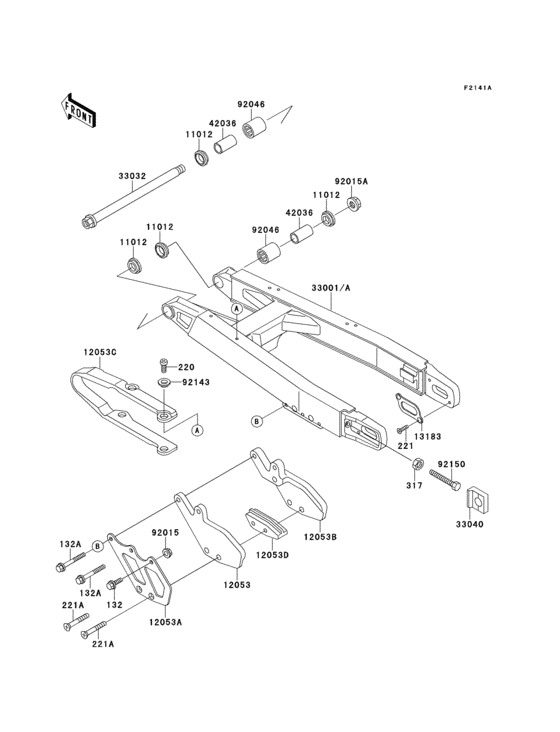

Swing arm(kx500-e2/e3) Diagram Kawasaki KX500
- Year
- 1990
- Colour
- Lime Green (7F)
- Model code
- KX500-E2
- Sales region
- Canada
- Engine Capacity
- 500
- Model
- KX500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0616
BOLT-FLANGED-SMALL,6X
|
132G0616 |
— | ||
| replacement | |||||
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6X |
132BA0616 |
from US $0.79 |
||
|
132A
|
132A
132G0635
BOLT-FLANGED-SMALL,6X
|
132G0635 |
— | ||
| replacement | |||||
|
132A
|
132A
132BA0635 BOLT-FLANGED-SMALL,6X35 |
132BA0635 |
from US $1.25 |
||
|
220
|
220
220B0608
SCREW-PAN-CROS
|
220B0608 |
— | ||
| replacement | |||||
|
220
|
220
220AA0608 SCREW-PAN-CROS |
220AA0608 |
from US $1.07 |
||
|
221
|
221
221B0510 SCREW CNTSNK HD 5X10 |
221B0510 |
from US $1.11 |
||
| replacement | |||||
|
221
|
221
221AA0510 SCREW-CSK-CROS,5X10 |
221AA0510 |
from US $0.79 |
||
|
221A
|
221A
221B0645 SCREW-CSK-CROS,6X45 |
221B0645 |
US $1.43 |
||
| replacement | |||||
|
221A
|
221A
221AA0645 SCREW-CSK-CROS,6X45 |
221AA0645 |
from US $1.43 |
||
|
317
|
317
317G0800 NUT-HEX-SMALL,8MM |
317G0800 |
from US $1.11 |
||
| replacement | |||||
|
317
|
317
317BA0800 NUT-HEX-SMALL,8MM |
317BA0800 |
from US $0.95 |
||
|
11012
|
11012
11012-1259 CAP,SWING ARM |
11012-1259 |
from US $15.52 |
||
|
12053
|
12053
12053-1234 GUIDE-CHAIN,RR,INSIDE |
12053-1234 |
from US $21.07 |
||
|
12053A
|
12053A
12053-1235 GUIDE-CHAIN,RR,OUTSID |
12053-1235 |
from US $23.64 |
||
|
12053B
|
12053B
12053-1236 GUIDE-CHAIN,RR,OUTSID |
12053-1236 |
from US $27.38 |
||
|
12053C
|
12053C
12053-1240 GUIDE-CHAIN,FR |
12053-1240 |
from US $50.71 |
||
|
12053D
|
12053D
12053-1270 GUIDE-CHAIN,DRIVE,RR, |
12053-1270 |
from US $30.52 |
||
|
13183
|
13183
13183-1546 PLATE |
13183-1546 |
from US $10.44 |
||
|
33001
|
33001
33001-1347-CE ARM-COMP-SWING,SILVER |
33001-1347-CE |
US $615.51 |
||
|
33032
|
33032
33032-1137 SHAFT-SWING ARM |
33032-1137 |
from US $40.99 |
||
| replacement | |||||
|
33032
|
33032
33032-0006 SHAFT-SWING ARM |
33032-0006 |
from US $41.44 |
||
|
33040
|
33040
33040-1106
ADJUSTER-CHAIN
|
33040-1106 |
— | ||
|
42036
|
42036
42036-1064 SLEEVE,SWING ARM |
42036-1064 |
from US $15.05 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
|
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MM |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1407 NUT,14MM |
92015-1407 |
from US $6.34 |
||
|
92046
|
92046
92046-1128 BEARING-NEEDLE,TA2030 |
92046-1128 |
from US $21.07 |
||
|
92143
|
92143
92143-1156 COLLAR |
92143-1156 |
from US $4.44 |
||
|
92150
|
92150
92150-1385 BOLT,8X55 |
92150-1385 |
from US $3.96 |
||
