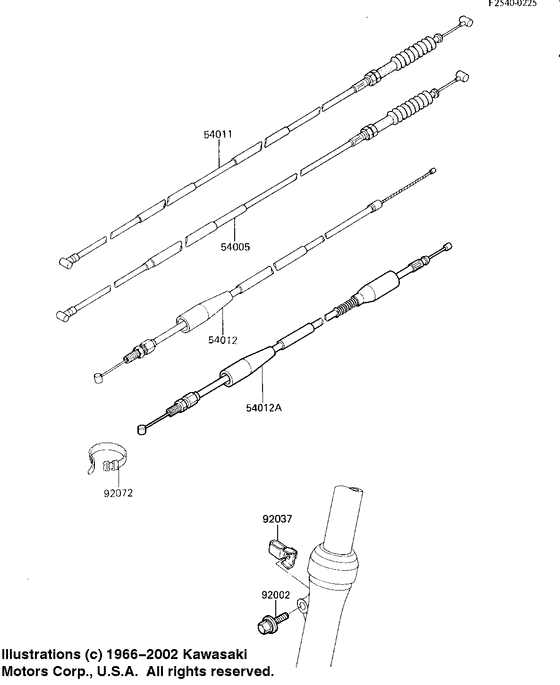

Cables Diagram Kawasaki KX60
- Year
- 1985
- Model code
- KX60-B1
- Sales region
- USA
- Engine Capacity
- 60
- Model
- KX60
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54005
|
54005
54005-1046 CABLE-BRAKE |
54005-1046 |
from US $27.08 |
||
|
54011
|
54011
54011-1222 Cable clutch |
54011-1222 |
from US $23.79 |
||
|
54012
|
54012
54012-1137 CABLE-THROTTLE |
54012-1137 |
from US $32.46 |
||
|
92002
|
92002
92002-1461
Bolt
Bolt,6x16; |
92002-1461 |
— | ||
| replacement | |||||
|
92002
|
92002
92150-1506 BoltBolt,6x16; |
92150-1506 |
from US $3.01 |
||
|
92037
|
92037
92037-1353 CLAMP,BRAKE CABLEClamp,brake cable; |
92037-1353 |
from US $7.44 |
||
|
92072
|
92072
92072-032 BAND,LONGBand,l=218; |
92072-032 |
from US $3.01 |
||
