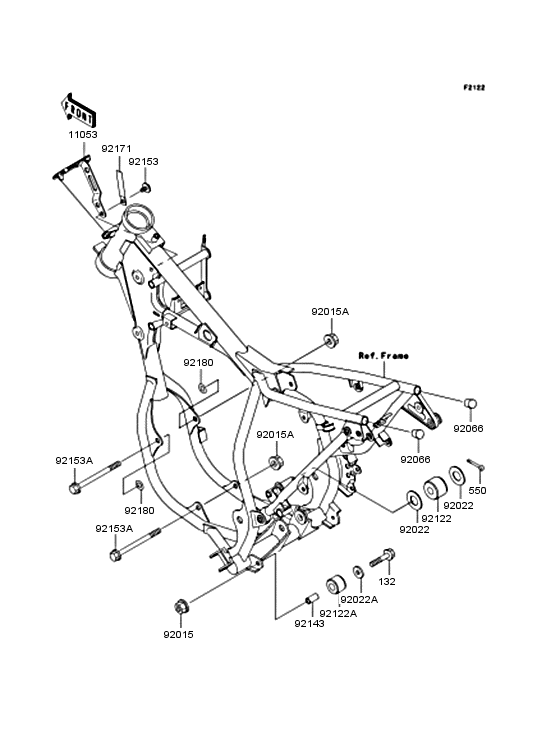

Engine mount Diagram Kawasaki KX65
- Year
- 2009
- Colour
- Ebony (H8)
- Model code
- KX65A9FA
- Sales region
- Japan
- Engine Capacity
- 65
- Frame
- KX065A 065001 -
- Engine
- KX065AE 000001 -
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0840 BOLT-FLANGED-SMALLボルト(コガタツバツキ)，8X40 |
132BA0840 |
from US $1.27 |
||
|
550
|
550
550AA2518 PIN,COTTER,2.5X18ワリ ピン，2.5X18 |
550AA2518 |
from US $0.79 |
||
|
11053
|
11053
11053-1682 BRACKET,IGNITERブラケツト，イグナイタ |
11053-1682 |
from US $8.71 |
||
|
92015
|
92015
92015-1143 NUT-8MMナツト，8MM |
92015-1143 |
from US $0.99 |
||
|
92015A
|
92015A
92015-1432 NUT,8MMナツト，8MM |
92015-1432 |
from US $3.80 |
||
|
92022
|
92022
92022-107 WASHER,12.5X24X1.2ワツシヤ |
92022-107 |
from US $1.90 |
||
|
92022A
|
92022A
92022-1561 WASHER,8.5X20X1.6ワツシヤ，8.5X20X1.6 |
92022-1561 |
from US $2.69 |
||
|
92066
|
92066
92066-1081 PLUG,HEAD LAMPプラグ |
92066-1081 |
from US $6.34 |
||
|
92122
|
92122
92122-1179 ROLLER,CHAIN GUIDEロ-ラ，チエ-ン ガイド |
92122-1179 |
from US $12.04 |
||
|
92122A
|
92122A
92122-1213 ROLLER,CHAIN GUIDEロ-ラ，チエ-ン ガイド |
92122-1213 |
from US $7.60 |
||
|
92143
|
92143
92143-1432 COLLAR,9.5X12.7X25カラ-，9.5X12.7X25 |
92143-1432 |
from US $4.12 |
||
|
92153
|
92153
92153-0503 BOLT,6X12ボルト，6X12 |
92153-0503 |
from US $1.61 |
||
|
92153A
|
92153A
92153-1095 BOLT,FLANGED,8X110ボルト，フランジ，8X110 |
92153-1095 |
from US $4.75 |
||
|
92171
|
92171
92171-0652 Clampクランプ |
92171-0652 |
from US $1.27 |
||
|
92180
|
92180
92180-1354 shimシム，9X18X0.3 |
92180-1354 |
from US $1.27 |
