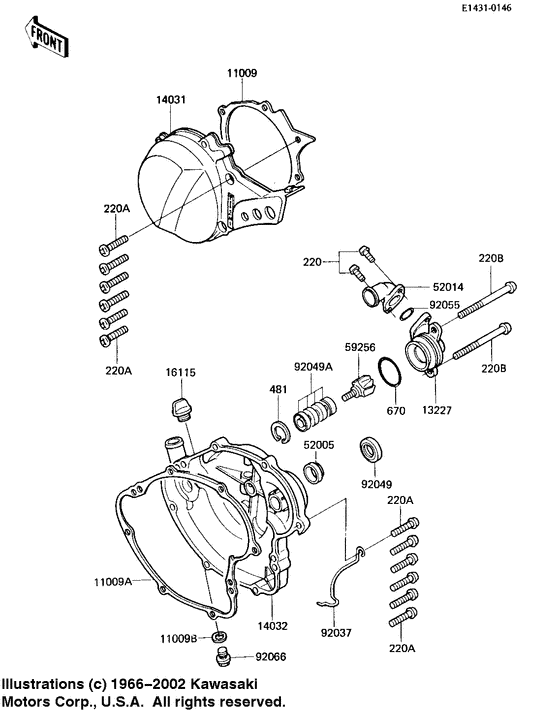

Engine covers/water pump ('84 kx80-e2) Diagram Kawasaki KX80 KX80
- Year
- 1984
- Model code
- KX80-E2
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220C0514
SCREW-PAN-CROSS
Screw-pan-cross,5x14; |
220C0514 |
— | ||
| replacement | |||||
|
220
|
220
220AB0514 SCREW-PAN-CROSSScrew-pan-cross,5x14; |
220AB0514 |
from US $1.25 |
||
|
220A
|
220A
220C0625
SCREW-PAN-CROS,6X25,B
Screw-pan-cros,6x25,b; |
220C0625 |
— | ||
| replacement | |||||
|
220A
|
220A
220AB0625 SCREW-PAN-CROS,6X25,BScrew-pan-cros,6x25,b; |
220AB0625 |
from US $0.94 |
||
|
220B
|
220B
220C0675 SCREW-PAN-CROS |
220C0675 |
US $1.90 |
||
|
481
|
481
481J2000 CIRCLIP,20MMCirclip,20mm; |
481J2000 |
from US $1.27 |
||
|
670
|
670
670B3039 O RING,39MMO ring,39mm; |
670B3039 |
from US $3.80 |
||
|
11009
|
11009
11009-1974 GASKET,GENERATOR COVEGasket,generator cove; |
11009-1974 |
from US $12.83 |
||
|
11009A
|
11009A
11009-1976 GASKET,CLUTCH COVERGasket,clutch cover; |
11009-1976 |
from US $19.32 |
||
|
11009B
|
11009B
92065-058 GASKETGasket check valve; |
92065-058 |
from US $3.37 |
||
|
13227
|
13227
13227-1051
HOUSING,WATER PUMP
Housing,water pump; |
13227-1051 |
— | ||
|
14031
|
14031
14031-1185
Cover-generator
|
14031-1185 |
— | ||
|
14032
|
14032
14032-1156 COVER-CLUTCH |
14032-1156 |
US $243.27 |
||
|
16115
|
16115
16115018 CAP-OIL FILLERFiller,oil; |
16115018 |
from US $7.92 |
||
|
52005
|
52005
52005-1005 GAUGE,OIL LEVELGauge,oil level; |
52005-1005 |
US $12.89 |
||
| replacement | |||||
|
52005
|
52005
52005-0019 GAUGE,OIL LEVELGauge,oil level; |
52005-0019 |
from US $11.16 |
||
|
52014
|
52014
52014-1052
ELBOW,CYLINDER
Elbow,cylinder; |
52014-1052 |
— | ||
|
59256
|
59256
59256-1052
Impeller,Water Pump
Impeller,water pump; |
59256-1052 |
— | ||
|
92037
|
92037
92037-1236 CLAMP |
92037-1236 |
from US $6.97 |
||
|
92049
|
92049
92049-002 OIL SEAL SB16244Oil seal sb16244; |
92049-002 |
from US $5.70 |
||
|
92049A
|
92049A
92049-1156
SEAL-OIL,S8184-1
Seal-oil,s8184-1; |
92049-1156 |
— | ||
|
92055
|
92055
92055-078 O RING,NEWTRAL PST"o" ring,newtral pst; |
92055-078 |
from US $3.80 |
||
|
92066
|
92066
92066-1241 DRAIN PLUG |
92066-1241 |
from US $3.96 |
||
