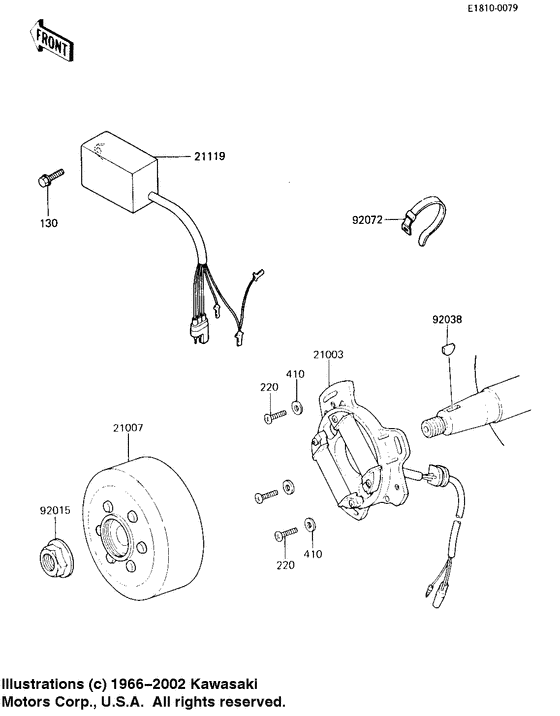

Ignition/generator ('84 kx80-e2) Diagram Kawasaki KX80 KX80
- Year
- 1984
- Model code
- KX80-E2
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0616 BOLT-FLANGED,6X16Bolt-flanged,6x16; |
130G0616 |
from US $0.61 |
||
| replacement | |||||
|
130
|
130
130BA0616 BOLT-FLANGED,6X16Bolt-flanged,6x16; |
130BA0616 |
from US $0.79 |
||
|
220
|
220
220B0514
SCREW-PAN-CROS
|
220B0514 |
— | ||
| replacement | |||||
|
220
|
220
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
410
|
410
410B0500
W-PLAIN-S
Washer plain 5mm; |
410B0500 |
— | ||
| replacement | |||||
|
410
|
410
410AA0500 W-PLAIN-SWasher plain 5mm; |
410AA0500 |
from US $0.78 |
||
|
21003
|
21003
21003-1042 STATOR ASSY |
21003-1042 |
US $347.65 |
||
|
21007
|
21007
21007-1038 FLYWHEEL,MAGNETOFlywheel,magneto; |
21007-1038 |
US $402.34 |
||
|
21119
|
21119
21119-1155 IGNITER |
21119-1155 |
US $370.98 |
||
|
92015
|
92015
92015-1415 NUT,10MMNut,10mm; |
92015-1415 |
from US $3.54 |
||
|
92038
|
92038
92038-001 WOODRUFF KEYWoodruff key; |
92038-001 |
from US $3.73 |
||
|
92072
|
92072
92072-032 BAND,LONGBand,long; |
92072-032 |
from US $3.01 |
||
