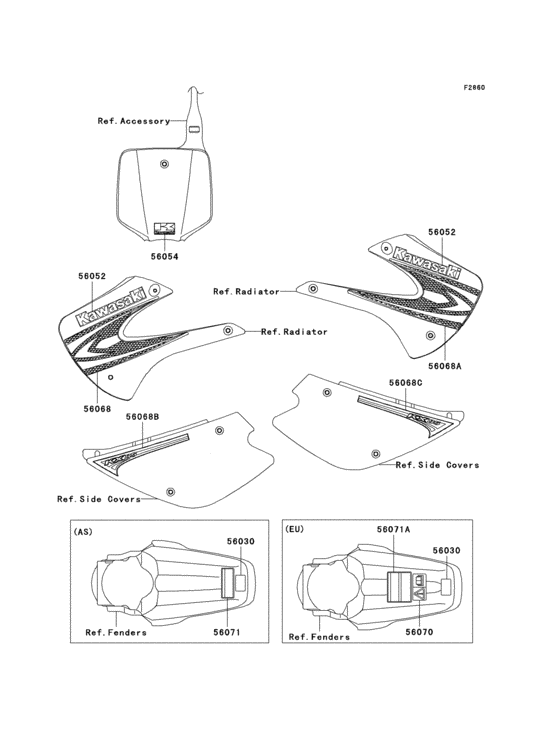

Labels(a8f/b8f) Diagram Kawasaki KX85 KX85-II
- Year
- 2008
- Colour
- Lime Green (777)
- Model code
- KX85B8F
- Sales region
- Australia
- Engine Capacity
- 85
- Model
- KX85-II Big Wheel
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56030
|
56030
56030-1230 LABEL,32:1 |
56030-1230 |
from US $3.64 |
||
|
56052
|
56052
56052-0562 MARK,SHROUD,KAWASAKI |
56052-0562 |
from US $20.79 |
||
|
56054
|
56054
56054-0053 MARK,NUMBER PLATE,K.K |
56054-0053 |
from US $7.76 |
||
|
56068
|
56068
56068-0289 PATTERN,SHROUD,LH |
56068-0289 |
from US $80.93 |
||
|
56068A
|
56068A
56068-0290 PATTERN,SHROUD,RH |
56068-0290 |
from US $80.93 |
||
|
56068B
|
56068B
56068-0294 PATTERN,SIDE COVER,LH |
56068-0294 |
from US $20.94 |
||
|
56068C
|
56068C
56068-0295 PATTERN,SIDE COVER,RH |
56068-0295 |
from US $20.94 |
||
|
56071
|
56071
56071-0028 LABEL-WARNING,IMORTAN |
56071-0028 |
from US $5.62 |
