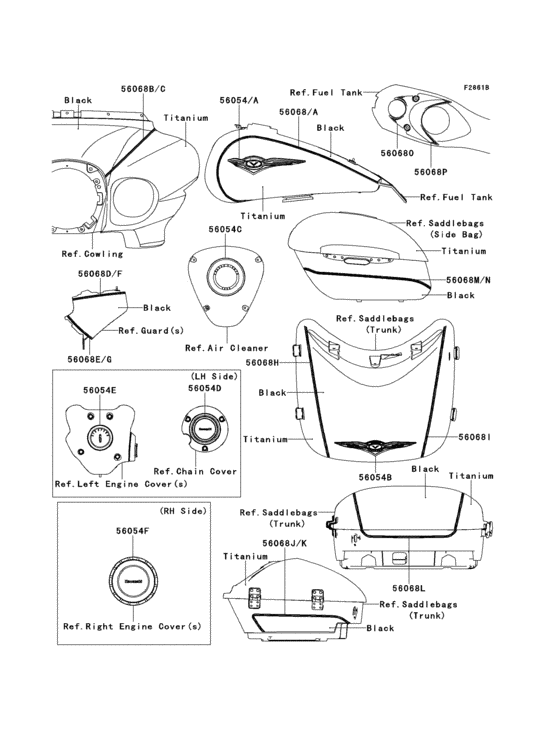

Decals(titanium/black)(a9fa) Diagram Kawasaki VN1700 Vulcan 1700 Voyager
- Year
- 2009
- Colour
- Candy Plasma Blue / Metallic Diablo Black (26P)
- Model code
- VN1700A9FA
- Sales region
- Europe (General)
- Engine Capacity
- 1700
- Model
- Vulcan 1700 Voyager/ VN1700 Voyager
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56054
|
56054
56054-0300 MARK,FUEL TANK,LH |
56054-0300 |
from US $72.78 |
||
|
56054A
|
56054A
56054-0301 MARK,FUEL TANK,RH |
56054-0301 |
from US $72.78 |
||
|
56054B
|
56054B
56054-0302 MARK,REAR TRUNK |
56054-0302 |
from US $95.92 |
||
|
56054C
|
56054C
56054-0303 MARK,AIR CLEANER COVE |
56054-0303 |
from US $43.11 |
||
|
56054D
|
56054D
56054-0304 MARK,PULLEY COVER |
56054-0304 |
from US $34.53 |
||
|
56054E
|
56054E
56054-0305 MARK,GENERATOR COVER |
56054-0305 |
from US $34.53 |
||
|
56054F
|
56054F
56054-0463 MARK,CLUTCH COVER |
56054-0463 |
from US $34.53 |
||
|
56068
|
56068
56068-1552 Pattern,fuel tank,lh |
56068-1552 |
from US $113.28 |
||
|
56068A
|
56068A
56068-1553 Pattern,fuel tank,rh |
56068-1553 |
from US $113.28 |
||
|
56068B
|
56068B
56068-1554 PATTERN,UPP COWLING,F |
56068-1554 |
from US $21.64 |
||
|
56068C
|
56068C
56068-1555 PATTERN,UPP COWLING,F |
56068-1555 |
from US $21.64 |
||
|
56068D
|
56068D
56068-1556 PATTERN,LEG SHIELD,UP |
56068-1556 |
from US $10.83 |
||
|
56068E
|
56068E
56068-1557 PATTERN,LEG SHIELD,LW |
56068-1557 |
from US $10.83 |
||
|
56068F
|
56068F
56068-1558 PATTERN,LEG SHIELD,UP |
56068-1558 |
from US $10.83 |
||
|
56068G
|
56068G
56068-1559 PATTERN,LEG SHIELD,LW |
56068-1559 |
from US $10.83 |
||
|
56068H
|
56068H
56068-1560 PATTERN,REAR TRUNK,UP |
56068-1560 |
US $27.58 |
||
|
56068I
|
56068I
56068-1561 PATTERN,REAR TRUNK,UP |
56068-1561 |
US $27.58 |
||
|
56068J
|
56068J
56068-1562 PATTERN,REAR TRUNK,LW |
56068-1562 |
from US $38.82 |
||
|
56068K
|
56068K
56068-1563 PATTERN,REAR TRUNK,LW |
56068-1563 |
from US $38.82 |
||
|
56068L
|
56068L
56068-1564 PATTERN,REAR TRUNK,LW |
56068-1564 |
from US $25.93 |
||
|
56068M
|
56068M
56068-1565 PATTERN,SIDE BAG,LH |
56068-1565 |
from US $97.04 |
||
|
56068N
|
56068N
56068-1566 PATTERN,SIDE BAG,RH |
56068-1566 |
from US $97.04 |
||
|
56068O
|
56068O
56068-1881 PATTERN,TANK COVER,UP |
56068-1881 |
from US $21.64 |
||
|
56068P
|
56068P
56068-1882 PATTERN,TANK COVER,LW |
56068-1882 |
from US $19.97 |
