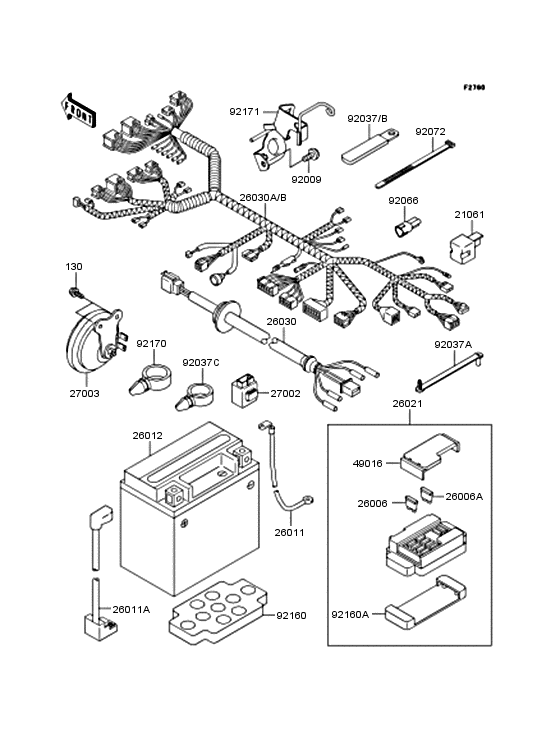

Chassis electrical equipment Diagram Kawasaki VN400 Vulcan Drifter
- Year
- 1999
- Colour
- Sky Blue (Q5)
- Model code
- VN400-D1
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- VN400D 000001 - 003000
- Engine
- VN400AE 000001 -
- Model
- VN400-D Vulcan Drifter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0612
BOLT-FLANGED,6X12
ボルト(ツバツキ) |
130J0612 |
— | ||
| replacement | |||||
|
130
|
130
130BB0612 BOLT-FLANGED,6X12ボルト(ツバツキ) |
130BB0612 |
from US $1.43 |
||
|
21061
|
21061
21061-1003 RECTIFIERレクテイフアイア |
21061-1003 |
from US $23.94 |
||
|
26006
|
26006
26006-1067
FUSE,BLADE,30A,GREEN
ヒユ-ズ，30A-G |
26006-1067 |
— | ||
| replacement | |||||
|
26006
|
26006
26006-1006 FUSE,BLADE,30A,GREENヒユ-ズ，30A-G |
26006-1006 |
from US $2.82 |
||
|
26006A
|
26006A
26006-1068
FUSE,BLADE,10A,RED
ヒユ-ズ，10A-R |
26006-1068 |
— | ||
| replacement | |||||
|
26006A
|
26006A
26006-1007 FUSE,BLADE,10A,REDヒユ-ズ，10A-R |
26006-1007 |
from US $3.33 |
||
|
26011
|
26011
26011-1633 WIRE-LEAD,BATTERY(-)ワイヤ(リ-ド)，バツテリ(-) |
26011-1633 |
from US $20.75 |
||
|
26011A
|
26011A
26011-1701 WIRE-LEAD,BATTERY(+)ワイヤ(リ-ド)，バツテリ(+) |
26011-1701 |
from US $33.51 |
||
|
26012
|
26012
26012-1328
バツテリ，ytx12-bs，12v 10ah
バツテリ，YTX12-BS，12V 10AH |
26012-1328 |
— | ||
| replacement | |||||
|
26012
|
26012
XYYTX12BS
Ytx12-bs
バツテリ，YTX12-BS，12V 10AH |
XYYTX12BS |
— | ||
|
26021
|
26021
26021-1096 JUNCTION BOXジヤンクシヨンボツクス |
26021-1096 |
from US $131.20 |
||
| replacements | |||||
|
26021
|
26021
26021-0061 JUNCTION BOXジヤンクシヨンボツクス |
26021-0061 |
US $118.04 |
||
|
26021
|
26021
26021-0070 Junction Boxジヤンクシヨンボツクス |
26021-0070 |
from US $132.58 |
||
|
26030
|
26030
26030-1635 HARNESS,RRハ-ネス，RR |
26030-1635 |
from US $86.92 |
||
|
26030A
|
26030A
26030-1662 ハ-ネス，メインハ-ネス，メイン |
26030-1662 |
US $316.54 |
||
| replacement | |||||
|
26030A
|
26030A
26030-1722 ハ-ネス，メインハ-ネス，メイン |
26030-1722 |
US $302.02 |
||
|
26030B
|
26030B
26030-1722 ハ-ネス，メインハ-ネス，メイン |
26030-1722 |
US $302.02 |
||
|
27002
|
27002
27002-1101 RELAY-ASSYリレ-アツシ，タ-ン シグナル |
27002-1101 |
from US $55.65 |
||
|
27003
|
27003
27003-1417 HORNホ-ン |
27003-1417 |
from US $58.49 |
||
|
49016
|
49016
49016-1177
COVER-SEAL,FUSE
カバ-(シ-ル)，フユ-ズ |
49016-1177 |
— | ||
|
92009
|
92009
92009-1662 SCREWスクリユ-，6X14 |
92009-1662 |
from US $2.53 |
||
|
92037
|
92037
92037-1069
CLAMP
クランプ，ワイヤリング ハ-ネス，L=60 |
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 Clampクランプ，ワイヤリング ハ-ネス，L=60 |
92171-0652 |
from US $1.27 |
||
|
92037A
|
92037A
92037-1290 Clampクランプ，スピ-ド，L=43 |
92037-1290 |
from US $4.12 |
||
|
92037B
|
92037B
92037-1539 CLAMP,WIRING HARNESSクランプ，L=45 |
92037-1539 |
from US $3.17 |
||
|
92037C
|
92037C
92037-1827 Clamp,Hoseクランプ，ホ-ス |
92037-1827 |
from US $6.21 |
||
|
92066
|
92066
92066-1522 プラグプラグ |
92066-1522 |
US $3.96 |
||
|
92072
|
92072
92072-1197 BANDバンド，L=365 |
92072-1197 |
from US $5.07 |
||
|
92160
|
92160
92160-1635 DAMPER,BATTERYダンパ，バツテリ |
92160-1635 |
from US $19.48 |
||
|
92160A
|
92160A
92160-1650 DAMPER,JUNCTION BOXダンパ，ジヤンクシヨンボツクス |
92160-1650 |
from US $9.03 |
||
|
92170
|
92170
92170-1067 Clamp,Hoseクランプ |
92170-1067 |
from US $5.07 |
||
|
92171
|
92171
92171-1087 CLAMP,HARNESSクランプ，ハ-ネス |
92171-1087 |
from US $15.05 |
||
