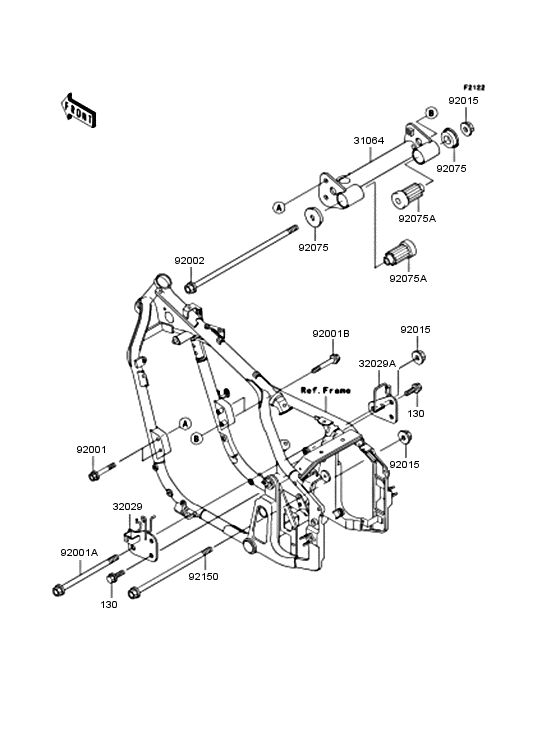

Engine mount Diagram Kawasaki VN400 Vulcan Drifter
- Year
- 2002
- Colour
- Ebony (H8)
- Model code
- VN400-D4
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- VN400D 010001 -
- Engine
- VN400AE 000001 -
- Model
- VN400-D Vulcan Drifter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0816
BOLT-FLANGED
ボルト(ツバツキ)，8X16 |
130J0816 |
— | ||
| replacement | |||||
|
130
|
130
130BB0816 BOLT-FLANGEDボルト(ツバツキ)，8X16 |
130BB0816 |
from US $1.43 |
||
|
31064
|
31064
31064-1175 PIPE-COMP,ENGINE MOUNパイプコンプ，エンジン マウント，FR |
31064-1175 |
from US $121.03 |
||
|
32029
|
32029
32029-1947 BRACKET-ENGINE,RR,UPPブラケツト(エンジン)，RR，UPP，LH |
32029-1947 |
from US $19.48 |
||
|
32029A
|
32029A
32029-1948 BRACKET-ENGINE,RR,UPPブラケツト(エンジン)，RR，UPP，RH |
32029-1948 |
from US $18.53 |
||
|
92001
|
92001
92001-1614 BOLT,FLANGED,8X50ボルト，フランジ，8X50 |
92001-1614 |
from US $4.61 |
||
|
92001A
|
92001A
92001-1620 BOLT,FLANGED,10X155,Bボルト，フランジ，10X155，ブラツク |
92001-1620 |
from US $15.68 |
||
|
92001B
|
92001B
92001-1641 BOLT,FLANGED,8X55,BLAボルト，フランジ，8X55，ブラツク |
92001-1641 |
from US $3.96 |
||
|
92002
|
92002
92002-1206
BOLT,FLANGED,10X285
ボルト，フランジ，10X285 |
92002-1206 |
— | ||
| replacement | |||||
|
92002
|
92002
92153-1909 BOLT,FLANGED,10X285ボルト，フランジ，10X285 |
92153-1909 |
from US $12.04 |
||
|
92015
|
92015
92015-1180 NUT,FLANGED,10MM,BLACナツト，フランジ，10MM |
92015-1180 |
from US $2.69 |
||
|
92075
|
92075
92075-1738 DAMPER,ENGINE BRACKETダンパ，エンジン ブラケツト |
92075-1738 |
from US $14.89 |
||
|
92075A
|
92075A
92075-1739 DAMPER,ENGINE MOUNT,Mダンパ，エンジン マウント，メイン |
92075-1739 |
from US $26.93 |
||
|
92150
|
92150
92150-1899 BOLT,FLANGED,10X205ボルト，フランジ，10X205 |
92150-1899 |
from US $13.15 |
||
