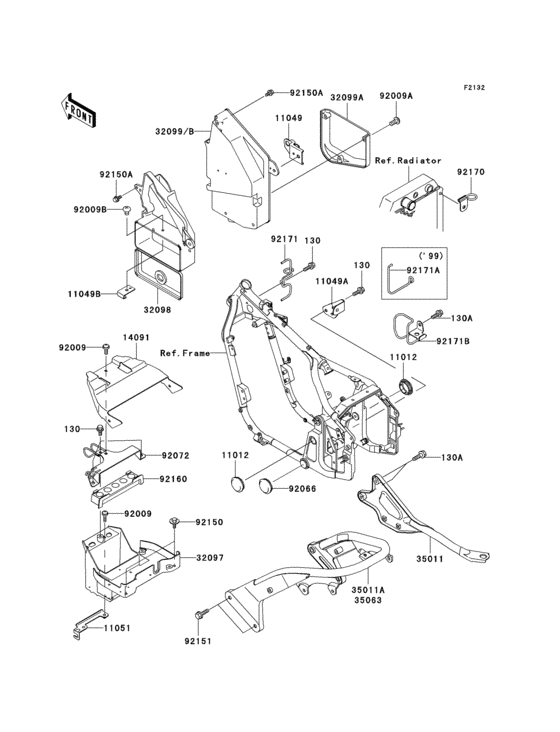

Battery case Diagram Kawasaki VN800 Vulcan 800 Drifter
- Year
- 2000
- Colour
- Pearl Burnish Beige (X8)
- Model code
- VN800-C2
- Sales region
- Europe (General)
- Engine Capacity
- 800
- Model
- Vulcan 800 Drifter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0612
BOLT-FLANGED,6X12
|
130J0612 |
— | ||
| replacement | |||||
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130J0825
BOLT-FLANGED,8X25,BLA
|
130J0825 |
— | ||
| replacements | |||||
|
130A
|
130A
130BB0825 BOLT-FLANGED,8X25,BLA |
130BB0825 |
from US $1.27 |
||
|
130A
|
130A
130CB0825 BOLT-FLANGED |
130CB0825 |
from US $1.96 |
||
|
11012
|
11012
11012-1926 CAP |
11012-1926 |
from US $9.19 |
||
|
11049
|
11049
11049-1183 BRACKET,SIDE COVER LO |
11049-1183 |
US $12.51 |
||
|
11049A
|
11049A
11049-1233 BRACKET,RESERVOIR TAN |
11049-1233 |
from US $8.75 |
||
|
11049B
|
11049B
11049-1266 BRACKET,TOOL CASE LOC |
11049-1266 |
from US $3.96 |
||
|
11051
|
11051
11051-1328 BRACKET,STARTER CABLE |
11051-1328 |
from US $8.87 |
||
|
14091
|
14091
14091-1060 COVER,ELECTRIC |
14091-1060 |
US $17.58 |
||
|
32097
|
32097
32097-1176 CASE-BATTERY |
32097-1176 |
from US $74.65 |
||
| replacement | |||||
|
32097
|
32097
32097-1189 CASE-BATTERY |
32097-1189 |
from US $88.56 |
||
|
32098
|
32098
32098-1106 CASE-TOOL |
32098-1106 |
from US $75.55 |
||
|
32099
|
32099
32099-1163 CASE,BASE |
32099-1163 |
from US $38.45 |
||
|
32099A
|
32099A
32099-1164
CASE
|
32099-1164 |
— | ||
|
35011
|
35011
35011-1972
STAY,MUFFLER
|
35011-1972 |
— | ||
|
35063
|
35063
35063-1084
STAY,SEAT
|
35063-1084 |
— | ||
|
92009
|
92009
92009-1402
SCREW, 6X10
|
92009-1402 |
— | ||
| replacement | |||||
|
92009
|
92009
92172-0005 SCREW, 6X10 |
92172-0005 |
US $2.99 |
||
|
92009A
|
92009A
92009-1635 SCREW,TAPPING,5X14 |
92009-1635 |
from US $2.30 |
||
| replacement | |||||
|
92009A
|
92009A
92172-0006 SCREW,TAPPING,5X14 |
92172-0006 |
from US $1.27 |
||
|
92009B
|
92009B
92009-1653 SCREW |
92009-1653 |
from US $3.37 |
||
|
92066
|
92066
92066-1434 PLUG |
92066-1434 |
from US $9.75 |
||
|
92072
|
92072
92072-1366 BAND,BATTERY |
92072-1366 |
from US $14.26 |
||
|
92150
|
92150
92150-1133 BOLT,6X14 |
92150-1133 |
from US $2.69 |
||
|
92150A
|
92150A
92150-1689 BOLT,FLANGED,6X14 |
92150-1689 |
from US $2.38 |
||
|
92151
|
92151
92151-1442 BOLT,FLANGED,10X30 |
92151-1442 |
US $3.96 |
||
|
92160
|
92160
92160-1634 DAMPER,BATTERY BAND |
92160-1634 |
from US $24.38 |
||
|
92170
|
92170
92170-1608 Clamp, Cable |
92170-1608 |
from US $6.18 |
||
|
92171
|
92171
92171-1074 CLAMP,HARNESS&CABLE |
92171-1074 |
from US $21.09 |
||
|
92171B
|
92171B
92171-1180 CLAMP,BRAKE HOSE |
92171-1180 |
from US $18.69 |
||
