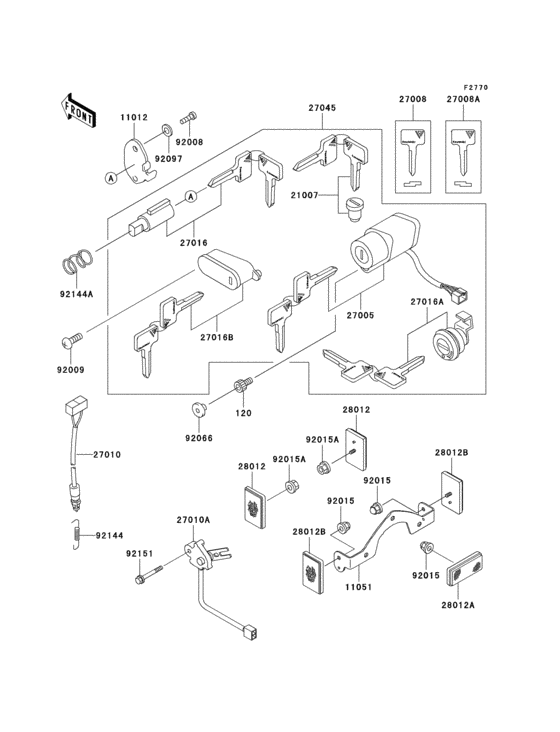

Ignition switch/locks/reflectors Diagram Kawasaki VN800 Vulcan 800 Drifter
- Year
- 2000
- Colour
- Pearl Burnish Beige (X8)
- Model code
- VN800-C2
- Sales region
- Europe (General)
- Engine Capacity
- 800
- Model
- Vulcan 800 Drifter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0512 BOLT-SOCKET,5X12 |
120P0512 |
from US $1.13 |
||
| replacement | |||||
|
120
|
120
120CA0512 BOLT-SOCKET,5X12 |
120CA0512 |
from US $0.63 |
||
|
11012
|
11012
11012-1586 CAP,STEERING LOCK |
11012-1586 |
from US $6.18 |
||
|
11051
|
11051
11051-1100 BRACKET,REFLECTOR |
11051-1100 |
from US $10.27 |
||
|
21007
|
21007
21007-5024 Rotor,lock,tank cap |
21007-5024 |
US $42.64 |
||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
27005
|
27005
27005-1204 SWITCH-ASSY-IGNITION |
27005-1204 |
from US $188.76 |
||
|
27008
|
27008
27008-1138 KEY-LOCK,BLANK |
27008-1138 |
from US $15.36 |
||
|
27008A
|
27008A
27008-1139 KEY-LOCK,BLANK |
27008-1139 |
from US $15.36 |
||
|
27010
|
27010
27010-1389 SWITCH,REAR BRAKE |
27010-1389 |
US $31.07 |
||
| replacement | |||||
|
27010
|
27010
27010-1412 SWITCH,REAR BRAKE |
27010-1412 |
from US $26.33 |
||
|
27010A
|
27010A
27010-1396 SWITCH,SIDE STAND |
27010-1396 |
from US $61.04 |
||
| replacement | |||||
|
27010A
|
27010A
27010-1466 SWITCH,SIDE STAND |
27010-1466 |
US $62.23 |
||
|
27016
|
27016
27016-5131 LOCK-ASSY,STEERING |
27016-5131 |
US $77.27 |
||
| replacement | |||||
|
27016
|
27016
27016-5255 LOCK-ASSY,STEERING |
27016-5255 |
from US $67.17 |
||
|
27016A
|
27016A
27016-5225 LOCK-ASSY,LID |
27016-5225 |
from US $55.65 |
||
|
27016B
|
27016B
27016-5226 Lock-assy helmet |
27016-5226 |
US $49.88 |
||
| replacement | |||||
|
27016B
|
27016B
27016-5311 LOCK-ASSY,HELMET |
27016-5311 |
from US $49.22 |
||
|
27045
|
27045
27045-5040 SWITCH-ASSY |
27045-5040 |
from US $271.52 |
||
| replacement | |||||
|
27045
|
27045
27045-5191
SWITCH-ASSY
|
27045-5191 |
— | ||
|
28012
|
28012
28012-1003 REFLECTOR,REFLEX(FRON |
28012-1003 |
from US $15.68 |
||
|
28012A
|
28012A
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
28012B
|
28012B
28012-1088 Reflector-reflex |
28012-1088 |
from US $17.58 |
||
|
92008
|
92008
92008-007 SCREW-TAPPING |
92008-007 |
from US $3.73 |
||
|
92009
|
92009
92009-1341 SCREW,5X14 |
92009-1341 |
from US $3.73 |
||
|
92015
|
92015
92015-1263 NUT,LOCK 5MM |
92015-1263 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1656 NUT,FLANGED,5MM |
92015-1656 |
from US $2.38 |
||
|
92066
|
92066
92066-1435 PLUG |
92066-1435 |
from US $1.90 |
||
|
92097
|
92097
92097-003 WASHER |
92097-003 |
from US $3.17 |
||
|
92144
|
92144
92144-1141 SPRING,REAR BRAKE SWI |
92144-1141 |
from US $3.33 |
||
|
92144A
|
92144A
92144-1222 SPRING,STEERING LOCK |
92144-1222 |
from US $3.33 |
||
|
92151
|
92151
92151-1576 BOLT,6X45 |
92151-1576 |
from US $1.82 |
||
