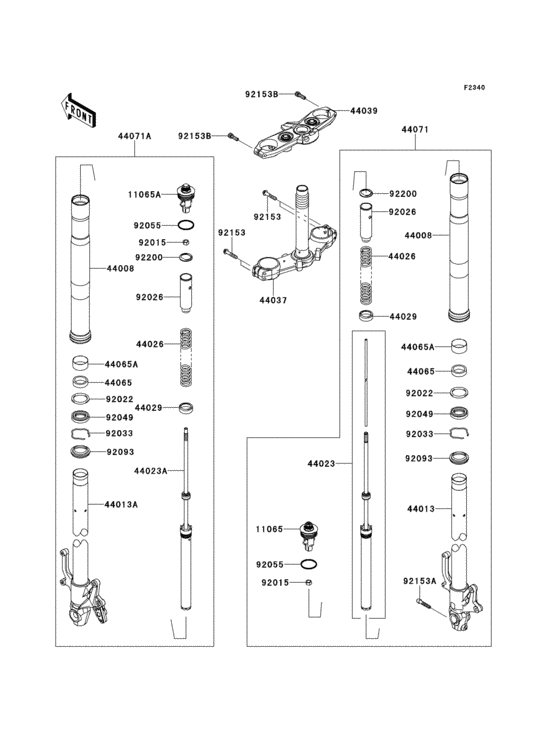

Front fork Diagram Kawasaki ZR800 Z800 ABS
- Year
- 2013
- Colour
- Kmt.candy Flat Blazed Green (35K)
- Model code
- ZR800BDS
- Sales region
- France
- Engine Capacity
- 800
- Model
- Z800 ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44008
|
44008
44008-0062-499 PIPE-FORK OUTER,A.BLAブラツク; フオ-クアウタ |
44008-0062-499 |
from US $331.06 |
||
|
44013
|
44013
44013-0196-18R PIPE-FORK INNER,RH,F.RH，ブラツク; フオ-クインナ |
44013-0196-18R |
from US $410.15 |
||
|
44013A
|
44013A
44013-0217-18R Pipe-fork inner,lh,f.s.black |
44013-0217-18R |
US $431.11 |
||
|
44023
|
44023
44023-0107 CYLINDER-SET-FORK,RHRH; フオ-ク |
44023-0107 |
from US $426.64 |
||
|
44023A
|
44023A
44023-0112 CYLINDER-SET-FORK,LHLH; フオ-ク |
44023-0112 |
from US $377.57 |
||
|
44026
|
44026
44026-0171 SPRING-FRONT FORKフロントフオ-ク |
44026-0171 |
from US $81.06 |
||
|
44029
|
44029
44029-0015 SEAT-FORK SPRINGフオ-クスプリング |
44029-0015 |
from US $9.40 |
||
|
44065
|
44065
44065-0042 BUSHING-FRONT FORKフロントフオ-ク |
44065-0042 |
from US $12.51 |
||
|
44065A
|
44065A
44065-1114 BUSHING-FRONT FORK,IN |
44065-1114 |
from US $15.36 |
||
|
44071A
|
44071A
44071-0893-48C Damper-assy,fork,lh,black |
44071-0893-48C |
US $862.20 |
||
|
92015
|
92015
92015-1795 NUT |
92015-1795 |
from US $3.17 |
||
|
92022
|
92022
92022-1298 WASHER,FORK OUTER TUB |
92022-1298 |
from US $6.57 |
||
|
92026
|
92026
92026-0045 SPACER,FORK |
92026-0045 |
from US $8.24 |
||
|
92033
|
92033
92033-1036 CIRCLIP |
92033-1036 |
from US $3.80 |
||
|
92049
|
92049
92049-0073 SEAL-OIL |
92049-0073 |
from US $15.05 |
||
|
92055
|
92055
92055-1333 ORING,REAR SHOCK |
92055-1333 |
from US $2.85 |
||
|
92093
|
92093
92093-1472 SEAL,FORK OUTER TUBE |
92093-1472 |
from US $15.36 |
||
|
92153
|
92153
92153-0484 BOLT,FLANGED,8X40 |
92153-0484 |
from US $1.43 |
||
|
92153A
|
92153A
92153-0506 BOLT,SOCKET,8X40 |
92153-0506 |
from US $4.44 |
||
|
92153B
|
92153B
92153-1625 BOLT,SOCKET,8X25 |
92153-1625 |
from US $2.69 |
||
|
92200
|
92200
92200-0085 WASHER |
92200-0085 |
from US $4.44 |
