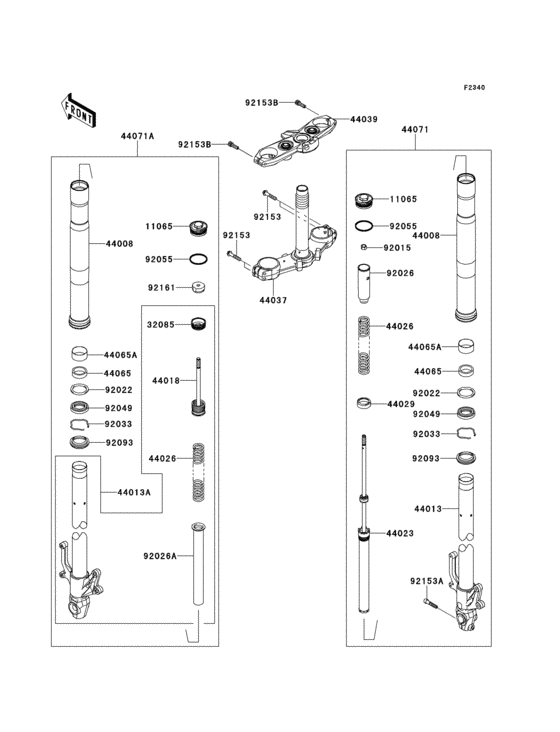

Front fork Diagram Kawasaki ZR800 Z800
- Year
- 2014
- Colour
- Kmt.candy Flat Blazed Green (35K)
- Model code
- ZR800CEF
- Sales region
- Europe (General)
- Engine Capacity
- 800
- Model
- Z800
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32085
|
32085
32085-0742 STOPPER |
32085-0742 |
from US $7.44 |
||
|
44008
|
44008
44008-0062-499 PIPE-FORK OUTER,A.BLAブラツク; フオ-クアウタ |
44008-0062-499 |
from US $331.06 |
||
|
44013
|
44013
44013-0198-18R Pipe-fork inner,rh,f.s.black |
44013-0198-18R |
US $399.37 |
||
|
44013A
|
44013A
44013-0220-18R Pipe-fork inner,lh,f.s.black |
44013-0220-18R |
US $431.11 |
||
|
44018
|
44018
44018-0002 Piston-fork |
44018-0002 |
US $43.86 |
||
|
44023
|
44023
44023-0106 Cylinder-set-fork |
44023-0106 |
US $367.65 |
||
|
44026
|
44026
44026-0170 Spring-front fork |
44026-0170 |
US $72.96 |
||
|
44029
|
44029
44029-0015 SEAT-FORK SPRINGフオ-クスプリング |
44029-0015 |
from US $9.40 |
||
|
44037
|
44037
44037-0066-18R HOLDER-FORK UNDER,BLA |
44037-0066-18R |
from US $553.90 |
||
|
44039
|
44039
44039-0130-18R Holder-fork upper,f.s.black |
44039-0130-18R |
US $279.94 |
||
|
44065
|
44065
44065-0042 BUSHING-FRONT FORKフロントフオ-ク |
44065-0042 |
from US $12.51 |
||
|
44065A
|
44065A
44065-1114 BUSHING-FRONT FORK,IN |
44065-1114 |
from US $15.36 |
||
|
44071
|
44071
44071-0852-30F
Damper-assy,fork,rh,black
|
44071-0852-30F |
— | ||
| replacement | |||||
|
44071
|
44071
44071-1106-30F Damper-Assy,fork,rh,black |
44071-1106-30F |
US $914.46 |
||
|
44071A
|
44071A
44071-0896-30F
Damper-assy,fork,lh,black
|
44071-0896-30F |
— | ||
| replacement | |||||
|
44071A
|
44071A
44071-1105-30F Damper-Assy,fork,lh,black |
44071-1105-30F |
US $914.46 |
||
|
92015
|
92015
92015-1795 NUT |
92015-1795 |
from US $3.17 |
||
|
92022
|
92022
92022-1298 WASHER,FORK OUTER TUB |
92022-1298 |
from US $6.57 |
||
|
92026
|
92026
92026-0736 SPACER |
92026-0736 |
from US $9.35 |
||
|
92026A
|
92026A
92026-0758 Spacer |
92026-0758 |
US $10.89 |
||
|
92033
|
92033
92033-1036 CIRCLIP |
92033-1036 |
from US $3.80 |
||
|
92049
|
92049
92049-0073 SEAL-OIL |
92049-0073 |
from US $15.05 |
||
|
92055
|
92055
92055-0145 RING-O |
92055-0145 |
from US $1.11 |
||
|
92093
|
92093
92093-1472 SEAL,FORK OUTER TUBE |
92093-1472 |
from US $15.36 |
||
|
92153
|
92153
92153-0484 BOLT,FLANGED,8X40 |
92153-0484 |
from US $1.43 |
||
|
92153A
|
92153A
92153-0506 BOLT,SOCKET,8X40 |
92153-0506 |
from US $4.44 |
||
|
92153B
|
92153B
92153-1625 BOLT,SOCKET,8X25 |
92153-1625 |
from US $2.69 |
||
