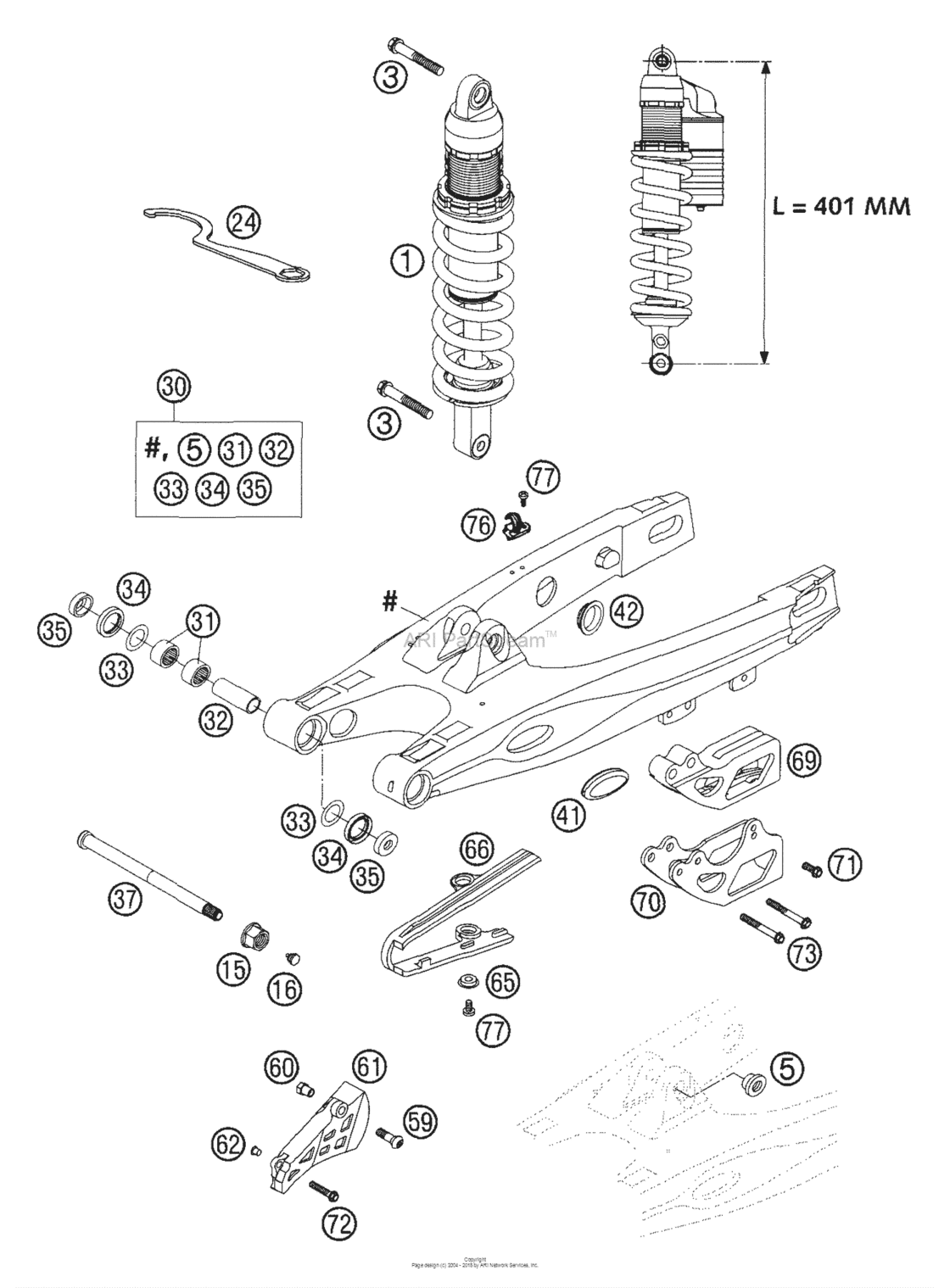

Swingarm, Shock Absorber Diagram KTM 105 105 SX
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 105
- Model
- 105 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1518Y706
Monoshock 4618 pds 85 sx 04
|
1518Y706 |
— | ||
|
3
|
3
0015120556
Hh Collar M12X55 Ws=13 06
|
0015120556 |
— | ||
| replacement | |||||
|
3
|
3
0015120556S Hh Collar M12X55 Ws=13 06 |
0015120556S |
US $4.17 |
||
|
5
|
5
50180105 Threaded Bush M12 Pds |
50180105 |
US $15.90 |
||
|
15
|
15
54603015000 Self locking nut m14x1,5 ws=19 |
54603015000 |
US $4.85 |
||
|
16
|
16
54403135000 Plastic cap sfl10 |
54403135000 |
US $1.31 |
||
|
24
|
24
46012024000 Hook wrench for shock absorber |
46012024000 |
US $20.64 |
||
|
30
|
30
47004030144 Swingarm 85sx cpl. 2004 |
47004030144 |
US $713.97 |
||
|
31
|
31
59004031000 Needle bush hk2012v |
59004031000 |
US $9.88 |
||
|
32
|
32
50203081700 Bushing sleeve 15x20x38,75 |
50203081700 |
US $17.27 |
||
|
33
|
33
54603036000 Stop Disk 22,2X31,7X1 |
54603036000 |
US $1.55 |
||
|
34
|
34
0760253270 Shaft seal ring 25x32x7 |
0760253270 |
US $6.51 |
||
|
35
|
35
54603090000 Bucket f.shaftsealring 15x25x9 |
54603090000 |
US $11.63 |
||
|
37
|
37
47004037000 Swingarm bolt 85 sx 2003 |
47004037000 |
US $57.05 |
||
|
41
|
41
58404041000 Closing cover swingarm sm 03 |
58404041000 |
US $6.85 |
||
|
42
|
42
58404041100 Closing cover round 03 |
58404041100 |
US $0.80 |
||
|
59
|
59
54510052100
Counter-Sunk Screw Isa45 M8X26
|
54510052100 |
— | ||
| replacement | |||||
|
59
|
59
0019080266S Counter-sunk screw isa45 m8x26 |
0019080266S |
US $2.23 |
||
|
60
|
60
47030060051 Threaded bush for chain guard |
47030060051 |
US $2.31 |
||
|
61
|
61
47007061000 Chain guard 85 sx 2003 |
47007061000 |
US $11.97 |
||
|
62
|
62
58314060050
Collar Bushing 6,3X8X13X9,5
|
58314060050 |
— | ||
| replacement | |||||
|
62
|
62
45239060050 Collar bushing 6,3x8x13x9,5 |
45239060050 |
US $5.12 |
||
|
65
|
65
72210079000 Bucket |
72210079000 |
US $2.72 |
||
|
66
|
66
58404066000 Chain sliding guard sm 03 |
58404066000 |
US $11.93 |
||
|
69
|
69
54607066100 Chain Guide Rear '94 |
54607066100 |
US $41.46 |
||
|
70
|
70
54607070144 Retaining plate cpl. |
54607070144 |
US $30.38 |
||
|
71
|
71
0015060163 Hh Collar Screw M 6X16 Ws=8 |
0015060163 |
US $2.23 |
||
|
72
|
72
0015060303
Hh Collar Screw M6X30 Tx30
|
0015060303 |
— | ||
| replacement | |||||
|
72
|
72
0025060306 Hh collar screw m6x30 tx30 |
0025060306 |
US $3.96 |
||
|
73
|
73
0015060503
Hh collar screw m 6x50 ws=8
|
0015060503 |
— | ||
| replacement | |||||
|
73
|
73
0025060506 Hh collar screw m6x50 tx30 |
0025060506 |
US $3.30 |
||
|
76
|
76
54611076100 Retain.clamp For Brake Hose'96 |
54611076100 |
US $1.09 |
||
|
77
|
77
0009050103
Special screw m 5,0x10
|
0009050103 |
— | ||
| replacement | |||||
|
77
|
77
0009050106 Ejot Spiral Screw Sf M5X10-K |
0009050106 |
US $2.60 |
||
