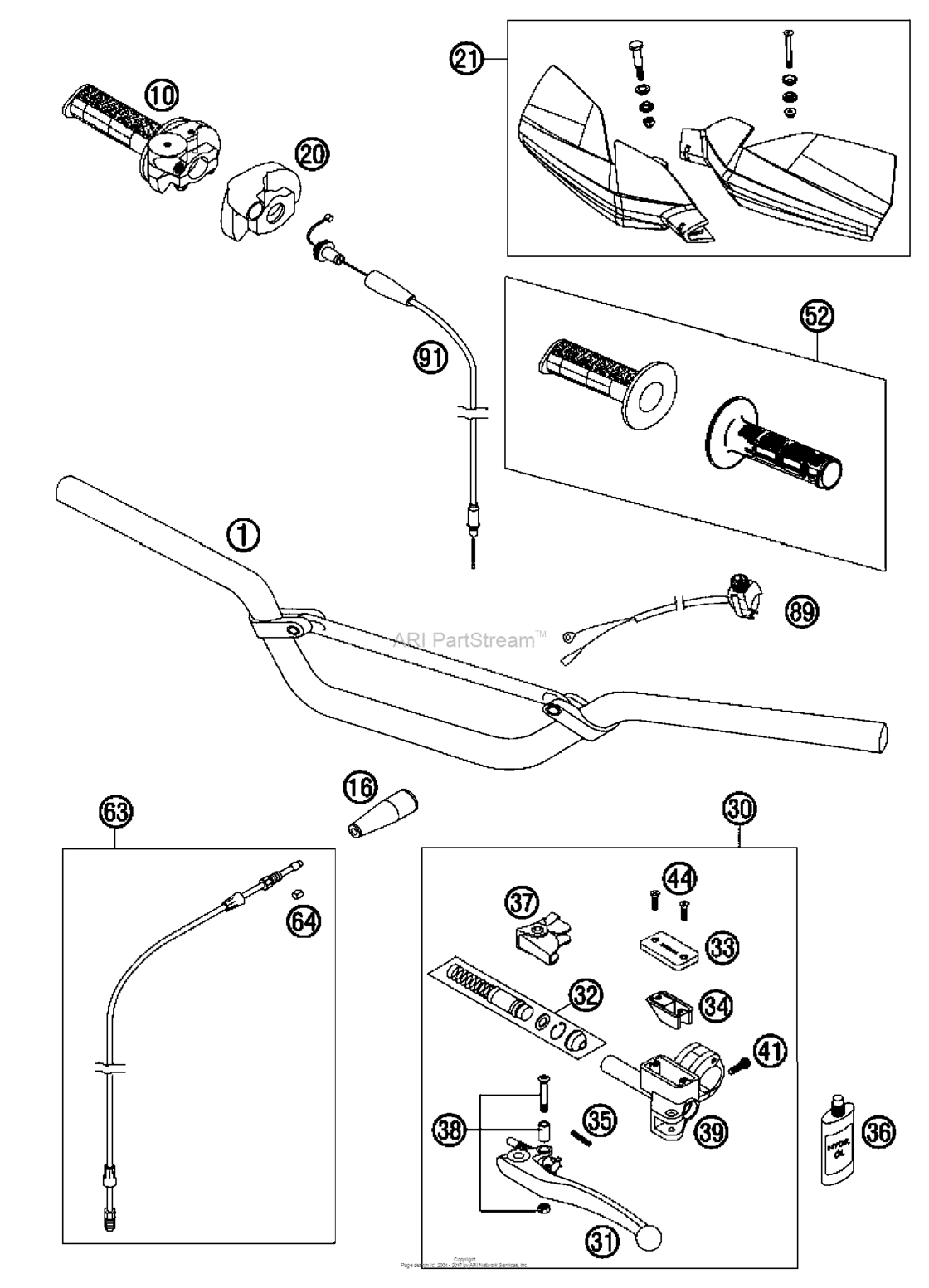

Handlebar, Controls Diagram KTM 105 105 XC
- Year
- 2008
- Sales region
- U.S.A.
- Engine Capacity
- 105
- Model
- 105 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47002001100
Handlebar d=22mm 85 sx 2005
D=22MM 2005 |
47002001100 |
— | ||
| replacement | |||||
|
1
|
1
47002001300 HandlebarD=22MM 2005 |
47002001300 |
US $110.33 |
||
|
10
|
10
50302010000 Throttle Grip Cpl. 2St. 13'97 |
50302010000 |
US $96.36 |
||
| replacement | |||||
|
10
|
10
51502010200 Throttle Grip Cpl. 2St. 13'97 |
51502010200 |
US $67.97 |
||
|
16
|
16
54002016000 Protection cap'97 |
54002016000 |
US $10.71 |
||
|
20
|
20
50302020000 Protection Cover '97'97 |
50302020000 |
US $16.75 |
||
|
21
|
21
4700207900004
Handguards
'97 |
4700207900004 |
— | ||
|
30
|
30
46102030100 Master cylinder cpl. d=9mm 05D=9MM 05 |
46102030100 |
US $291.43 |
||
|
31
|
31
54602031000 Clutch Lever Short Cpl. 20032003 |
54602031000 |
US $42.99 |
||
|
31
|
31
59002031000 Clutch Lever Long Cpl. 20032003;(As required) |
59002031000 |
US $42.99 |
||
|
32
|
32
59002032100 Rep.kit piston 9,0mm rac. 20042004 |
59002032100 |
US $65.01 |
||
|
33
|
33
50302033100 Cover hyd.clutch 2t 20002000 |
50302033100 |
US $24.04 |
||
|
34
|
34
50302034000 Rubber for reservoir '98'98 |
50302034000 |
US $16.18 |
||
|
35
|
35
59002035000 Spring for clutch lever 0303 |
59002035000 |
US $5.46 |
||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 Ml03 |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037000 Protect.cap For Lever Perch'98'98 |
50302037000 |
US $20.74 |
||
|
38
|
38
50302038000 Lever Screw Cpl. 125-200 '98'98 |
50302038000 |
US $20.35 |
||
|
39
|
39
50302030150 Clamp With Pin 20002000 |
50302030150 |
US $34.46 |
||
|
41
|
41
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
44
|
44
0965040123 Flat head screw din0965-m 4x12TX30 |
0965040123 |
US $0.56 |
||
|
52
|
52
50202021000 Gripp Set Half Waffle(As required) |
50202021000 |
US $23.31 |
||
|
63
|
63
46132063000 Pipe kit for hydr.clutch 65 sx(As required) |
46132063000 |
US $52.97 |
||
|
64
|
64
50332063050 Self Cutting Ring Hydr.pipe(As required) |
50332063050 |
US $2.23 |
||
|
89
|
89
50311089200 Short Circuit Button 0202 |
50311089200 |
US $50.97 |
||
|
91
|
91
50302091000
Throttle c. 125-380 dom./keih.
02 |
50302091000 |
— | ||
| replacement | |||||
|
91
|
91
51502091200 Throttle Cable 2-St. 201402 |
51502091200 |
US $39.20 |
||
