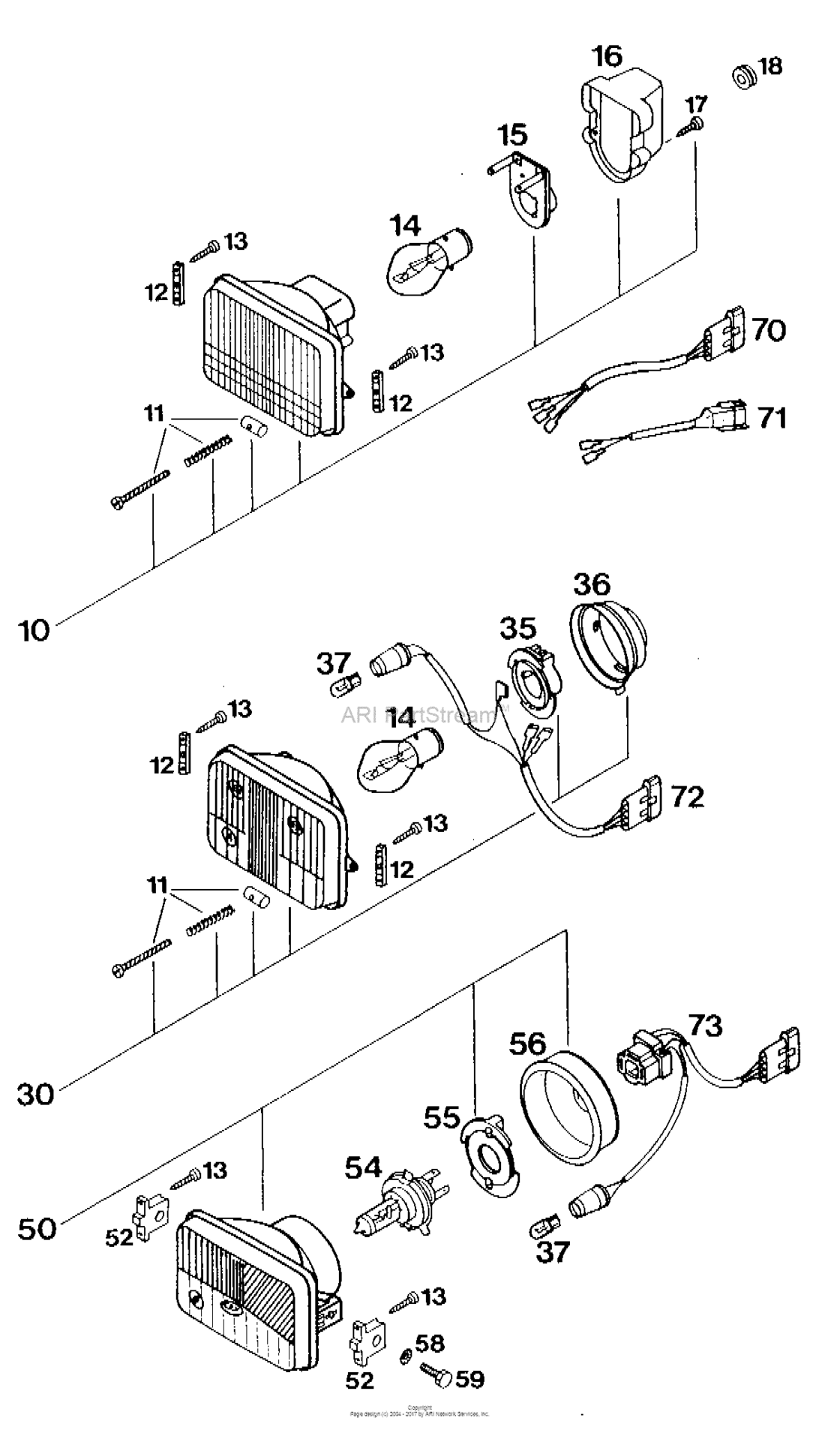

Headlight Diagram KTM 125 125 EGS
- Year
- 1994
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 EGS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1/
|
1/
0981350133 Sheet met.scr.din7981-3,5x13(As Required) |
0981350133 |
US $0.17 |
||
|
10
|
10
50211610000 Headlight Cpl. Elcom '9393 |
50211610000 |
US $66.25 |
||
|
11
|
11
50211631000 Adjusting screw cpl. m4x4093 |
50211631000 |
US $3.96 |
||
|
12
|
12
50211410050 Headlight bracket '9393 |
50211410050 |
US $6.73 |
||
|
13
|
13
0981350193 Sheet met.scr.din7981 3,5x1993 |
0981350193 |
US $0.19 |
||
|
14
|
14
44111038000 Bilux-bulb 12v 35/35w ba20d93 |
44111038000 |
US $16.30 |
||
|
14
|
14
31011038100
Bilux bulb
(As Required) |
31011038100 |
— | ||
|
15
|
15
57011036000 Bulb socket(As Required) |
57011036000 |
US $24.12 |
||
|
16
|
16
50211637000 Cover cap(As Required) |
50211637000 |
US $7.11 |
||
|
18
|
18
31008060000 Rubber Sleeve D=8Mm Open(As Required) |
31008060000 |
US $1.09 |
||
|
30
|
30
50211410000 Headlight Cpl. Cev 322 '9393 |
50211410000 |
US $67.07 |
||
|
35
|
35
50211436000 Bulb socket93 |
50211436000 |
US $22.49 |
||
|
36
|
36
50211437000
Rubber Cap
93 |
50211437000 |
— | ||
|
37
|
37
50211090000
Bulb
(As Required) |
50211090000 |
— | ||
|
37
|
37
49011435000 Bulb 12V 5W (W2,1X9,5D) Phil(As Required) |
49011435000 |
US $4.27 |
||
| replacement | |||||
|
37
|
37
49011435100 Bulb 12V 5W (W2,1X9,5D) Phil(As Required) |
49011435100 |
US $3.81 |
||
|
50
|
50
50211510000 Headlight Cev 394 '9393 |
50211510000 |
US $138.86 |
||
|
52
|
52
50211510050
Headlight Bracket '93
93 |
50211510050 |
— | ||
|
54
|
54
54611038012 Bulb hs1 12v 35/35w white(As Required) |
54611038012 |
US $33.52 |
||
|
54
|
54
57111038000 Bulb h4 12v 60/55w (p43t)(As Required) |
57111038000 |
US $44.46 |
||
|
55
|
55
49011436000
Bulb holder
(As Required) |
49011436000 |
— | ||
|
56
|
56
50211537000 Rubber cap(As Required) |
50211537000 |
US $3.43 |
||
|
58
|
58
0797060003 Tooth Lock Wash. Din6797-A 6,4(As Required) |
0797060003 |
US $0.29 |
||
|
59
|
59
0933060203 Hh screw din0933-m 6x20(As Required) |
0933060203 |
US $0.65 |
||
|
70
|
70
50211610010
Cable for headlight '93
93 |
50211610010 |
— | ||
|
71
|
71
50211610110
Cable for headlight '93
93 |
50211610110 |
— | ||
|
72
|
72
50211410010
Cable F.headlight 125/250/300 Egs
93 |
50211410010 |
— | ||
|
73
|
73
50211510010
Cable for headlight '93
93 |
50211510010 |
— | ||
