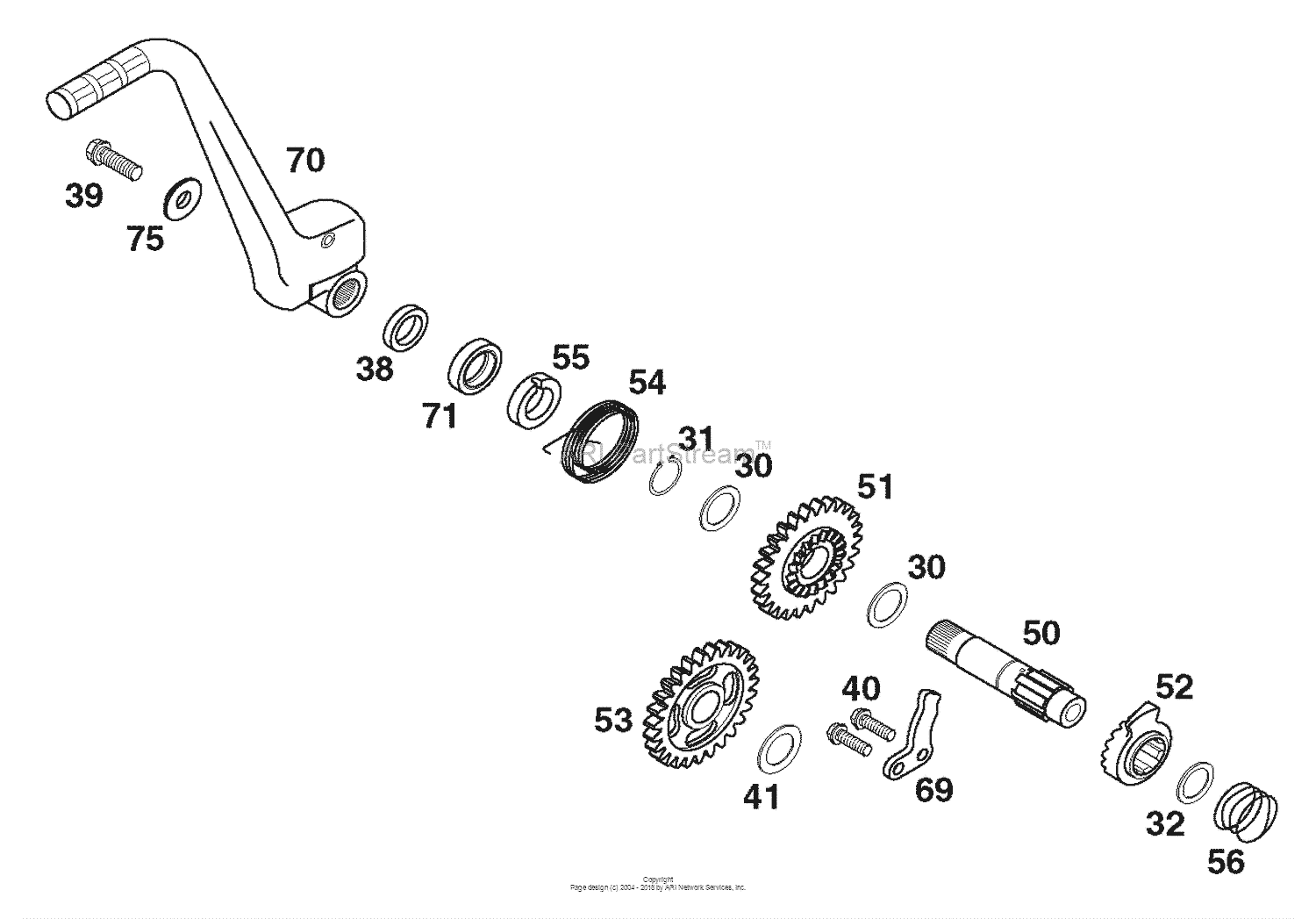

Kickstarter Diagram KTM 125 125 SX
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30
|
30
50333030000 Stop disk 17,2x24x1ONLY FOR 400 EXC RACING |
50333030000 |
US $4.17 |
||
|
31
|
31
0471170010 Circlip Din0471-17X1ONLY FOR 400 EXC RACING |
0471170010 |
US $1 |
||
|
32
|
32
58036057000
Superseded By 0988162210
ONLY FOR 400 EXC RACING |
58036057000 |
— | ||
|
38
|
38
50333038000
Spacer Bushing 16X23X26X6,1
ONLY FOR 400 EXC RACING |
50333038000 |
— | ||
| replacement | |||||
|
38
|
38
50333038100 Spacer bushing 16x23x26x6,1ONLY FOR 400 EXC RACING |
50333038100 |
US $6.82 |
||
|
39
|
39
0015080203 Hh collar screw m 8x20 ws=10ONLY FOR 400 EXC RACING |
0015080203 |
US $1.68 |
||
|
40
|
40
0015060163 Hh Collar Screw M 6X16 Ws=8ONLY FOR 400 EXC RACING |
0015060163 |
US $2.23 |
||
|
41
|
41
50333041000 Stop disc 17,2x26x1 bONLY FOR 400 EXC RACING |
50333041000 |
US $1.94 |
||
|
50
|
50
50333050000 Kickstarter shaft 125/200'98ONLY FOR 400 EXC RACING |
50333050000 |
US $103.16 |
||
|
51
|
51
50333051026 Kickstart.gear 26-t 125/200'98ONLY FOR 400 EXC RACING |
50333051026 |
US $103.90 |
||
|
52
|
52
50333052000 Kickstarter ratchetONLY FOR 400 EXC RACING |
50333052000 |
US $105.25 |
||
|
53
|
53
50333053027 Intermediate Gear 27-T 04ONLY FOR 400 EXC RACING |
50333053027 |
US $125.15 |
||
| replacement | |||||
|
53
|
53
50333053127 Intermediate gear 27-t 04ONLY FOR 400 EXC RACING |
50333053127 |
US $65.54 |
||
|
54
|
54
50333054000 Kickstarter spring 2,6mm '98ONLY FOR 400 EXC RACING |
50333054000 |
US $9.25 |
||
|
55
|
55
50333055000 Driving hub 125/200'98ONLY FOR 400 EXC RACING |
50333055000 |
US $4.79 |
||
|
56
|
56
50333056000 Spring 1,4mm '98ONLY FOR 400 EXC RACING |
50333056000 |
US $2.52 |
||
|
69
|
69
50333069000 Stop met.sheet 4mm 125/200'98ONLY FOR 400 EXC RACING |
50333069000 |
US $16.22 |
||
|
70
|
70
50333070044 Kick Starter CplONLY FOR 400 EXC RACING |
50333070044 |
US $145.69 |
||
| replacement | |||||
|
70
|
70
50333070144 Kick starter cpl.ONLY FOR 400 EXC RACING |
50333070144 |
US $136.34 |
||
|
71
|
71
0760172870 Shaft seal ring 17x28x7 bONLY FOR 400 EXC RACING |
0760172870 |
US $8.81 |
||
|
75
|
75
50333075000 Washer 8,2x22x4,5 '98ONLY FOR 400 EXC RACING |
50333075000 |
US $6.26 |
||
