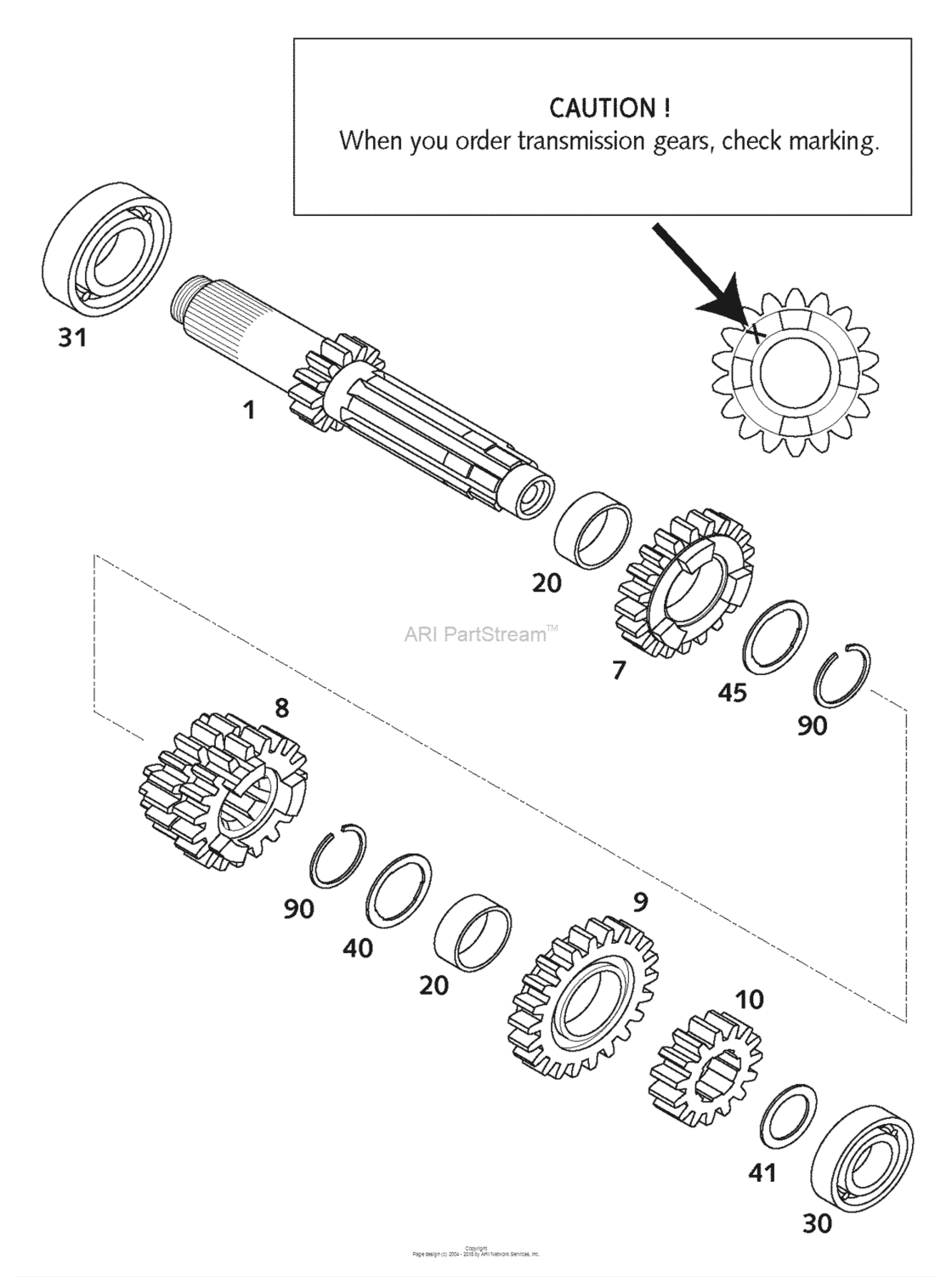

Transmission I Diagram KTM 125 125 EXE
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 EXE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50333001144 Main shaft cpl. 12-t '98ONLY FOR 400 EXC RACING |
50333001144 |
US $186.59 |
||
|
7
|
7
50333007000 Idler g.5th g.21-t "5s21" '98ONLY FOR 400 EXC RACING |
50333007000 |
US $121.50 |
||
|
8
|
8
50333008000 Sliding Gear 3/4.g. 17/19-T 04ONLY FOR 400 EXC RACING |
50333008000 |
US $165 |
||
| replacement | |||||
|
8
|
8
50333008100 Sliding gear 3/4.g. 17/19-t 04ONLY FOR 400 EXC RACING |
50333008100 |
US $139.59 |
||
|
9
|
9
50333009000
Idler g.6th g.22-t "6s22" '98
ONLY FOR 400 EXC RACING |
50333009000 |
— | ||
|
10
|
10
50333010000 Solid gear 2nd gear 15-t '98ONLY FOR 400 EXC RACING |
50333010000 |
US $71.94 |
||
|
20
|
20
50333020000 Idler gear bush. 22x25x11,1 aONLY FOR 400 EXC RACING |
50333020000 |
US $18.43 |
||
|
30
|
30
0625060031 Ball Bearing 6003 Tn9 C4ONLY FOR 400 EXC RACING |
0625060031 |
US $23.63 |
||
|
31
|
31
0625060041 Ball Bearing 6004 Tnh C3ONLY FOR 400 EXC RACING |
0625060041 |
US $26.91 |
||
|
40
|
40
50333040000 Stop disc 22,2x27,8x1 aONLY FOR 400 EXC RACING |
50333040000 |
US $4.39 |
||
|
41
|
41
50333041000 Stop disc 17,2x26x1 bONLY FOR 400 EXC RACING |
50333041000 |
US $1.94 |
||
|
45
|
45
50333045000 Stop disk 22,2x27,8x1ONLY FOR 400 EXC RACING |
50333045000 |
US $4.42 |
||
|
90
|
90
50133090000 Lock ring 22x1,2ONLY FOR 400 EXC RACING |
50133090000 |
US $1.28 |
||
