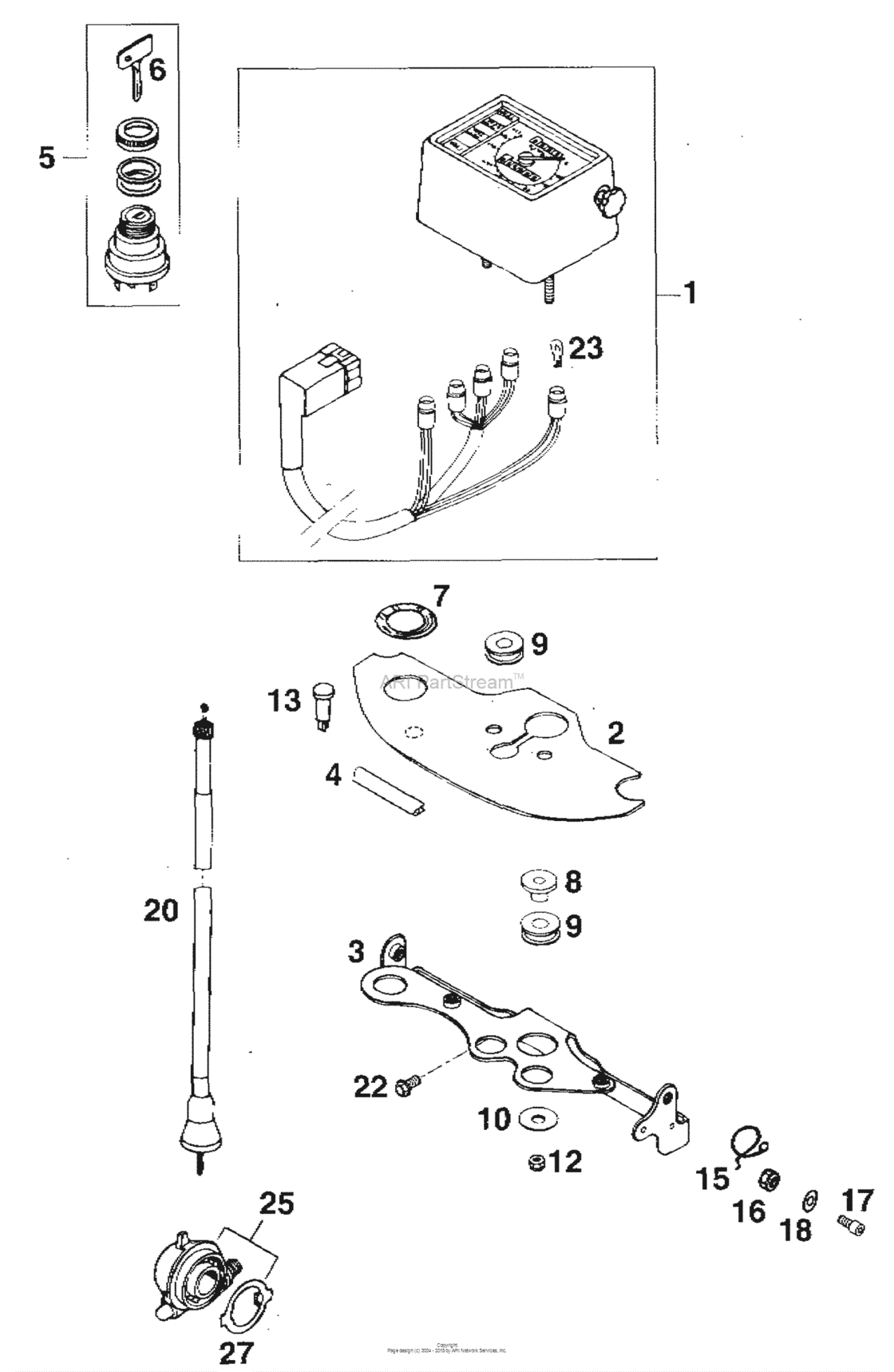

Speedometer Diagram KTM 125 125 LC2
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 LC2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51114065000
Speedometer Kmh
SW=14 |
51114065000 |
— | ||
|
1
|
1
51114065100
Speedometer nippon seiki mph
SW=14 |
51114065100 |
— | ||
|
2
|
2
58311084000 Cover for console '9494 |
58311084000 |
US $8.16 |
||
|
3
|
3
54611120000 Mask Bracket Nippon Seiki '9494 |
54611120000 |
US $51.58 |
||
|
4
|
4
58312085100 Edge protector per meter94 |
58312085100 |
US $22.98 |
||
|
5
|
5
44611466000
Ignition lock 7-p cev
94 |
44611466000 |
— | ||
|
6
|
6
40011166000
Key blank red "o" grip
(As Required) |
40011166000 |
— | ||
|
7
|
7
58111066151
Decal ignition lock
(As Required) |
58111066151 |
— | ||
|
8
|
8
54635036000
Bushing
(As Required) |
54635036000 |
— | ||
|
9
|
9
41001052000 Rubber Sleeve D=12Mm(As Required) |
41001052000 |
US $5.46 |
||
|
10
|
10
0021060003 Washer Din9021-A 6,4(As Required) |
0021060003 |
US $3.26 |
||
|
12
|
12
0985060003 Self Lock. Nut Din0985-M 6(As Required) |
0985060003 |
US $2.60 |
||
|
13
|
13
58011022300 Indicator Lamp Yellow 12V(As Required) |
58011022300 |
US $12.19 |
||
| replacement | |||||
|
13
|
13
58011024100
Indicator lamp yellow 12v.
(As Required) |
58011024100 |
— | ||
|
15
|
15
58011008000 Guide for brake hose(As Required) |
58011008000 |
US $5.03 |
||
|
16
|
16
0985050003 Self Locking Nut Din0985-M 5(As Required) |
0985050003 |
US $3.26 |
||
|
17
|
17
0912050123 Ah screw din0912-m 5x12(As Required) |
0912050123 |
US $0.85 |
||
|
18
|
18
0125050003 Washer Din0125-A 5,3(As Required) |
0125050003 |
US $2.18 |
||
|
20
|
20
56511188600
Speedom.cable m12/m12 945mm
(As Required) |
56511188600 |
— | ||
|
22
|
22
0015060123
Hh Collar Screw M 6X12 Ws=8
SW=8 |
0015060123 |
— | ||
| replacement | |||||
|
22
|
22
0025060126 Hh collar screw m6x12 tx30SW=8 |
0025060126 |
US $3.96 |
||
|
23
|
23
49111425100
Superseded By 49111425000
(As Required) |
49111425100 |
— | ||
|
25
|
25
58111052100
Odometer Drive
92 |
58111052100 |
— | ||
|
27
|
27
58111053100 Driving dog f.speedom.drive'9292 |
58111053100 |
US $6.83 |
||
