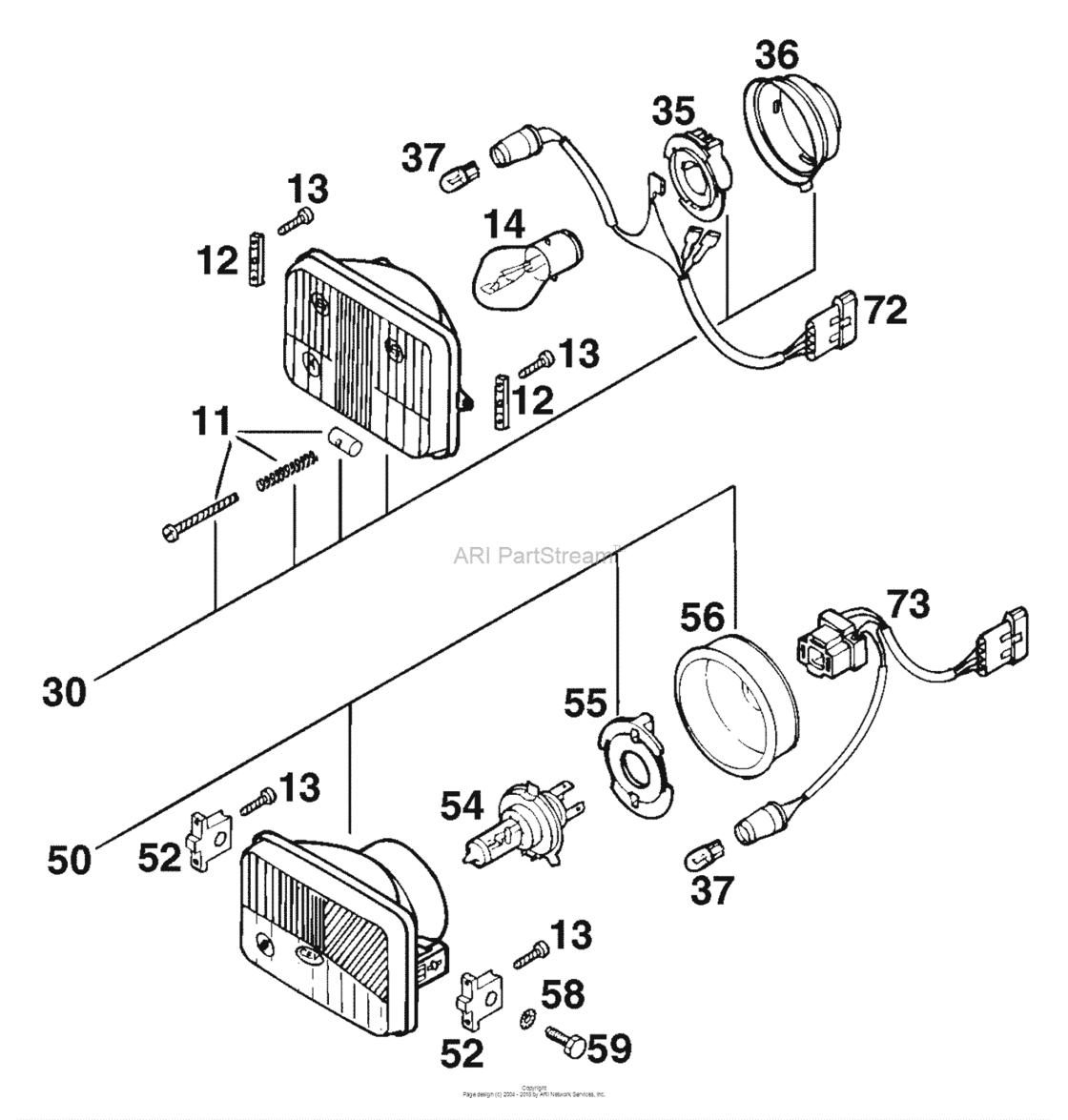

Head Light Diagram KTM 125 125 LC2
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 LC2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11
|
11
50211631000 Adjusting screw cpl. m4x40WS=8 |
50211631000 |
US $3.96 |
||
|
12
|
12
50211410050 Headlight bracket '93WS=8 |
50211410050 |
US $6.73 |
||
|
13
|
13
0016035103 Special screw z 3,5x10WS=8 |
0016035103 |
US $0.56 |
||
|
14
|
14
44111038000 Bilux-bulb 12v 35/35w ba20dWS=8 |
44111038000 |
US $16.30 |
||
|
30
|
30
50211410000 Headlight Cpl. Cev 322 '93WS=8 |
50211410000 |
US $67.07 |
||
|
35
|
35
50211436000 Bulb socketWS=8 |
50211436000 |
US $22.49 |
||
|
36
|
36
50211437000
Rubber Cap
WS=8 |
50211437000 |
— | ||
|
37
|
37
49011435000 Bulb 12V 5W (W2,1X9,5D) PhilWS=8 |
49011435000 |
US $4.27 |
||
| replacement | |||||
|
37
|
37
49011435100 Bulb 12V 5W (W2,1X9,5D) PhilWS=8 |
49011435100 |
US $3.81 |
||
|
50
|
50
50211510000 Headlight Cev 394 '93WS=8 |
50211510000 |
US $138.86 |
||
|
52
|
52
58414010000 Head light support '98WS=8 |
58414010000 |
US $2.28 |
||
|
54
|
54
57111038000 Bulb h4 12v 60/55w (p43t)WS=8 |
57111038000 |
US $44.46 |
||
|
55
|
55
49011436000
Bulb holder
WS=8 |
49011436000 |
— | ||
|
56
|
56
50211537000 Rubber capWS=8 |
50211537000 |
US $3.43 |
||
|
58
|
58
0797060003 Tooth Lock Wash. Din6797-A 6,4WS=8 |
0797060003 |
US $0.29 |
||
|
59
|
59
0933060203 Hh screw din0933-m 6x20WS=8 |
0933060203 |
US $0.65 |
||
|
72
|
72
50211410010
Cable F.headlight 125/250/300 Egs
WS=8 |
50211410010 |
— | ||
|
73
|
73
50211510010
Cable for headlight '93
WS=8 |
50211510010 |
— | ||
