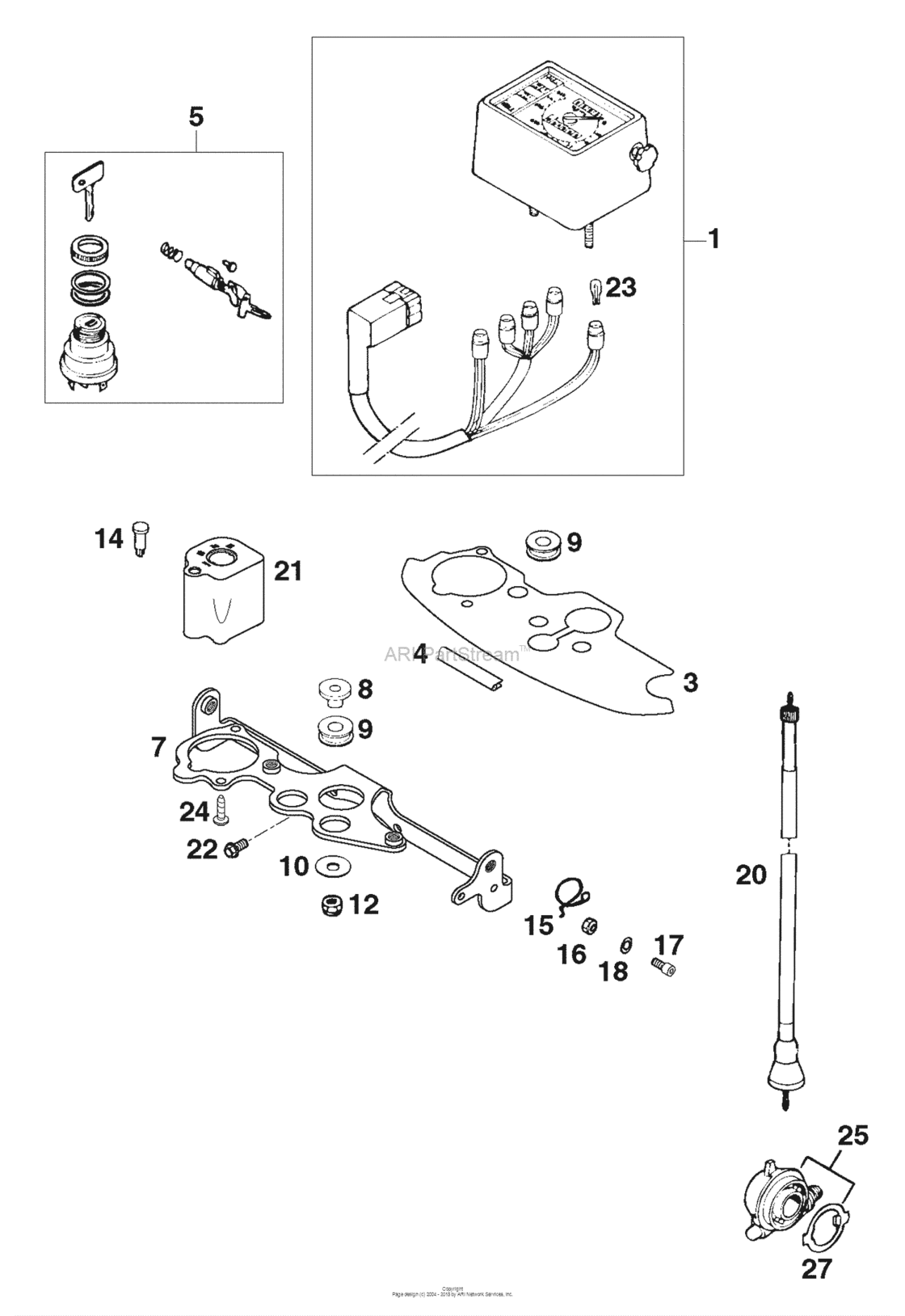

Speedometer Diagram KTM 125 125 LC2
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 LC2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51114065000
Speedometer Kmh
WS=8 |
51114065000 |
— | ||
|
1
|
1
51114065100
Speedometer nippon seiki mph
WS=8 |
51114065100 |
— | ||
|
3
|
3
51111084100 Cover for console '97WS=8 |
51111084100 |
US $8.76 |
||
|
4
|
4
58312085100 Edge protector per meterWS=8 |
58312085100 |
US $22.98 |
||
|
5
|
5
51111065000
Lock Set 125 Lc2
WS=8 |
51111065000 |
— | ||
|
7
|
7
58411003000
Mask bracket '97
WS=8 |
58411003000 |
— | ||
|
8
|
8
54635036000
Bushing
WS=8 |
54635036000 |
— | ||
|
9
|
9
41001052000 Rubber Sleeve D=12MmWS=8 |
41001052000 |
US $5.46 |
||
|
10
|
10
0021060003 Washer Din9021-A 6,4WS=8 |
0021060003 |
US $3.26 |
||
|
12
|
12
0985060003 Self Lock. Nut Din0985-M 6WS=8 |
0985060003 |
US $2.60 |
||
|
14
|
14
58011022300 Indicator Lamp Yellow 12VWS=8 |
58011022300 |
US $12.19 |
||
| replacement | |||||
|
14
|
14
58011024100
Indicator lamp yellow 12v.
WS=8 |
58011024100 |
— | ||
|
15
|
15
58011008000 Guide for brake hoseWS=8 |
58011008000 |
US $5.03 |
||
|
16
|
16
0985050003 Self Locking Nut Din0985-M 5WS=8 |
0985050003 |
US $3.26 |
||
|
17
|
17
0912050123 Ah screw din0912-m 5x12WS=8 |
0912050123 |
US $0.85 |
||
|
18
|
18
0125050003 Washer Din0125-A 5,3WS=8 |
0125050003 |
US $2.18 |
||
|
20
|
20
56511188600
Speedom.cable m12/m12 945mm
WS=8 |
56511188600 |
— | ||
|
21
|
21
58411066050
Housing for ignition lock '97
WS=8 |
58411066050 |
— | ||
|
22
|
22
0015060123
Hh Collar Screw M 6X12 Ws=8
WS=8 |
0015060123 |
— | ||
| replacement | |||||
|
22
|
22
0025060126 Hh collar screw m6x12 tx30WS=8 |
0025060126 |
US $3.96 |
||
|
23
|
23
49111425000 Bulb 12V 2,3W (W2X4,6D)WS=8 |
49111425000 |
US $4.18 |
||
| replacement | |||||
|
23
|
23
49111425200 Bulb 12v 2,3w (w2x4,6d)WS=8 |
49111425200 |
US $1.96 |
||
|
24
|
24
0016060203 Special screw z 6,0x20WS=8 |
0016060203 |
US $1.22 |
||
|
25
|
25
58111052100
Odometer Drive
WS=8 |
58111052100 |
— | ||
|
27
|
27
58111053100 Driving dog f.speedom.drive'92WS=8 |
58111053100 |
US $6.83 |
||
