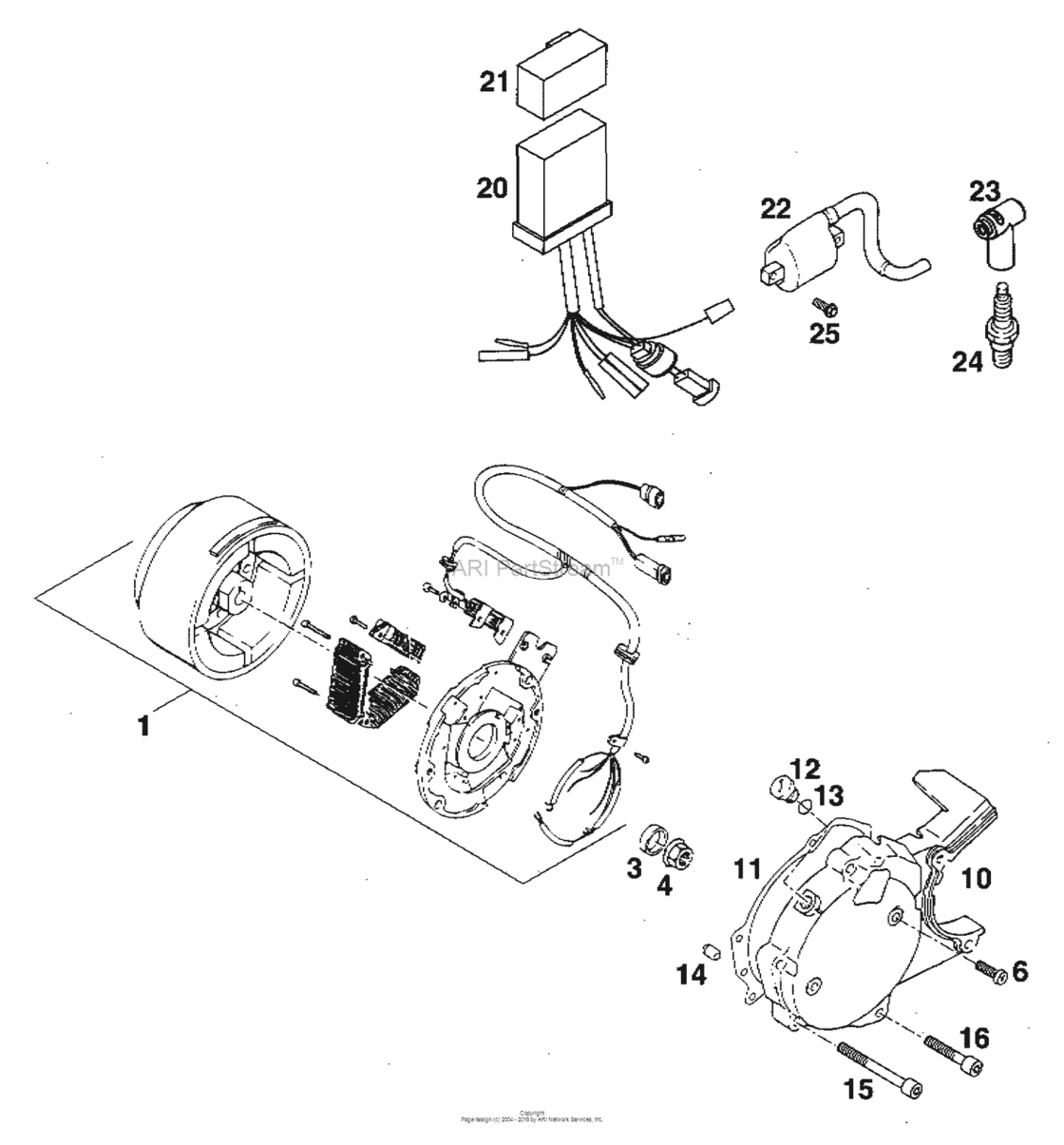

Ignition System Diagram KTM 125 125 LC2
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 LC2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48222279
Ignition System
96 |
48222279 |
— | ||
|
3
|
3
44904440
Bushing
96 |
44904440 |
— | ||
|
4
|
4
44903470
H H Nut
96 |
44903470 |
— | ||
|
6
|
6
44970816
Oval Head Screw
96 |
44970816 |
— | ||
|
10
|
10
42109070
Ignition Cover
96 |
42109070 |
— | ||
|
11
|
11
45308850
Ign.cover Gasket
96 |
45308850 |
— | ||
|
12
|
12
42402680
Plug
96 |
42402680 |
— | ||
|
13
|
13
0770140200 O-ring 14,00x2,0096 |
0770140200 |
US $1.22 |
||
|
14
|
14
45604050
Dowel
96 |
45604050 |
— | ||
|
15
|
15
0912060603 Ah screw din0921-m 6x6096 |
0912060603 |
US $1.94 |
||
|
16
|
16
0912060353 Ah Screw Din0912-M 6X3596 |
0912060353 |
US $2.09 |
||
|
20
|
20
51139031000
Digitalbox Cdi
96 |
51139031000 |
— | ||
|
21
|
21
51139030000
Rubber Bracket
96 |
51139030000 |
— | ||
|
22
|
22
51139006000
Ignition Coil
96 |
51139006000 |
— | ||
|
23
|
23
54531010000 Spark Plug Protect96 |
54531010000 |
US $34.54 |
||
| replacement | |||||
|
23
|
23
47039090000 Spark plug cap ngk reinforc.0496 |
47039090000 |
US $24.26 |
||
|
24
|
24
51139093009
Sparking Plug
96 |
51139093009 |
— | ||
|
25
|
25
0015060163 Hh Collar Screw M 6X16 Ws=8SW=8 |
0015060163 |
US $2.23 |
||
