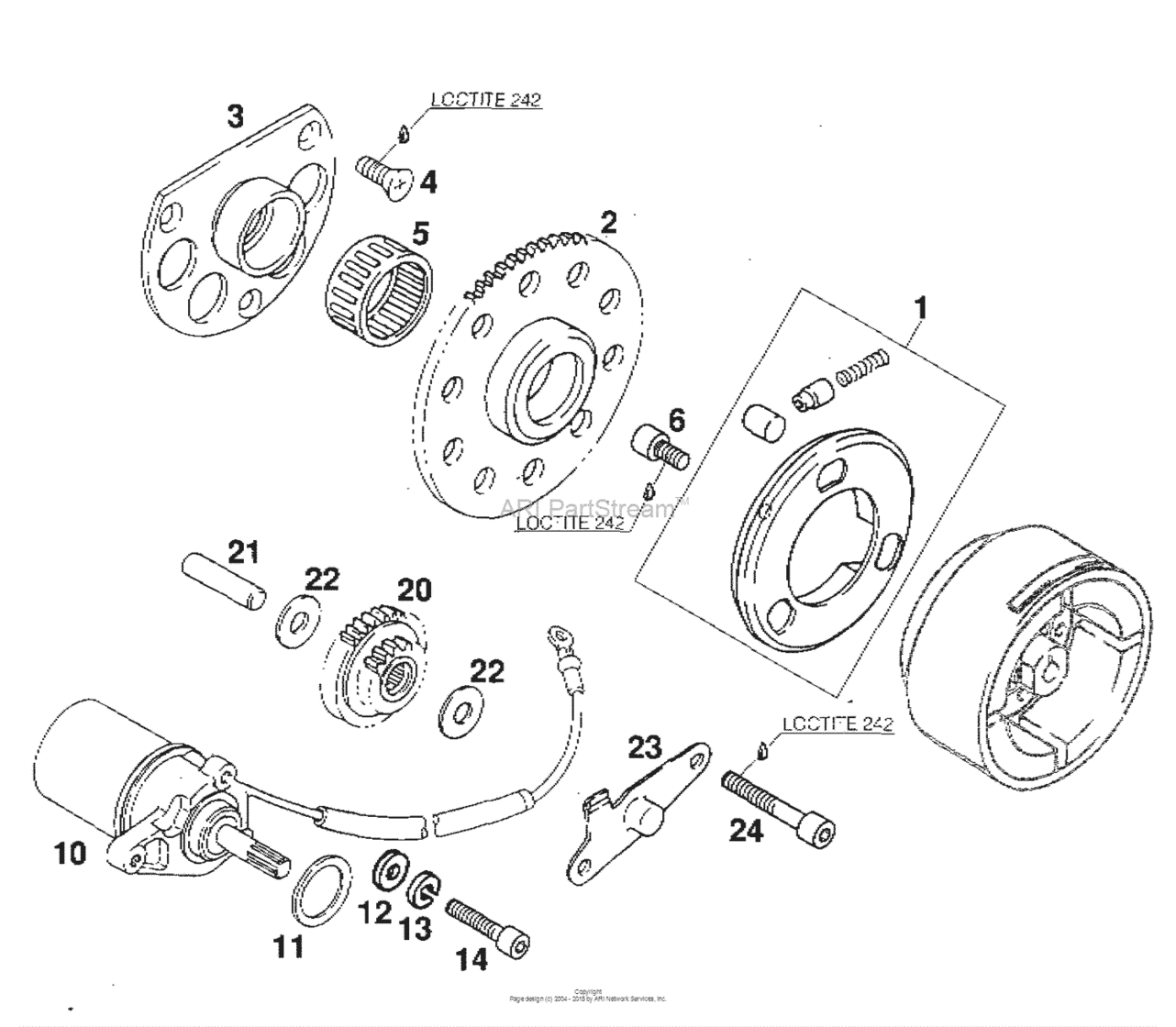

Electric Starter Diagram KTM 125 125 Sting
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 Sting
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44008450
One Way Clutch
97 |
44008450 |
— | ||
|
2
|
2
44005250
Starter Drive Gear
97 |
44005250 |
— | ||
|
3
|
3
42602910
Bearing Support
97 |
42602910 |
— | ||
|
4
|
4
0965060163 Flat head screw din0965-m 6x1697 |
0965060163 |
US $0.75 |
||
|
5
|
5
45103349
Needle Bearing
97 |
45103349 |
— | ||
|
6
|
6
0912060123
Ah screw din0912-m 6x12
97 |
0912060123 |
— | ||
| replacement | |||||
|
6
|
6
0025060126 Hh collar screw m6x12 tx3097 |
0025060126 |
US $3.96 |
||
|
10
|
10
44800069
E-Starter Engine
97 |
44800069 |
— | ||
|
11
|
11
45309950
Washer
97 |
45309950 |
— | ||
|
12
|
12
44906039
Washer
97 |
44906039 |
— | ||
|
13
|
13
44906219
Circlip
97 |
44906219 |
— | ||
|
14
|
14
0912060253 Ah Screw Din0912-M 6X2597 |
0912060253 |
US $1.79 |
||
|
20
|
20
44004790
Double Gear Wheel
97 |
44004790 |
— | ||
|
21
|
21
45603167
Bolt
97 |
45603167 |
— | ||
|
22
|
22
44916096
Washer 8,4X16X0,6
97 |
44916096 |
— | ||
|
23
|
23
42606667
Bearing Plate
97 |
42606667 |
— | ||
|
24
|
24
0912060403
Ah Screw Din0912-M 6X40 A2
97 |
0912060403 |
— | ||
| replacement | |||||
|
24
|
24
0912060404 Ah Screw Din0912-M 6X40 A297 |
0912060404 |
US $1.38 |
||
