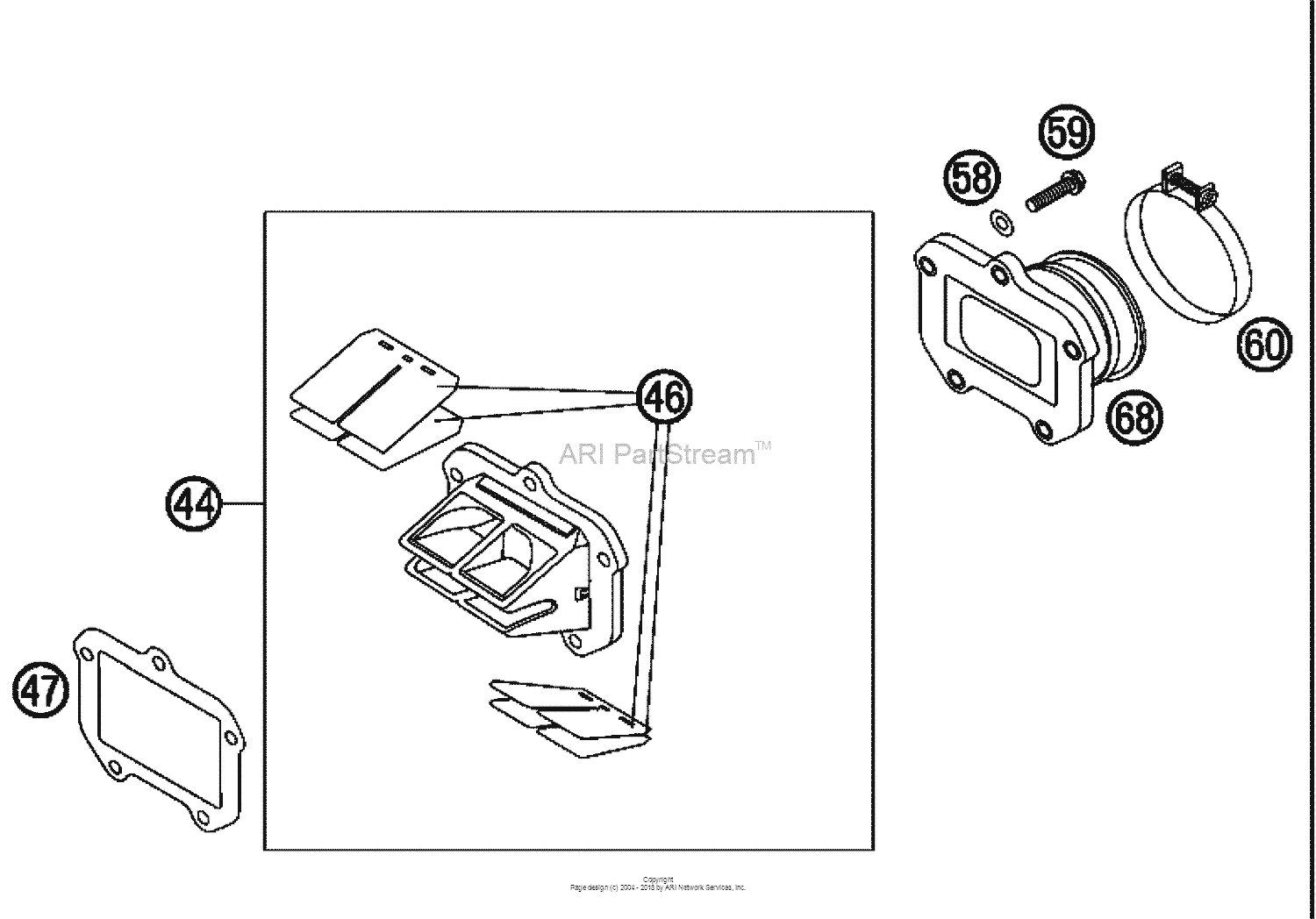

Reed Valve Case Diagram KTM 125 125 SX
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 SX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44
|
44
50330051444 Reed valve assy v-force3 0606 |
50330051444 |
US $250.10 |
||
|
46
|
46
50330052244
Red valve-set v-force 3 06
06 |
50330052244 |
— | ||
| replacement | |||||
|
46
|
46
50330151044 Reed Valve Assy Cpl06 |
50330151044 |
US $147.42 |
||
|
47
|
47
50330098050 Gasket reed v.plate v-force 0404 |
50330098050 |
US $11.41 |
||
|
58
|
58
0137060003 Spring Washer Din0137-B 604 |
0137060003 |
US $0.43 |
||
|
59
|
59
0015060253
Hh Collar Screw M6X25 Tx30
WS=8 |
0015060253 |
— | ||
| replacement | |||||
|
59
|
59
0025060256 Hh collar screw m6x25 tx30WS=8 |
0025060256 |
US $2.45 |
||
|
60
|
60
54330061000 Clamp 52/12 gemiWS=8 |
54330061000 |
US $7.31 |
||
|
68
|
68
50330050200 Intake flange 20002000 |
50330050200 |
US $74.94 |
||
