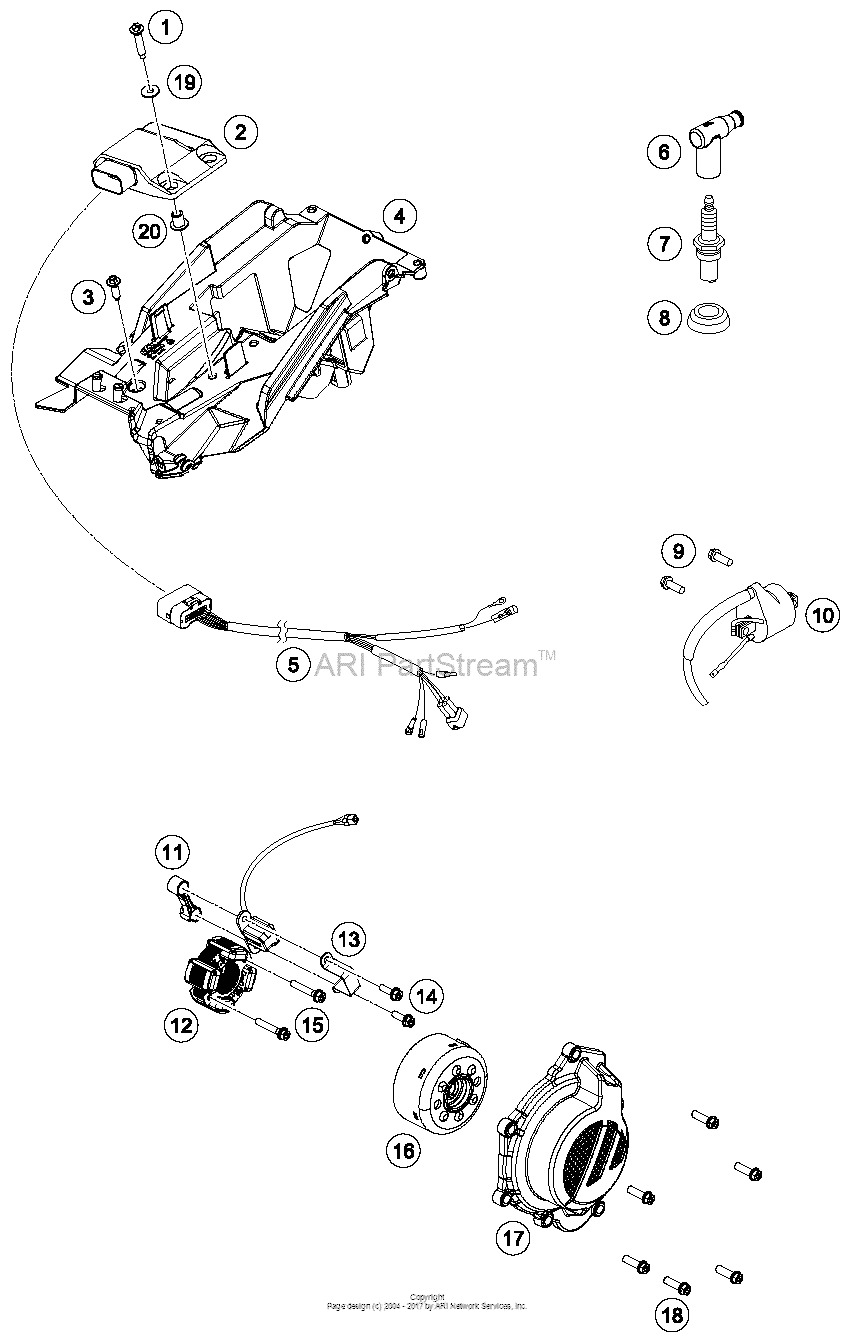

Ignition System Diagram KTM 125 125 SX
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0017060305 Special Screw K60X30 Ws=62003 |
0017060305 |
US $2.24 |
||
|
2
|
2
50439031000 Electronic Box 125 Sx2016 |
50439031000 |
US $296.85 |
||
|
3
|
3
0017060206 Screw F. Plastic K60X20Al Sw62016 |
0017060206 |
US $2.89 |
||
|
4
|
4
79011055000 Battery Box2016 |
79011055000 |
US $27.03 |
||
|
5
|
5
54839032200 Wiring harness for cdi 2-st.072016 |
54839032200 |
US $68.10 |
||
|
6
|
6
47039090000 Spark plug cap ngk reinforc.042016 |
47039090000 |
US $24.26 |
||
|
7
|
7
51539093000 Spark plug br9ecmvx2016 |
51539093000 |
US $20.81 |
||
|
8
|
8
50439091000 Sealing Sleeve2016 |
50439091000 |
US $18.24 |
||
|
9
|
9
0026060186 Collar Screw M6X18 Isa302016 |
0026060186 |
US $0.58 |
||
|
10
|
10
59039006000 Ignitioncoil "ig5128"2016 |
59039006000 |
US $132.38 |
||
|
11
|
11
50439013000 Distance Unit2016 |
50439013000 |
US $5.08 |
||
|
12
|
12
50439004000 Stator2016 |
50439004000 |
US $198.87 |
||
|
13
|
13
50439004010 Pickup Bracket2016 |
50439004010 |
US $3.79 |
||
|
14
|
14
0014050163 Hh collar screw m 5x16 ws=62016 |
0014050163 |
US $1.36 |
||
|
15
|
15
0912050253 Ah screw din0912-m 5x252016 |
0912050253 |
US $0.61 |
||
|
16
|
16
50439005000 Rotor2016 |
50439005000 |
US $180.66 |
||
|
17
|
17
50430002000 Ignition Cover Sx2016 |
50430002000 |
US $30.53 |
||
|
18
|
18
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
19
|
19
0021050003 Washer din9021-a 5,3TX30 |
0021050003 |
US $1.29 |
||
|
20
|
20
60308006000 Collar Bushing 6,2X9,2X15X12,5TX30 |
60308006000 |
US $2.19 |
