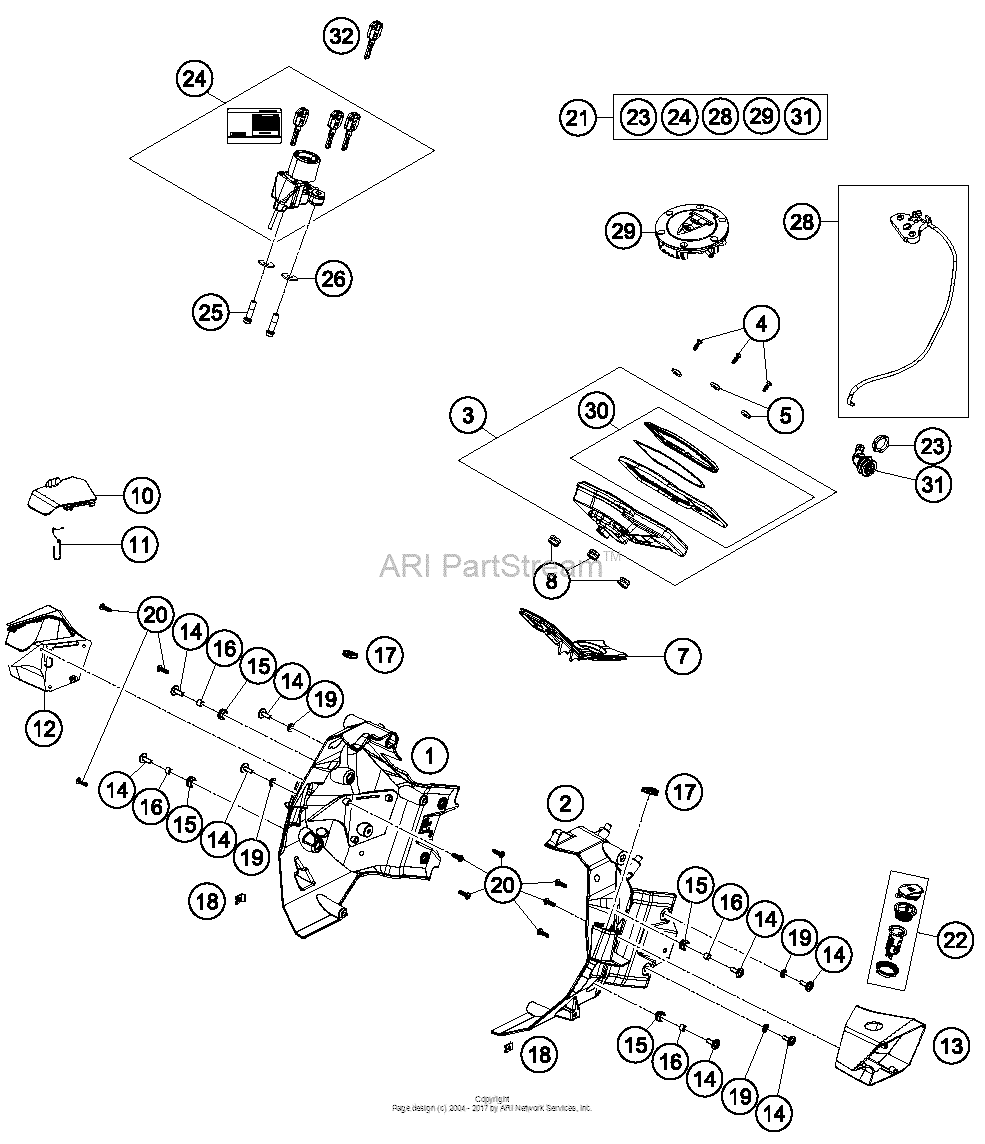

Instruments / Lock System Diagram KTM 1290 1290 Adventure
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 1290
- Model
- 1290 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60414010000 Cockpit Support L/s'03 |
60414010000 |
US $45.58 |
||
|
2
|
2
60414011000 Cockpit Support R/s'03 |
60414011000 |
US $34.92 |
||
|
3
|
3
60414069000 Speedometer'03 |
60414069000 |
US $1,272.98 |
||
|
4
|
4
0081250141 Screw For Plastic Pt K50X14T25'03 |
0081250141 |
US $1.14 |
||
|
5
|
5
60308045000 Special Washer 4.5X16'03 |
60308045000 |
US $6.09 |
||
|
7
|
7
60414012000 Ignition Lock Cap'03 |
60414012000 |
US $11.29 |
||
|
8
|
8
61314069051 Damp. Component Speedometer'03 |
61314069051 |
US $5.07 |
||
|
10
|
10
60314079000 Storage Box Cover'03 |
60314079000 |
US $5.92 |
||
|
11
|
11
60314080000 Storage Box Spring'03 |
60314080000 |
US $2.11 |
||
|
12
|
12
60314078000 Storage Box'03 |
60314078000 |
US $9.04 |
||
| replacement | |||||
|
12
|
12
60314078100 Storage Box'03 |
60314078100 |
US $6.12 |
||
|
13
|
13
60314070000 Cockpit Cover Left'03 |
60314070000 |
US $9.57 |
||
| replacement | |||||
|
13
|
13
60314070100 Cockpit Cover Left'03 |
60314070100 |
US $8.16 |
||
|
14
|
14
69014017000 Special screw m6x18 isa30 08'03 |
69014017000 |
US $3.32 |
||
|
15
|
15
60006001022 Rub.sleeve float chamb.venting'03 |
60006001022 |
US $1.50 |
||
|
16
|
16
69014014000 Bushing 6,1x9,2x7,5 08'03 |
69014014000 |
US $2.60 |
||
|
17
|
17
60308008057 Rubber Sleeve'03 |
60308008057 |
US $8.53 |
||
|
18
|
18
54603048400 Range change met. nut m5 15460'03 |
54603048400 |
US $3.43 |
||
|
19
|
19
69004060050
Bushing chain guard 08
'03 |
69004060050 |
— | ||
| replacement | |||||
|
19
|
19
69004060150 Bushing Chain Guard'03 |
69004060150 |
US $4.06 |
||
|
20
|
20
0081050181 Screw for plastic k50x18 t20'03 |
0081050181 |
US $0.73 |
||
|
21
|
21
60311066244
Lock System Gks Cpl
'03 |
60311066244 |
— | ||
| replacement | |||||
|
21
|
21
60311066344 Lock System Gks Cpl'03 |
60311066344 |
US $713.85 |
||
|
22
|
22
60311042000 Power Socket 12V'03 |
60311042000 |
US $15.62 |
||
|
23
|
23
69007050050 Nut Seat Lock M22X1,5'03 |
69007050050 |
US $10.83 |
||
|
24
|
24
60311066100 Ignition Lock'03 |
60311066100 |
US $762.54 |
||
|
25
|
25
0025080306S Hh collar screw m8x30 tx40TX40 |
0025080306S |
US $3.89 |
||
|
26
|
26
0021080003 Washer din9021-a 8,4TX40 |
0021080003 |
US $2.18 |
||
|
28
|
28
60307050000 Seat Lock CplTX40 |
60307050000 |
US $30.94 |
||
|
29
|
29
60307008100 Tank CapTX40 |
60307008100 |
US $485.61 |
||
|
30
|
30
60314069050 Speedometer Frame CplTX40 |
60314069050 |
US $189.55 |
||
|
31
|
31
60307050020 Lock Cylinder Seat LockTX40 |
60307050020 |
US $156.26 |
||
|
32
|
32
69011067000
Key with transponder
TX40 |
69011067000 |
— | ||
| replacement | |||||
|
32
|
32
60411067000 Ignition Key KtmTX40 |
60411067000 |
US $227.68 |
||
