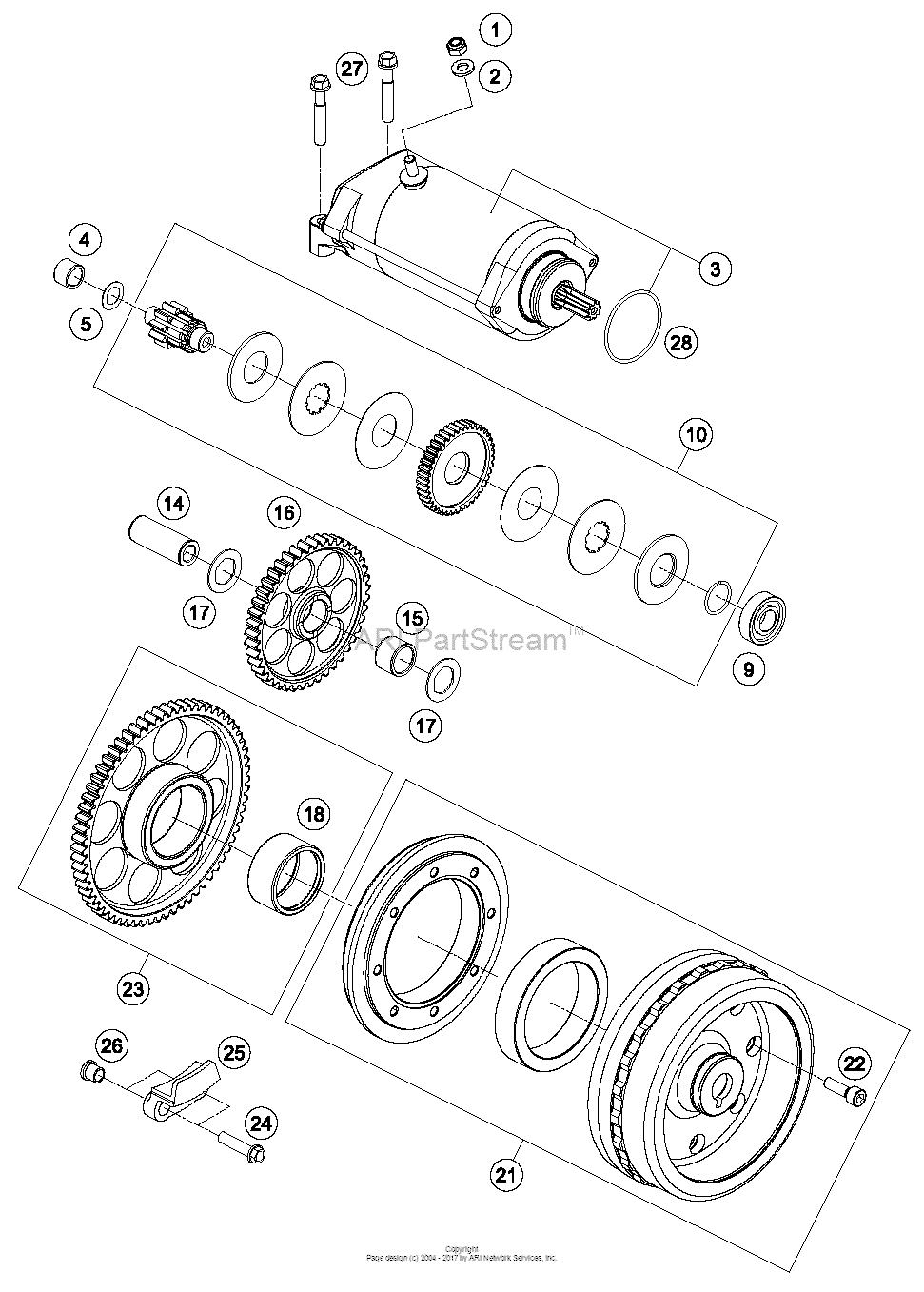

Electric Starter Diagram KTM 1290 1290 Adventure
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 1290
- Model
- 1290 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0985060003 Self Lock. Nut Din0985-M 6TX30 |
0985060003 |
US $2.60 |
||
|
2
|
2
0125060003 Washer Din0125-A 6,4TX30 |
0125060003 |
US $0.37 |
||
|
3
|
3
60440001000 Starter MotorTX30 |
60440001000 |
US $338.73 |
||
|
4
|
4
0618101410 Needle sleeve hk 1010 10/14/10TX30 |
0618101410 |
US $5.92 |
||
|
5
|
5
60038007010 Washer 10x16x0,5 03TX30 |
60038007010 |
US $0.39 |
||
|
9
|
9
0625060016 Groov.ball bear. 6001.2rsr c3TX30 |
0625060016 |
US $23.89 |
||
|
10
|
10
60340017100 Torque Limiter 10/55 CplTX30 |
60340017100 |
US $116.06 |
||
|
14
|
14
61230058050 Bearing bolt 15x39 08TX30 |
61230058050 |
US $10.61 |
||
|
15
|
15
0405151913 Needle bearing k 15x19x13TX30 |
0405151913 |
US $7.28 |
||
|
16
|
16
60340022000 Idler Shaft 43TTX30 |
60340022000 |
US $74.15 |
||
|
17
|
17
61230057060 Stop disk 15,2x25x1TX30 |
61230057060 |
US $2.81 |
||
|
18
|
18
0618354220 Needle bush hk3520 35/42/20TX30 |
0618354220 |
US $14.54 |
||
|
21
|
21
60439005000 Rotor CplTX30 |
60439005000 |
US $601.68 |
||
|
22
|
22
0912060206 Ah Screw Din 912 M6X20TX30 |
0912060206 |
US $0.65 |
||
|
23
|
23
60340020000 Freewheel Gear CplTX30 |
60340020000 |
US $123.96 |
||
|
24
|
24
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
25
|
25
60040027000 Freewheel holder 03TX30 |
60040027000 |
US $4.79 |
||
|
26
|
26
60040027050 Supporting sleeve 03TX30 |
60040027050 |
US $6.41 |
||
|
27
|
27
0025060300 Hh Collar Screw M6X30 InoxTX30 |
0025060300 |
US $1.92 |
||
|
28
|
28
0770033020 O-ring 33,75x2,00TX30 |
0770033020 |
US $7.62 |
