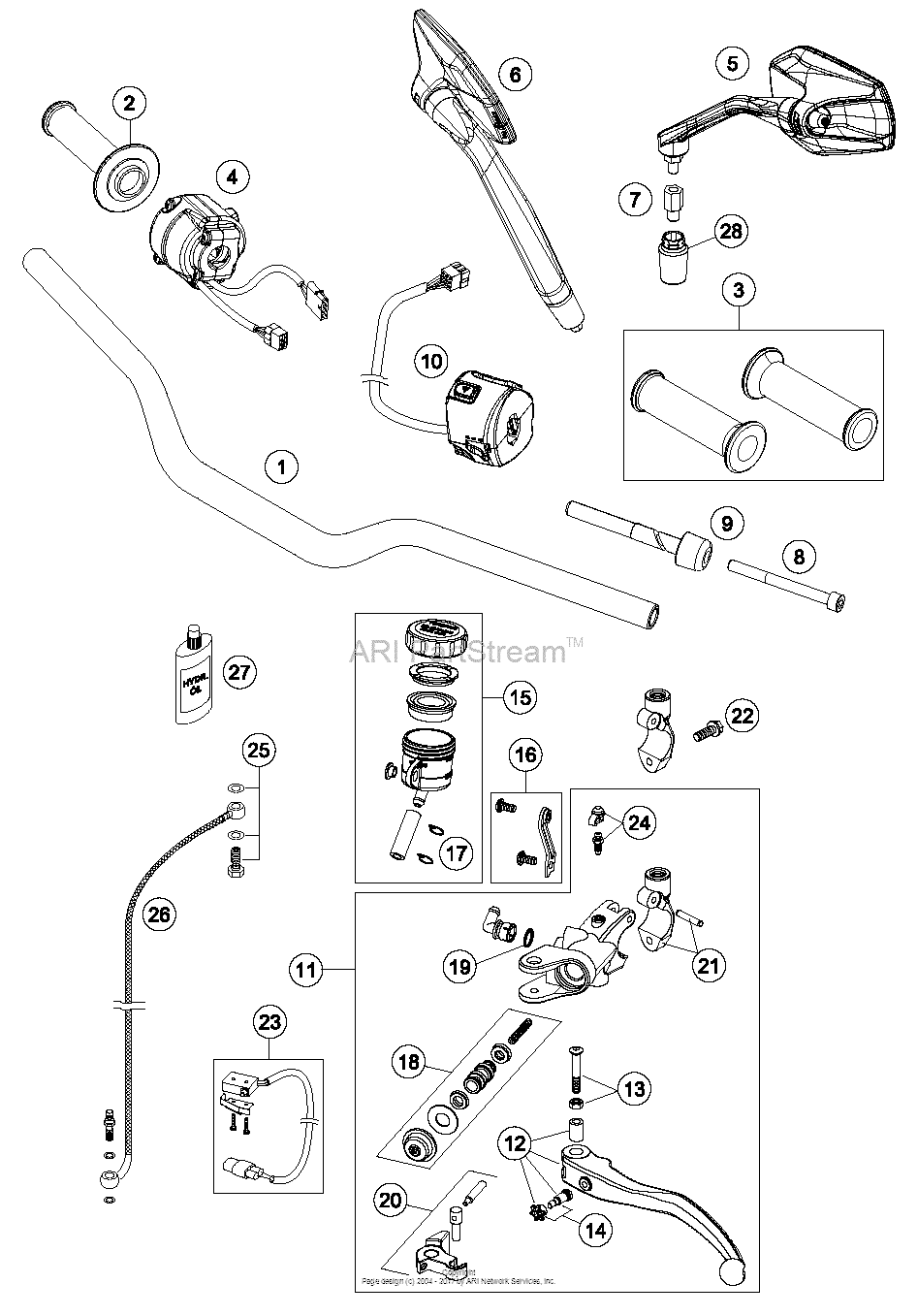

Handlebar, Controls Diagram KTM 1290 1290 SD-R
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 1290
- Model
- 1290 SD-R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6130200100017 Handlebar L=743Mm D=28,5MmTX30 |
6130200100017 |
US $144.50 |
||
|
2
|
2
76002010000 Throttle GripTX30 |
76002010000 |
US $31.64 |
||
|
3
|
3
76002021000 Grip Set Open EndTX30 |
76002021000 |
US $48.77 |
||
|
4
|
4
76011073100 Start-Stop/e-GasTX30 |
76011073100 |
US $519.28 |
||
|
5
|
5
61312040000
Mirror Left Cpl
TX30 |
61312040000 |
— | ||
| replacement | |||||
|
5
|
5
61312040200 Mirror Left CplTX30 |
61312040200 |
US $96.59 |
||
|
6
|
6
61312041000
Mirror Right Cpl
TX30 |
61312041000 |
— | ||
| replacement | |||||
|
6
|
6
61312041200 Mirror Right CplTX30 |
61312041200 |
US $83.83 |
||
|
7
|
7
61312040050 Adaptor For MirrorTX30 |
61312040050 |
US $15.35 |
||
|
8
|
8
0912060653 Ah Screw Din0912-M 6X65TX30 |
0912060653 |
US $1.84 |
||
|
9
|
9
61002004000 Vibrations absorber 05TX30 |
61002004000 |
US $35.72 |
||
|
10
|
10
60311070100 Handlebar SwitchTX30 |
60311070100 |
US $780.67 |
||
|
11
|
11
6130203000030 Master Cylinder CplTX30 |
6130203000030 |
US $547.43 |
||
|
12
|
12
6130203100030 Clutch Lever CplTX30 |
6130203100030 |
US $97.95 |
||
|
13
|
13
61302038000 Lever Screw CplTX30 |
61302038000 |
US $18.62 |
||
|
14
|
14
61002043000 Adjusting screw cpl.TX30 |
61002043000 |
US $17.32 |
||
|
15
|
15
61002055000 Reservoir cpl. 05TX30 |
61002055000 |
US $59.79 |
||
|
16
|
16
61302055050 Retaining Plate ReservoirTX30 |
61302055050 |
US $52.26 |
||
|
17
|
17
58007117000 Ydnac-clamp 10107 10mmTX30 |
58007117000 |
US $2.16 |
||
|
18
|
18
61302032000 Rep. Kit Piston D=12MmTX30 |
61302032000 |
US $94.11 |
||
|
19
|
19
61002051000 O-ring angle pieceTX30 |
61002051000 |
US $1.11 |
||
|
20
|
20
61002056000 Rocker cpl. 05TX30 |
61002056000 |
US $36.31 |
||
|
21
|
21
6130204400030 Clamp Mirror W. Tension PinTX30 |
6130204400030 |
US $48.21 |
||
|
22
|
22
0025060126 Hh collar screw m6x12 tx30TX30 |
0025060126 |
US $3.96 |
||
|
23
|
23
61011049000 Clutch switch 05TX30 |
61011049000 |
US $79.03 |
||
|
24
|
24
61002054000 Bleeder screw with capTX30 |
61002054000 |
US $24.34 |
||
|
25
|
25
59032062000 Hollow Screw + Copper GasketTX30 |
59032062000 |
US $25.42 |
||
|
26
|
26
61032063000 Clutch pipe 05TX30 |
61032063000 |
US $85.27 |
||
|
27
|
27
50302036200 Oil For Hyd. Clutch 100 MlTX30 |
50302036200 |
US $19.23 |
||
|
28
|
28
61312040030 Rubber SleeveTX30 |
61312040030 |
US $6.75 |
||
