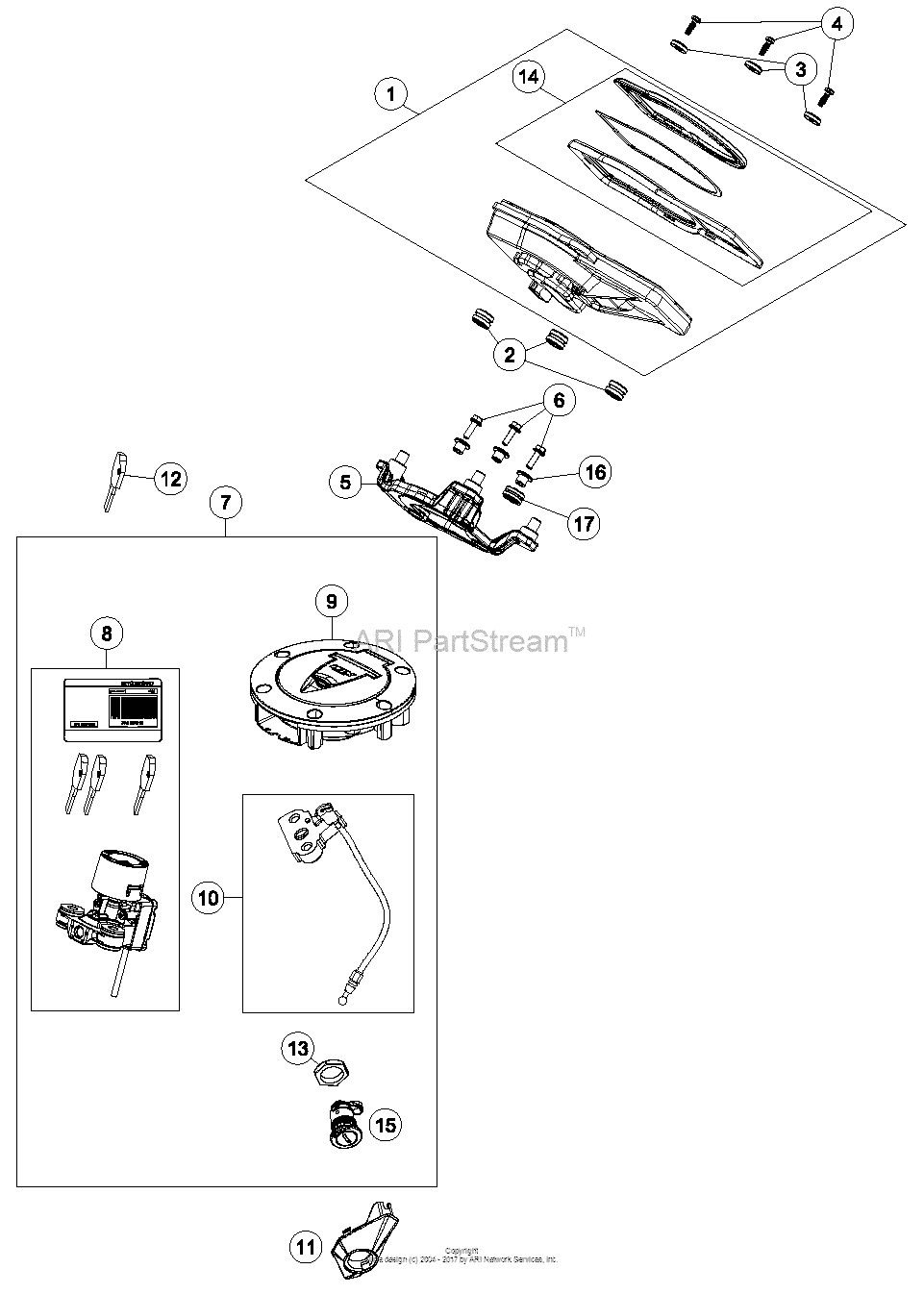

Instruments; Lock System Diagram KTM 1290 1290 SD-R
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 1290
- Model
- 1290 SD-R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60314069000
Speedometer
TX30 |
60314069000 |
— | ||
| replacement | |||||
|
1
|
1
60414069000 SpeedometerTX30 |
60414069000 |
US $1,272.98 |
||
|
2
|
2
61314069051 Damp. Component SpeedometerTX30 |
61314069051 |
US $5.07 |
||
|
3
|
3
60308045000 Special Washer 4.5X16TX30 |
60308045000 |
US $6.09 |
||
|
4
|
4
0081250141 Screw For Plastic Pt K50X14T25TX30 |
0081250141 |
US $1.14 |
||
|
5
|
5
61314062100 Instruments BracketTX30 |
61314062100 |
US $12.67 |
||
|
6
|
6
0025050206 Hh collar screw m5x20 tx30TX30 |
0025050206 |
US $1.33 |
||
|
7
|
7
61311066144
Lock Kit
TX30 |
61311066144 |
— | ||
| replacement | |||||
|
7
|
7
61311066244 Lock KitTX30 |
61311066244 |
US $636.23 |
||
|
8
|
8
61311066100 Ignition LockTX30 |
61311066100 |
US $991.02 |
||
|
9
|
9
61307008100 Tank Cap CplTX30 |
61307008100 |
US $467.47 |
||
|
10
|
10
61307050000 Seat Lock Mechanism CplTX30 |
61307050000 |
US $31.65 |
||
|
11
|
11
61307055000 Sopport Seat LockTX30 |
61307055000 |
US $6.48 |
||
|
12
|
12
69011067000
Key with transponder
TX30 |
69011067000 |
— | ||
| replacement | |||||
|
12
|
12
60411067000 Ignition Key KtmTX30 |
60411067000 |
US $227.68 |
||
|
13
|
13
69007050050 Nut Seat Lock M22X1,5TX30 |
69007050050 |
US $10.83 |
||
|
14
|
14
60314069050 Speedometer Frame CplTX30 |
60314069050 |
US $189.55 |
||
|
15
|
15
61307050020 Lock Cylinder Seat LockTX30 |
61307050020 |
US $156.26 |
||
|
16
|
16
61314062050 Bushing 5.5X9X15X9.5TX30 |
61314062050 |
US $5.03 |
||
|
17
|
17
62142041100 Dumper 40 ShoreTX30 |
62142041100 |
US $2.81 |
||
