Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 61314001000 Head Light TX30	61314001000	US $755.74
2	2 78114025000 Flasher cpl.front l/s rear r/s TX30	78114025000	US $42.13
3	3 78114026000 Flasher cpl.front r/s rear l/s TX30	78114026000	US $42.13
4	4 61014030000 Flasher nut m10x1,25 ws=12 TX30	61014030000	US $8.06
5	5 58414030000 Hh collar nut m10x1,25 ws=13 TX30	58414030000	US $2.60
6	6 0797100003 Lock washer din6797-j10,5 zi TX30	0797100003	US $0.65
7	7 0433100003 Washer 18x10,5x1,6 TX30	0433100003	US $1.29
8	8 6130800300030A Mask Spoiler L/s Black 14 TX30	6130800300030A	US $112.05
9	9 6130800400030A Mask Spoiler R/s Black 14 TX30	6130800400030A	US $112.05
10	10 57111038000 Bulb h4 12v 60/55w (p43t) TX30	57111038000	US $44.46
11	11 61314001050 Rubber Cap For Head Light TX30	61314001050	US $14.43
12	12 69008021160 Special screw m5x12 TX30	69008021160	US $5.46
13	13 69008021080 Range change metal nut m5 TX30	69008021080	US $4.35
14	14 61314140000 Rear Light Superduke Sae TX30	61314140000	US $287.74
	replacement
14	14 61314140200 Rear Light Superduke Sae TX30	61314140200	US $281.89
15	15 60314047000 Number Plate Light TX30	60314047000	US $35.29
16	16 61308024000 Cover Number Plate Light TX30	61308024000	US $6.14
17	17 0081050121 Screw for plastic k50x12 t20 TX30	0081050121	US $1.19
18	18 0081050141 Ejot Pt Screw 50X14 Wn 1451 TX30	0081050141	US $0.82
19	19 0522040003 Washer Din522 A2K 4.3X20X1.25 TX30	0522040003	US $0.58
20	20 61013013000 Rubber bush 05 TX30	61013013000	US $3.54
21	21 61308023000 Number Plate Carrier Low. Part TX30	61308023000	US $51.90
22	22 61308022000 Number Plate Carrier Upp. Part TX30	61308022000	US $51.75

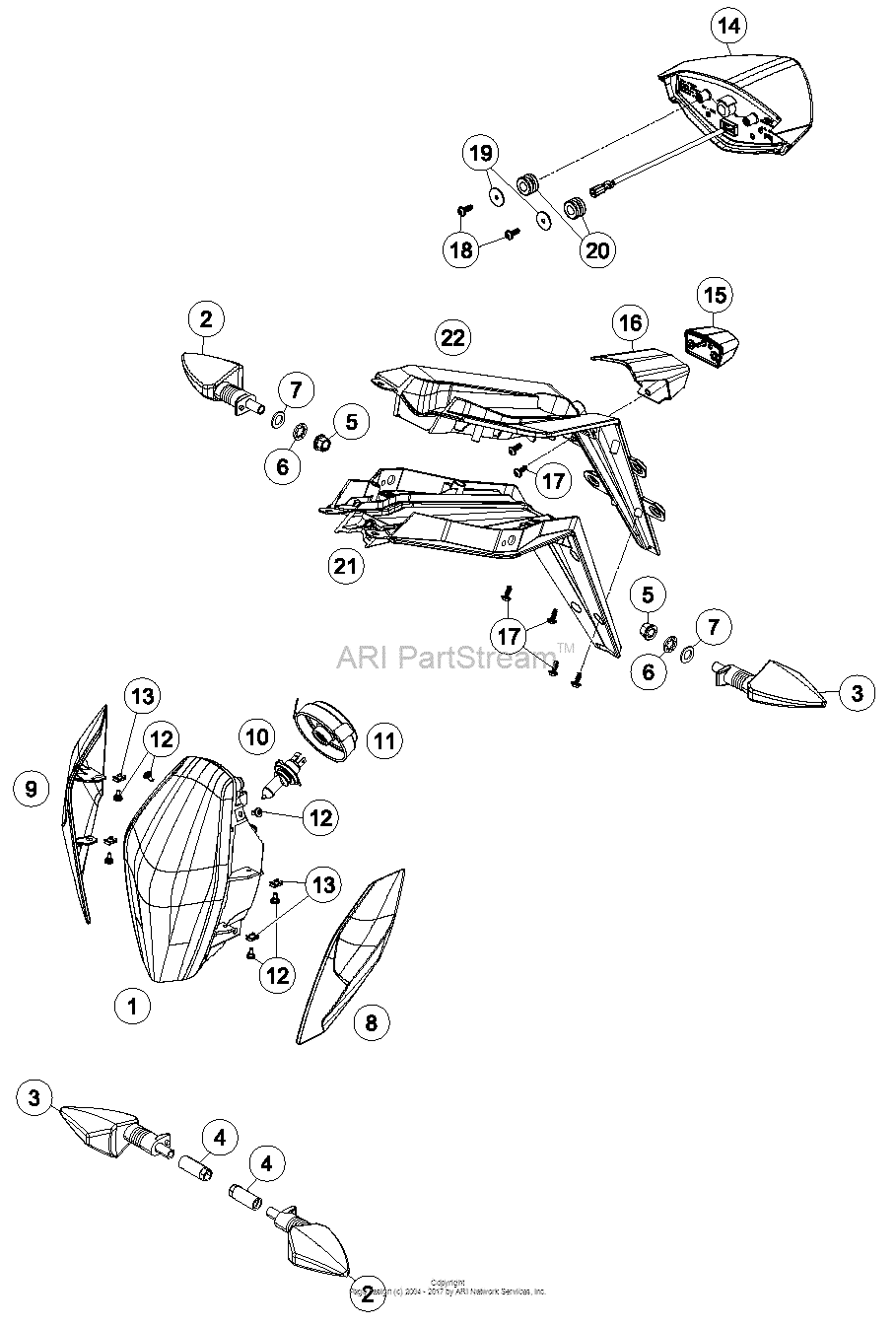

Lighting System Diagram KTM 1290 1290 SD-R US/EU 18077783-939290

Lighting System Diagram KTM 1290 1290 SD-R US/EU 18077783-939290
