Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 61335010000 Water Cooler TX30	61335010000	US $682.58
2	2 62535009000 Radiator cap 1,4 bar TX30	62535009000	US $29.22
3	3 0025060126 Hh collar screw m6x12 tx30 TX30	0025060126	US $3.96
4	4 60035048000 Alu-gasket 6x10x1.5 TX30	60035048000	US $3.89
5	5 41001052000 Rubber Sleeve D=12Mm TX30	41001052000	US $5.46
6	6 0025060206 Hh collar screw m6x20 tx30 TX30	0025060206	US $1.97
7	7 61335065000 Expansion Tank Cpl TX30	61335065000	US $46.38
8	8 60335066044 Plug F. Expansion Tank TX30	60335066044	US $8.50
9	9 58007117000 Ydnac-clamp 10107 10mm TX30	58007117000	US $2.16
10	10 60035067001 Hose 6x10 epdm 03 As Required	60035067001	US $7.62
11	11 0081250141 Screw For Plastic Pt K50X14T25 As Required	0081250141	US $1.14
12	12 60335044033 Fan Cover Cpl As Required	60335044033	US $412.42
13	13 31008060000 Rubber Sleeve D=8Mm Open As Required	31008060000	US $1.09
14	14 69008021080 Range change metal nut m5 As Required	69008021080	US $4.35
15	15 60335005000 Mounting Plate Cooler Bottom As Required	60335005000	US $19.53
16	16 75014010050 Collar bushing 6,1x8,1x14x8 07 As Required	75014010050	US $2.52
17	17 0024060206 Hh collar screw m6x20 tx30 TX30	0024060206	US $3.54
18	18 0025050106 Collar screw m5x12 isa30 TX30	0025050106	US $0.82
19	19 54305058000 Hose clamp 30-45 sgt TX30	54305058000	US $4.85
20	20 60335026000 Preformed Hose TX30	60335026000	US $17.77
21	21 00050396706 Variable one-ear clamp 39,6mm TX30	00050396706	US $8.06
22	22 60335093000 Y-Joint TX30	60335093000	US $9.88
23	23 00050331706 Variable one-ear clamp 33,1mm TX30	00050331706	US $8.06
24	24 60335025000 Preformed Hose TX30	60335025000	US $17.39
25	25 69008021160 Special screw m5x12 TX30	69008021160	US $5.46
26	26 61235019100 Water connection cpl. TX30	61235019100	US $19.55
27	27 61235017000 Thermostat 70 degree TX30	61235017000	US $29.46
28	28 60335024000 Preformed Hose TX30	60335024000	US $17.73
29	29 60335027000 Preformed Hose TX30	60335027000	US $24
30	30 0024060123 Collar screw m6x12 tx TX30	0024060123	US $0.66
31	31 61335049000 Airdeflector TX30	61335049000	US $3.50
32	32 0081050141 Ejot Pt Screw 50X14 Wn 1451 TX30	0081050141	US $0.82
33	33 61342041000 Collar Bush 6,5X9X18X8,5 TX30	61342041000	US $3.50
34	34 62142041000 Damp. Component Abs Modul TX30	62142041000	US $2.70
35	35 0021060003 Washer Din9021-A 6,4 TX30	0021060003	US $3.26
36	36 83008000012 Special screw m6x12x3 TX30	83008000012	US $1.92

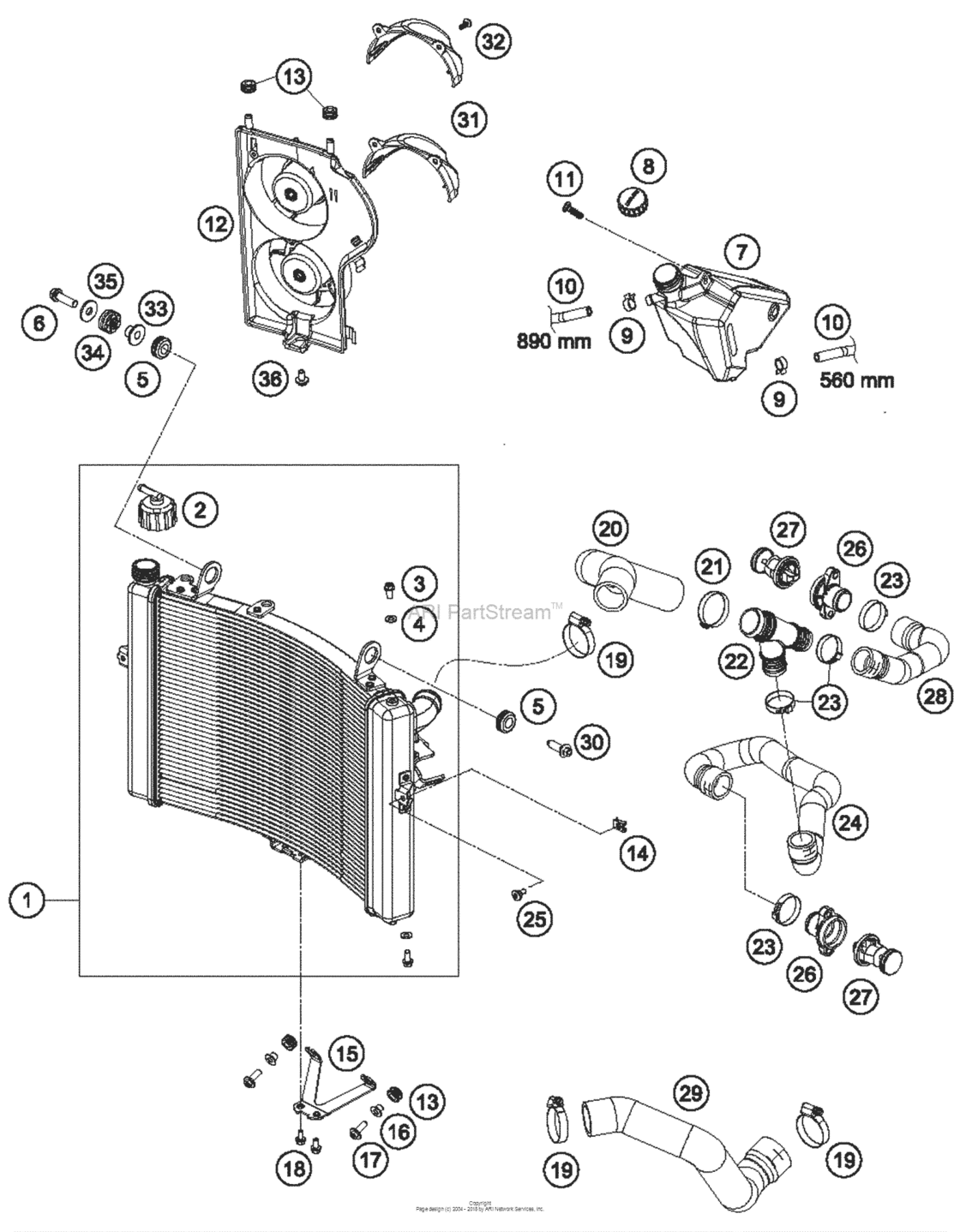

Cooling System Diagram KTM 1290 1290 SD-R US/EU 18077797-939291

Cooling System Diagram KTM 1290 1290 SD-R US/EU 18077797-939291
