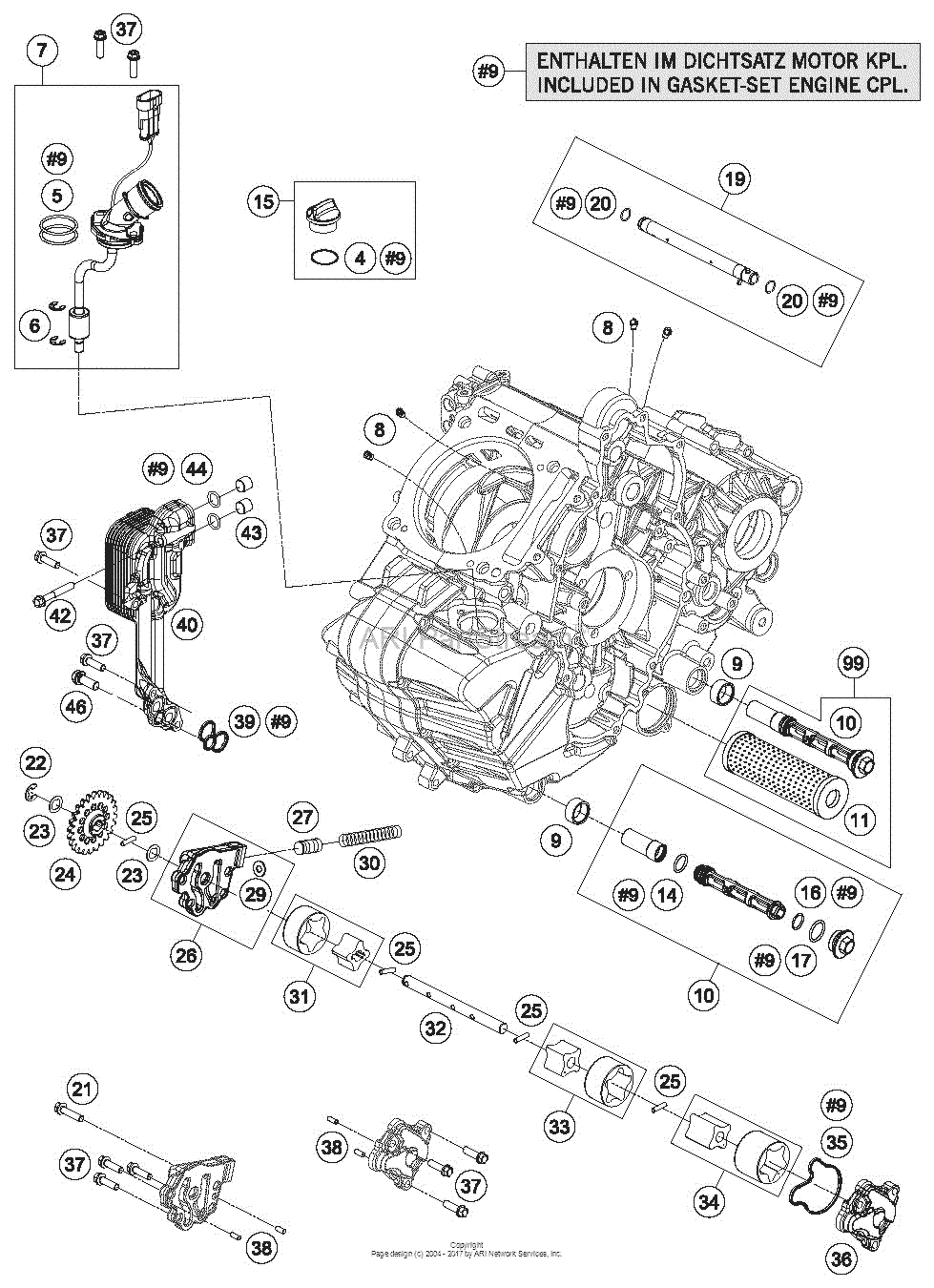

Lubricanting System Diagram KTM 1290 1290 SD-R
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 1290
- Model
- 1290 SD-R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4
|
4
0770191015 O-ring 19,00x3,00 nbrTX30 |
0770191015 |
US $1.16 |
||
|
5
|
5
0770300020 O-ring 30x2,0 fpmTX30 |
0770300020 |
US $3.89 |
||
|
6
|
6
0799070000 Tab washer din6799-rs 7,0TX30 |
0799070000 |
US $0.56 |
||
|
7
|
7
61338085000 Oil Filling Flange CplTX30 |
61338085000 |
US $187.44 |
||
|
8
|
8
60030063070 Oil jet 70 m5TX30 |
60030063070 |
US $10.86 |
||
|
9
|
9
61238017000 Oil screen bushing 08TX30 |
61238017000 |
US $5.92 |
||
|
10
|
10
61238021100 Oil screen cpl.TX30 |
61238021100 |
US $28.66 |
||
| replacement | |||||
|
10
|
10
61238021200 Oil screen cpl.TX30 |
61238021200 |
US $28.66 |
||
|
11
|
11
61338015000 Oil Filter2014 |
61338015000 |
US $21.45 |
||
| replacement | |||||
|
11
|
11
61338015200 Oil Filter2014 |
61338015200 |
US $41.31 |
||
|
14
|
14
0770140200 O-ring 14,00x2,002014 |
0770140200 |
US $1.22 |
||
|
15
|
15
58030120000
Oil filler cap m24x3 with o-r
2014 |
58030120000 |
— | ||
| replacement | |||||
|
15
|
15
79430020033 Oil Filler Cap M24X3 With O-R2014 |
79430020033 |
US $7.31 |
||
|
16
|
16
0770125015 O-Ring 12,5X1,5 Nbr2014 |
0770125015 |
US $2.60 |
||
|
17
|
17
0770170200 O-ring 17,00x2,002014 |
0770170200 |
US $0.49 |
||
|
19
|
19
61230065000 Oil injection tube cpl. 082014 |
61230065000 |
US $25.35 |
||
|
20
|
20
0770010010 O-ring 10,00x1,00 nbr 70 sh2014 |
0770010010 |
US $2.24 |
||
|
21
|
21
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
22
|
22
0799080000 Tab washer din6799 rs8TX30 |
0799080000 |
US $0.63 |
||
|
23
|
23
60038007010 Washer 10x16x0,5 03TX30 |
60038007010 |
US $0.39 |
||
|
24
|
24
60038001024 Oil pump gear 24-t 03TX30 |
60038001024 |
US $73.42 |
||
|
25
|
25
0402041580 Needle roller nrb 4x15,8 g2TX30 |
0402041580 |
US $0.85 |
||
|
26
|
26
61238009144 Pressure pump cover cpl.TX30 |
61238009144 |
US $26.49 |
||
|
27
|
27
60038028000 Control piston lc8 03TX30 |
60038028000 |
US $12.72 |
||
|
29
|
29
50337073000 ShimTX30 |
50337073000 |
US $1.63 |
||
|
30
|
30
61238026000 Control springTX30 |
61238026000 |
US $5.34 |
||
|
31
|
31
60038009000 Rotor-set 19mm 03TX30 |
60038009000 |
US $66.88 |
||
|
32
|
32
61238002000 Oil pump shaft 08TX30 |
61238002000 |
US $17.46 |
||
|
33
|
33
61238011100 Rotor Set 22MmTX30 |
61238011100 |
US $21.47 |
||
|
34
|
34
61238010100 Rotor Set 30MmTX30 |
61238010100 |
US $20.15 |
||
|
35
|
35
61238008150 Molded ring suction pump coverTX30 |
61238008150 |
US $20.55 |
||
|
36
|
36
61238008200 Suction pump coverTX30 |
61238008200 |
US $20.98 |
||
|
37
|
37
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
38
|
38
0402050980 Needle roller din5402 5x9,8TX30 |
0402050980 |
US $0.80 |
||
|
39
|
39
61238051000 Molded ringTX30 |
61238051000 |
US $3.91 |
||
|
40
|
40
6923805000033 Oil cooler cpl.TX30 |
6923805000033 |
US $417.13 |
||
|
42
|
42
0025060506 Hh collar screw m6x50 tx30TX30 |
0025060506 |
US $3.30 |
||
|
43
|
43
61238052000 BushingTX30 |
61238052000 |
US $3.79 |
||
|
44
|
44
0770012021 O-ring 12x2 viton greenTX30 |
0770012021 |
US $1.34 |
||
|
46
|
46
0025080206 Hh collar screw m8x20 tx40TX40 |
0025080206 |
US $2.09 |
||
|
99
|
99
00050000068 Oilfilter service kitAs Required |
00050000068 |
US $85.34 |
||
