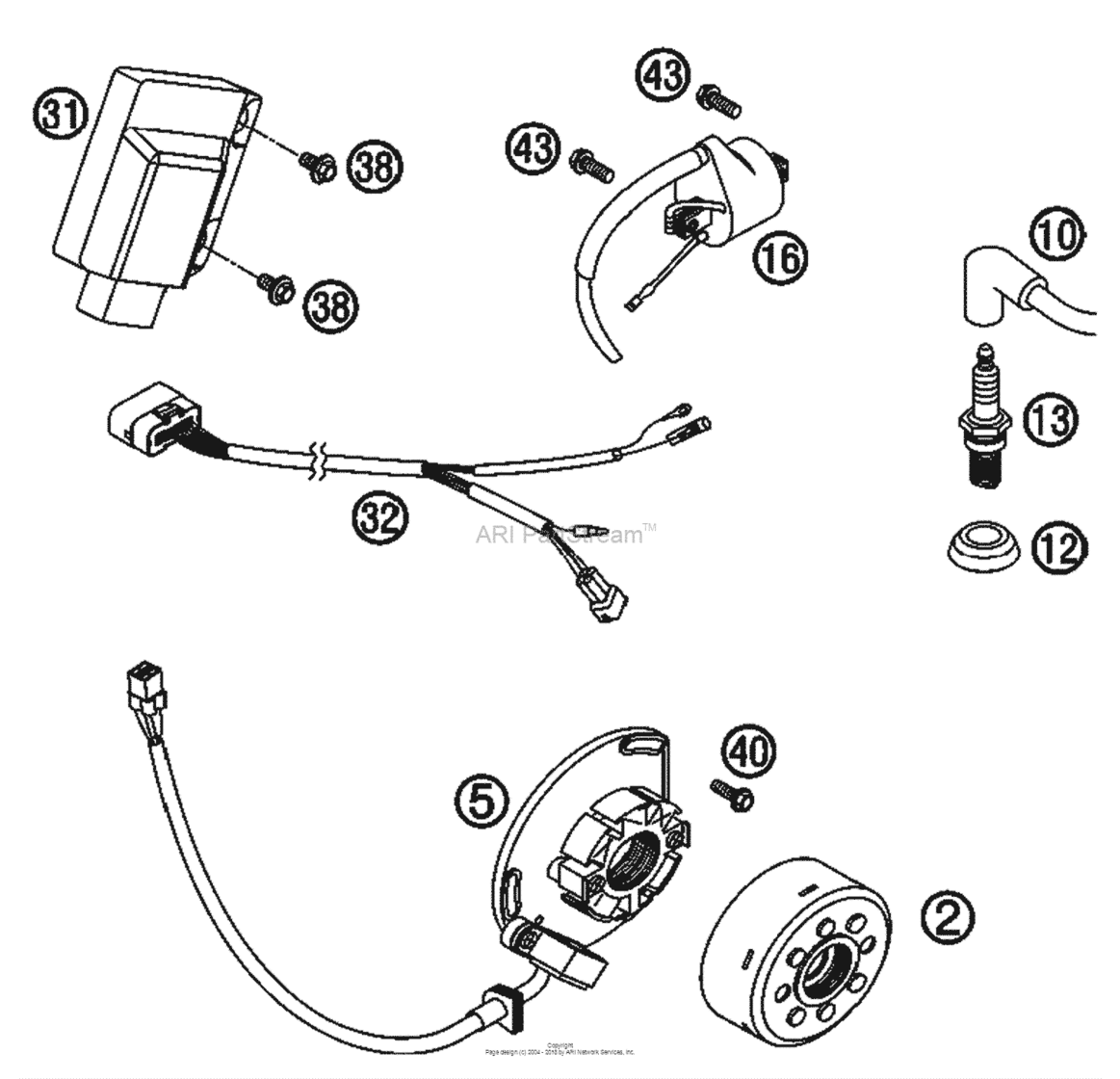

Ignition System Diagram KTM 144 SX
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 144
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
55139005000 Flywheel kokusan'98 |
55139005000 |
US $362.19 |
||
|
4
|
4
55130040000 Igniti.cover gasket 0707 |
55130040000 |
US $8.45 |
||
|
5
|
5
55139004000 Stator kokusan07 |
55139004000 |
US $187.51 |
||
| replacement | |||||
|
5
|
5
55139004100 Stator07 |
55139004100 |
US $187.51 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.0404 |
47039090000 |
US $24.26 |
||
|
12
|
12
50231012000 Sealing cup for spark plug04 |
50231012000 |
US $3.91 |
||
|
13
|
13
51539093000 Spark plug br9ecmvx04 |
51539093000 |
US $20.81 |
||
|
16
|
16
50339006000 Ignitioncoil Ig512804 |
50339006000 |
US $77.81 |
||
| replacement | |||||
|
16
|
16
59039006000 Ignitioncoil "ig5128"04 |
59039006000 |
US $132.38 |
||
|
31
|
31
51539031000
Cdi unit 144 sx 07
07 |
51539031000 |
— | ||
| replacement | |||||
|
31
|
31
51539031100 Cdi unit 144 sx 0707 |
51539031100 |
US $283.70 |
||
|
32
|
32
54839032300 Wiring harness f.cdi 2-st.sx0707 |
54839032300 |
US $67.86 |
||
|
38
|
38
0023060123 Collar screw m6x12 tx(As required) |
0023060123 |
US $0.87 |
||
|
40
|
40
0015050163 Hh Collar Screw M 5X16 Ws=8WS=8 |
0015050163 |
US $1.31 |
||
|
43
|
43
0015060163 Hh Collar Screw M 6X16 Ws=8WS=8 |
0015060163 |
US $2.23 |
||
