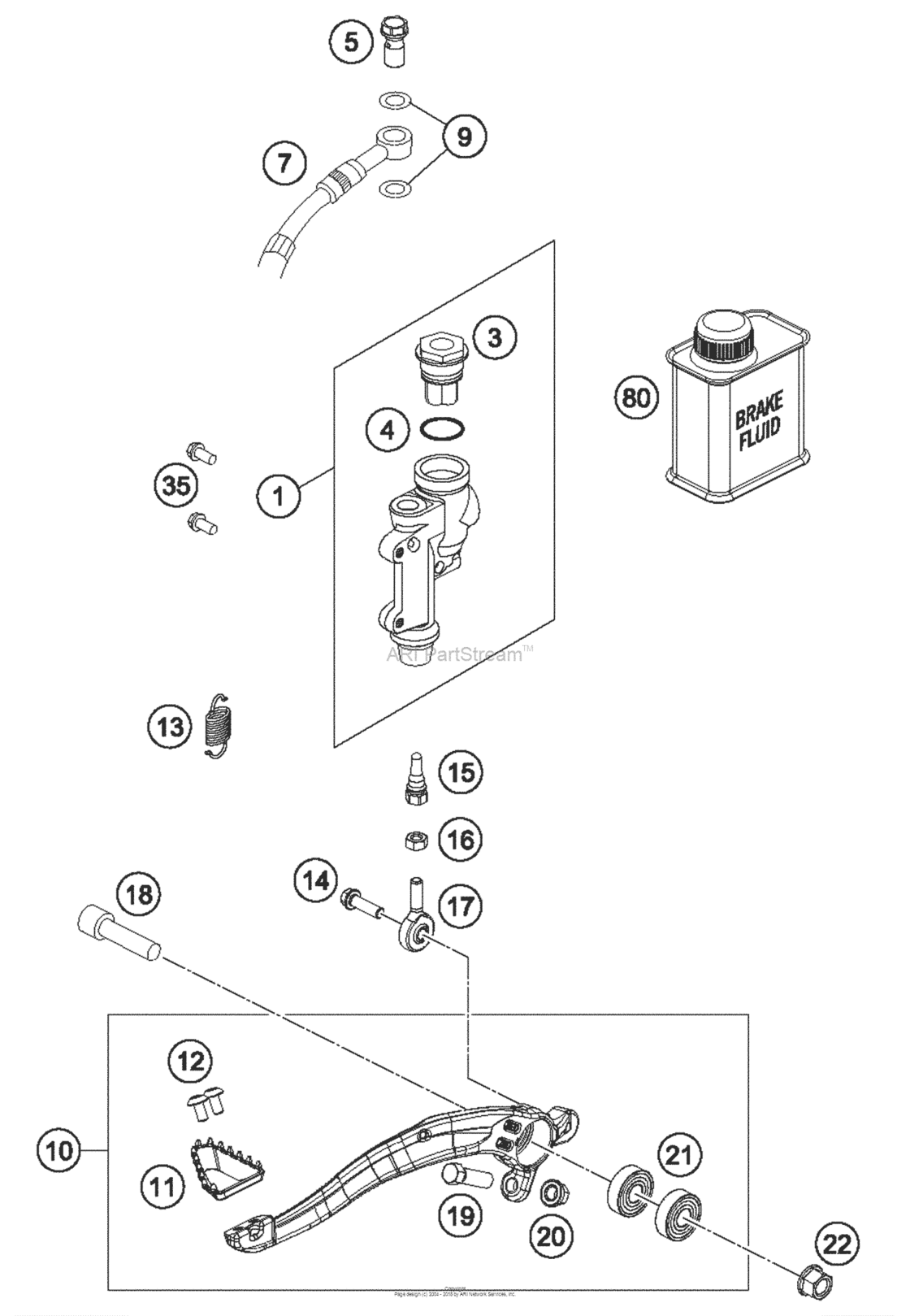

Rear Break Control Diagram KTM 150 150 SX
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77013060044 Rear brake cylinder cpl.sx 09As Required |
77013060044 |
US $327.56 |
||
|
3
|
3
54813062100 Rear brake cyl. cover cpl. 04As Required |
54813062100 |
US $45.70 |
||
|
4
|
4
54813063000 Foot-brake cyl. gasket sx 03As Required |
54813063000 |
US $8.45 |
||
|
5
|
5
54813020100 Hollow screw black m10x1x19As Required |
54813020100 |
US $8.67 |
||
|
7
|
7
77213070100 Brake Hose RearAs Required |
77213070100 |
US $60.01 |
||
|
9
|
9
0603100141 Copper Gasket Din7603-10X14X1As Required |
0603100141 |
US $2.24 |
||
|
10
|
10
79413050044 Foot Brake Lever CplAs Required |
79413050044 |
US $144.02 |
||
|
11
|
11
79413051000 Step Brake Lever 16As Required |
79413051000 |
US $27.05 |
||
|
12
|
12
78105081010 Screw Torx M5X10As Required |
78105081010 |
US $0.61 |
||
|
13
|
13
79003062000 Return Spring F. Brake LeverAs Required |
79003062000 |
US $4 |
||
|
14
|
14
0025060206S Hh collar screw m6x20 tx30TX30 |
0025060206S |
US $2.60 |
||
|
15
|
15
54813056000 Push rod l=28mm 03TX30 |
54813056000 |
US $20.09 |
||
|
16
|
16
0934060003 Hexagon Nut Din0934-M 6TX30 |
0934060003 |
US $0.43 |
||
|
17
|
17
54813055100 Swivel Head Cmp6TX30 |
54813055100 |
US $25.18 |
||
|
18
|
18
0032100356S Ah-Collar Screw M10X35 Isa45TX30 |
0032100356S |
US $3.57 |
||
|
19
|
19
59001037000 Special screw m8x26 ws=10TX30 |
59001037000 |
US $2.09 |
||
|
20
|
20
46030045000 Collar nut m8 ws=10TX30 |
46030045000 |
US $6.94 |
||
|
21
|
21
0625060002 Ball bearing skf 6000-2rs1TX30 |
0625060002 |
US $10.85 |
||
|
22
|
22
54630044000 Collar nut m10 ws=13TX30 |
54630044000 |
US $2.16 |
||
|
35
|
35
0025060126 Hh collar screw m6x12 tx30TX30 |
0025060126 |
US $3.96 |
||
|
80
|
80
00062030000 Brake fluid dot5.1 0,25lTX30 |
00062030000 |
US $14.35 |
