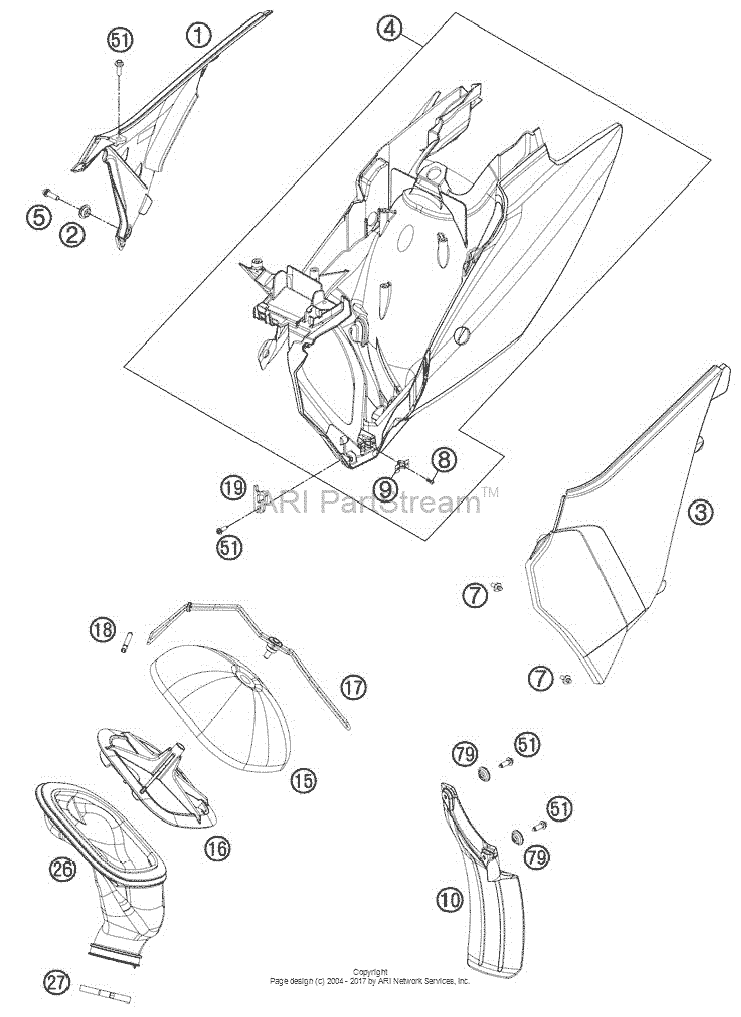

Air Filter Diagram KTM 150 150 SX
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7720600400004E Air Box Cover Or. Right Sx 1212 |
7720600400004E |
US $34.65 |
||
|
2
|
2
77308013010 Collar bush. f.rear fender 0707 |
77308013010 |
US $4.35 |
||
|
3
|
3
7720600300004E Air Box Cover Or. Left Sx 1212 |
7720600300004E |
US $34.65 |
||
|
4
|
4
7720600104428 Filter Box Cpl. White 1312 |
7720600104428 |
US $62.97 |
||
| replacement | |||||
|
4
|
4
7770600104428 Filter Box Cpl. White 1312 |
7770600104428 |
US $62.97 |
||
|
5
|
5
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
7
|
7
54806008051 Quick release-nipple 0303 |
54806008051 |
US $2.04 |
||
|
8
|
8
54806108052 Blind rivet 3,3x9,7 grooved 0403 |
54806108052 |
US $1.21 |
||
|
9
|
9
54806008050 Quick release-spring hanger03 |
54806008050 |
US $1.33 |
||
|
10
|
10
77306010000 Fender for filter box03 |
77306010000 |
US $19.60 |
||
|
15
|
15
77206015000 Air Filter03 |
77206015000 |
US $38.10 |
||
|
16
|
16
54806516000 Filter Carrier03 |
54806516000 |
US $8.23 |
||
|
17
|
17
77206017000 Filter Support Cpl. 1111 |
77206017000 |
US $21.35 |
||
|
18
|
18
77306018000 Filter support bush 0707 |
77306018000 |
US $3.16 |
||
|
19
|
19
77206019000 Fasten. Device Filter S. Sx 1111 |
77206019000 |
US $8.08 |
||
|
26
|
26
51506126000 Caburetor Connect. Boot11 |
51506126000 |
US $44.42 |
||
|
27
|
27
78006027000 Hose Clamp 45-65Mm11 |
78006027000 |
US $3.52 |
||
|
51
|
51
0017060204 Screw F. Plastic K60X20Al Sw6WS=6 |
0017060204 |
US $2.89 |
||
| replacement | |||||
|
51
|
51
0017060206 Screw F. Plastic K60X20Al Sw6WS=6 |
0017060206 |
US $2.89 |
||
|
79
|
79
77304066050 Bushing f. chain sliding pr.07WS=6 |
77304066050 |
US $1.60 |
||
