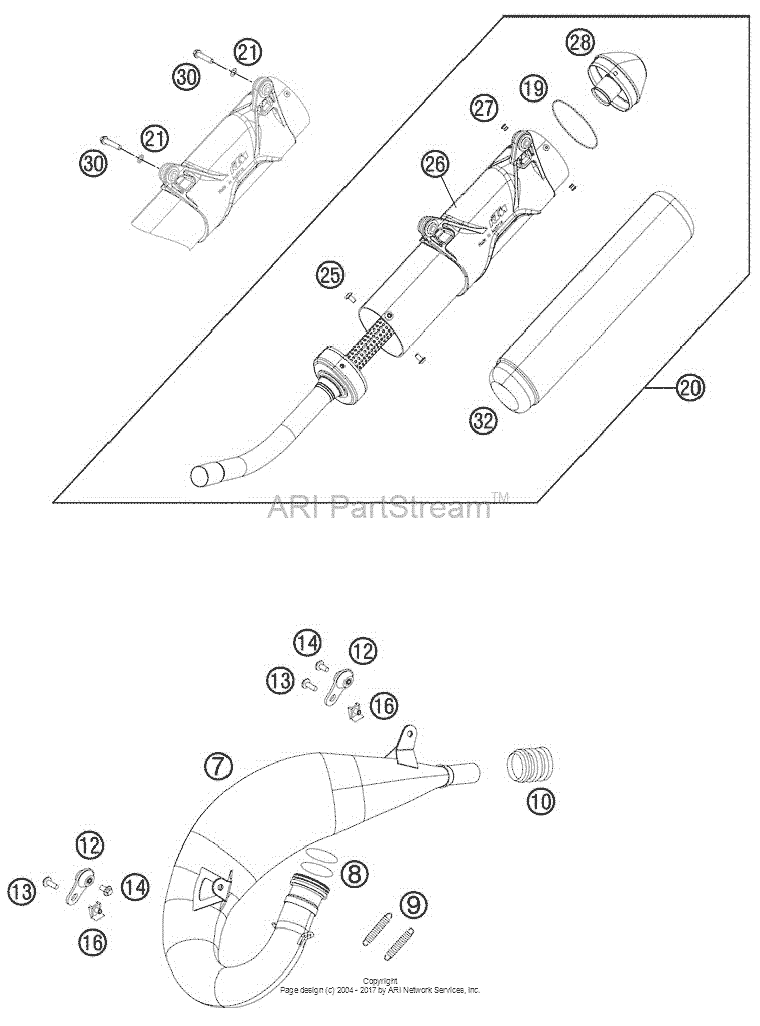

Exhaust System Diagram KTM 150 150 SX
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
50305107000 Exhaust Manifold2012 |
50305107000 |
US $423.47 |
||
|
8
|
8
0770440030 O-ring 44,00x3,00 viton2012 |
0770440030 |
US $6.05 |
||
|
9
|
9
50305016000
Ten.spring L=62Mm Ey.moveable
2012 |
50305016000 |
— | ||
| replacement | |||||
|
9
|
9
A46005016000 TEN.SPRING L=62MM EY.MOVEABLE2012 |
A46005016000 |
US $5.88 |
||
|
10
|
10
54605057000 Rubber sleeve d=21mm/23mm '93'93 |
54605057000 |
US $23.49 |
||
|
12
|
12
50305012000 Swingelement For Exhaust Pipe'93 |
50305012000 |
US $25.65 |
||
|
13
|
13
0024060156 Hh collar screw m6x15 tx30TX30 |
0024060156 |
US $3.96 |
||
|
14
|
14
0024060106 Hh collar screw m6x10 tx30TX30 |
0024060106 |
US $4.35 |
||
|
16
|
16
54603048100 Range Change Metal Nut M6TX30 |
54603048100 |
US $5.27 |
||
|
19
|
19
0770740015 O-ring 74,00x1,50 fkm 75shTX30 |
0770740015 |
US $2.53 |
||
|
20
|
20
50305079500 Silencer 125-150 SxTX30 |
50305079500 |
US $379.08 |
||
|
21
|
21
0137060003 Spring Washer Din0137-B 6TX30 |
0137060003 |
US $0.43 |
||
|
25
|
25
58605083010 Screw torx m5x10 0505 |
58605083010 |
US $1.70 |
||
|
26
|
26
50305179085 Silencer Casing Cpl.w.mounting05 |
50305179085 |
US $82.57 |
||
|
27
|
27
0011480800 Dummy Rivet 4,8X 8 Niro05 |
0011480800 |
US $2.35 |
||
|
28
|
28
50305083260 End Cap Cpl05 |
50305083260 |
US $91.10 |
||
|
30
|
30
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
32
|
32
50305078235 Rock Wool 235GTX30 |
50305078235 |
US $52.29 |
||
