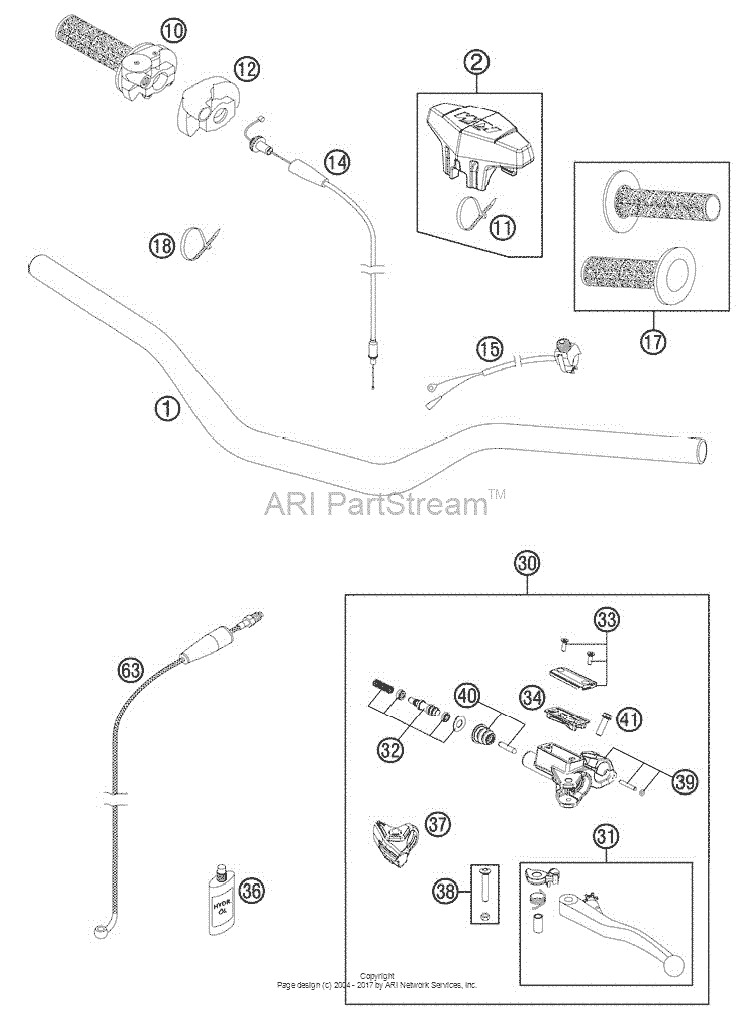

Handlebar, Controls Diagram KTM 150 150 SX
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7730200110017 Handlebar Renthal Sx 28Mm 0808 |
7730200110017 |
US $147.73 |
||
|
2
|
2
77202002100 Bar Pad Cpl08 |
77202002100 |
US $26.96 |
||
| replacement | |||||
|
2
|
2
77202002144 Bar Pad Cpl08 |
77202002144 |
US $26.96 |
||
|
10
|
10
54802010100 Throttle grip cpl. 0909 |
54802010100 |
US $95.44 |
||
| replacement | |||||
|
10
|
10
51502010200 Throttle Grip Cpl. 2St. 1309 |
51502010200 |
US $67.97 |
||
|
11
|
11
44011076305 Cable tie 300/4,8mm black09 |
44011076305 |
US $0.36 |
||
|
12
|
12
50302020000 Protection Cover '9797 |
50302020000 |
US $16.75 |
||
|
14
|
14
50302091000
Throttle c. 125-380 dom./keih.
97 |
50302091000 |
— | ||
| replacement | |||||
|
14
|
14
51502091200 Throttle Cable 2-St. 201497 |
51502091200 |
US $39.20 |
||
|
15
|
15
50311089200 Short Circuit Button 0202 |
50311089200 |
US $50.97 |
||
|
17
|
17
54802021200 Grip-set gray/orange 0909 Not Available |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black09 Not Available |
44011076200 |
US $0.39 |
||
|
30
|
30
50302030300 Master cylinder cpl. 9,5mm 0909 |
50302030300 |
US $372.45 |
||
|
31
|
31
50302031300 Clutch lever cpl. 20092009 |
50302031300 |
US $45.82 |
||
|
32
|
32
50302032100 Rep.kit piston 9,5mm 0909 |
50302032100 |
US $82.21 |
||
|
33
|
33
50302033200 Cover hydr. clutch cpl. 0909 |
50302033200 |
US $24.96 |
||
|
34
|
34
50302034100 Rubber for reservoir 0909 |
50302034100 |
US $17.24 |
||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 Ml09 |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037100
Mud cap 09
09 |
50302037100 |
— | ||
| replacement | |||||
|
37
|
37
76502037000 Protect.cap For Lever Perch 1309 |
76502037000 |
US $32.22 |
||
|
38
|
38
50302038200 Lever screw short cpl. 0909 |
50302038200 |
US $29.50 |
||
|
39
|
39
83013005000 Clamp, cyl. pin, o-ring09 |
83013005000 |
US $55.15 |
||
|
40
|
40
50302046000
Push rod cpl. 09
09 |
50302046000 |
— | ||
| replacement | |||||
|
40
|
40
76502046000 Push Rod Cpl. 1309 |
76502046000 |
US $32.86 |
||
|
41
|
41
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
63
|
63
50332063200 Clutch pipe l=970mm 0404 |
50332063200 |
US $88.57 |
||
