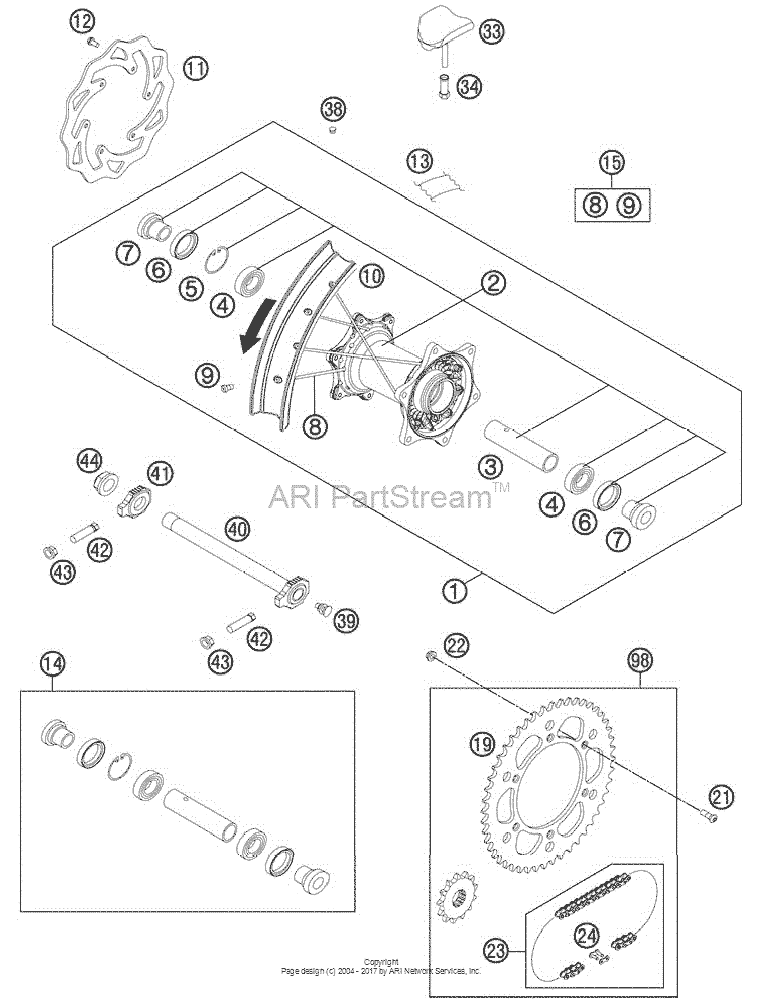

Rear Wheel Diagram KTM 150 150 SX
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77110001044 Rearwheel Cpl.2,15X19 Excel 11TX30 |
77110001044 |
US $827.58 |
||
|
2
|
2
78010010144 Rear wheel hub cpl.TX30 |
78010010144 |
US $343.30 |
||
| replacement | |||||
|
2
|
2
26510010144 Rear hubTX30 |
26510010144 |
US $396.81 |
||
|
3
|
3
59010011000 Bearing Distance Tube 121,5MmTX30 |
59010011000 |
US $20.16 |
||
| replacement | |||||
|
3
|
3
77710011000 Bearing Distance Tube 121,5MmTX30 |
77710011000 |
US $19.06 |
||
|
4
|
4
0625060058 Gr.ball bear.6005 ddu2cg23s6nmTX30 |
0625060058 |
US $23.17 |
||
|
5
|
5
0472047175 Circlip Din0472-47X1,75TX30 |
0472047175 |
US $3.89 |
||
|
6
|
6
0760324771 Shaft Seal Ring 32X47X7 BslTX30 |
0760324771 |
US $17.20 |
||
|
7
|
7
78010016000 Bushing for hub 0808 |
78010016000 |
US $29.68 |
||
|
8
|
8
77110071205 Spoke M4,5X205-19 1108 |
77110071205 |
US $5.19 |
||
|
9
|
9
77109072000 Spoke Nipple M4,5 Al 1111 |
77109072000 |
US $2.23 |
||
|
10
|
10
77110070000 Rim 2,15X19 Excel 1111 |
77110070000 |
US $309.66 |
||
|
11
|
11
77310060000 Brake Disc Rear 22011 |
77310060000 |
US $116.91 |
||
|
12
|
12
59009062013 Special Screw M6X13 Ws=8 10.910.9 |
59009062013 |
US $2.24 |
||
|
13
|
13
50310073200 Rim band 18" and 19"10.9 |
50310073200 |
US $12 |
||
|
14
|
14
78010015000 Rear wheel rep. kit10.9 |
78010015000 |
US $136.60 |
||
|
15
|
15
00050000917 Spoke Kit Rear 19(As required) |
00050000917 |
US $146.81 |
||
|
19
|
19
58310051038 Rear Sprocket 38-T(As required) |
58310051038 |
US $87.19 |
||
|
19
|
19
58310051042 Rear Sprocket 42-T(As required) |
58310051042 |
US $87.19 |
||
|
19
|
19
58310151040 Rear Sprocket 40-T(As required) |
58310151040 |
US $87.19 |
||
|
19
|
19
58310151045
Rear Sprocket 45-T
(As required) |
58310151045 |
— | ||
| replacement | |||||
|
19
|
19
7771015104501 New Genuine Part(As required) |
7771015104501 |
US $54.04 |
||
|
19
|
19
58310151048 Rear Sprocket 48-T(As required) |
58310151048 |
US $87.19 |
||
|
19
|
19
58310151049 Rear sprocket 49-t(As required) |
58310151049 |
US $81.01 |
||
|
19
|
19
58310151050 Rear Sprocket 50-T(As required) |
58310151050 |
US $87.19 |
||
|
19
|
19
58310151051 Rear sprocket 51-t(As required) |
58310151051 |
US $81.01 |
||
|
19
|
19
58310151052 Rear Sprocket 52-T(As required) |
58310151052 |
US $84 |
||
| replacement | |||||
|
19
|
19
7771015105201 Rear Sprocket 52-T(As required) |
7771015105201 |
US $54.04 |
||
|
21
|
21
0019080266S Counter-sunk screw isa45 m8x26(As required) |
0019080266S |
US $2.23 |
||
|
22
|
22
06923080003 Hexagon nut din en1661 m8 sw13(As required) |
06923080003 |
US $1.16 |
||
|
23
|
23
50310165118 Chain 5/8X1/4 Mx(As required) |
50310165118 |
US $89.56 |
||
|
24
|
24
50310166000 Connecting Link F. 50310165118(As required) |
50310166000 |
US $6.10 |
||
|
33
|
33
54010100100 Rim Lock 2,15(As required) |
54010100100 |
US $33.01 |
||
| replacement | |||||
|
33
|
33
78110090000 Rim Lock 2,15(As required) |
78110090000 |
US $24.77 |
||
|
34
|
34
77110090050 Nut For Wheel Holder(As required) |
77110090050 |
US $3.60 |
||
|
38
|
38
55003135000 Plug For Rim(As required) |
55003135000 |
US $1.02 |
||
|
39
|
39
50210086000 Covering cap sfl16(As required) |
50210086000 |
US $3.54 |
||
|
40
|
40
77310085044 Wheel Spindle Re. Cpl.265Mm 0707 |
77310085044 |
US $65.35 |
||
|
41
|
41
50310084000 Chain tensioner r/s 20002000 |
50310084000 |
US $18.45 |
||
|
42
|
42
50304040100 Screw M10X1,25X50 Ws=102000 |
50304040100 |
US $6.61 |
||
|
43
|
43
58414030000 Hh collar nut m10x1,25 ws=13WS=13 |
58414030000 |
US $2.60 |
||
|
44
|
44
50310099000 Hexagon Nut M20X1,5 '98'98 |
50310099000 |
US $19.04 |
||
|
98
|
98
00050002004 Drivetrain kit 250sx/-f 13/48t(As required) |
00050002004 |
US $241.37 |
||
