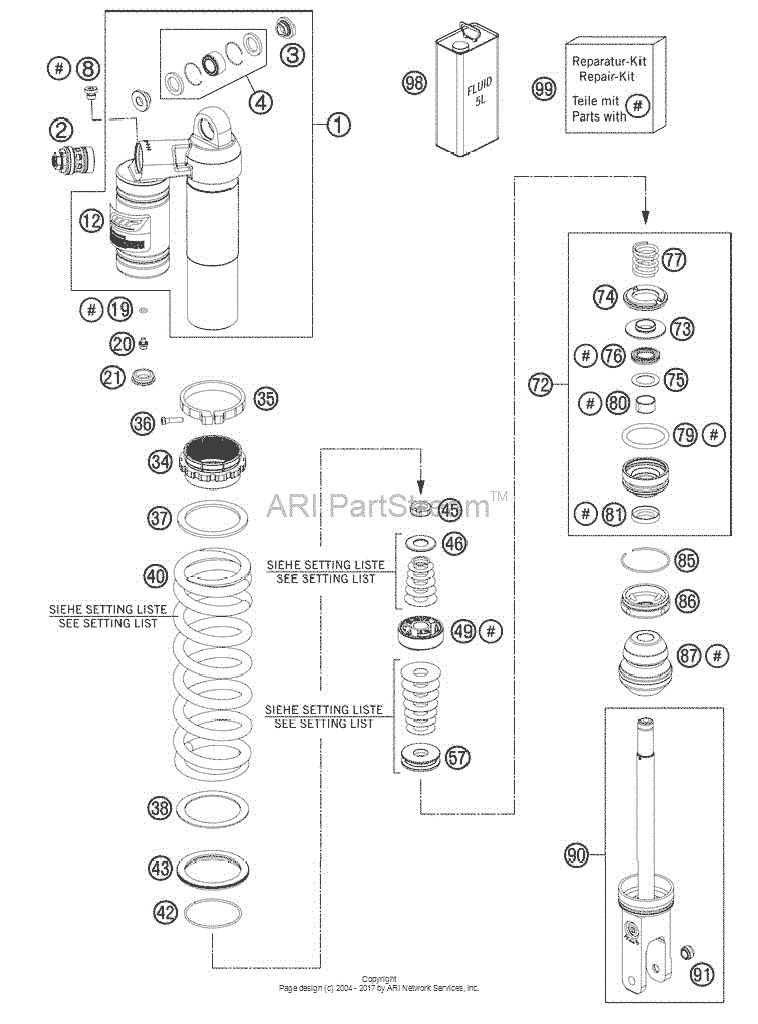

Shock Absorber Disassembled Diagram KTM 150 150 SX
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50180944S1 Monoshock Upper Part Cpl(As required) |
50180944S1 |
US $427.67 |
||
|
2
|
2
50180213S15 Dcc Compr.damp.con. Sx 12 Link(As required) |
50180213S15 |
US $187.17 |
||
|
3
|
3
46180010 Bush kgw 10x24(As required) |
46180010 |
US $14.13 |
||
|
4
|
4
R12012
Rep. kit bear./seal up. 07
07 |
R12012 |
— | ||
| replacement | |||||
|
4
|
4
R12012T Rep. kit bear./seal up. 0707 |
R12012T |
US $45.19 |
||
|
8
|
8
50180095 Bleed plug r 1/807 |
50180095 |
US $9.15 |
||
|
12
|
12
52000087 Sticker wp monoshock07 |
52000087 |
US $14.50 |
||
|
19
|
19
46810893 O-ring nbr 5,28x1,7807 |
46810893 |
US $1.12 |
||
|
20
|
20
36120151 Screw plug m5x607 |
36120151 |
US $7.31 |
||
|
21
|
21
46811208 Rubber cap "do not open"07 |
46811208 |
US $5.68 |
||
|
34
|
34
50180938
Adjusting Nut Plastic Cpl
07 |
50180938 |
— | ||
| replacement | |||||
|
34
|
34
50180938SA ADJUSTING NUT PLASTIC CPL.07 |
50180938SA |
US $44.86 |
||
|
35
|
35
50180937 Tensioning Ring D64 H1007 |
50180937 |
US $23.36 |
||
|
36
|
36
14460042 Ah Screw Din0912-M 5X2007 |
14460042 |
US $1.96 |
||
| replacement | |||||
|
36
|
36
0912050203 Ah screw din0912-m 5x2007 |
0912050203 |
US $0.80 |
||
|
37
|
37
50180965 Spacer Ring Spring 61,3X78X307 |
50180965 |
US $19.55 |
||
|
38
|
38
50180793 Spacer Ring Adjusting Nut07 |
50180793 |
US $4 |
||
|
40
|
40
91210081S Spring 260 48 N/mm Orange(As required) |
91210081S |
US $223.13 |
||
|
40
|
40
91210082S Spring 260 51N/mm D11,25 Or(As required) |
91210082S |
US $223.13 |
||
|
40
|
40
91210083S Spring 260 54N/mm D11,5 Or(As required) |
91210083S |
US $223.13 |
||
|
40
|
40
91210084S Spring 260 57N/mm D11,75 Or(As required) |
91210084S |
US $223.13 |
||
|
40
|
40
91210085S Spring 260 45N/mm Orange(As required) |
91210085S |
US $349.06 |
||
| replacement | |||||
|
40
|
40
91210085SA Spring 45-260 D11 Orange Cpl(As required) |
91210085SA |
US $349.06 |
||
|
40
|
40
91210089S Spring 260 60 N/mm Orange(As required) |
91210089S |
US $223.13 |
||
|
42
|
42
50180273 Circlip 58,2x2(As required) |
50180273 |
US $2.16 |
||
|
43
|
43
50180824 Spring Plate D80 Closed(As required) |
50180824 |
US $30.06 |
||
|
45
|
45
50180141 Piston rod nut m16x1(As required) |
50180141 |
US $29.99 |
||
|
46
|
46
50180836 Rebound Disc 16X34 T2 H0(As required) |
50180836 |
US $18.39 |
||
|
49
|
49
50180786S Piston D50(As required) |
50180786S |
US $51.49 |
||
| replacement | |||||
|
49
|
49
50180786E Piston D50(As required) |
50180786E |
US $51.49 |
||
|
57
|
57
50180801 Rebound Disc D16X43 H8(As required) |
50180801 |
US $25.43 |
||
|
57
|
57
50180961 Rebound Disc D16X43 H12(As required) |
50180961 |
US $27.59 |
||
|
72
|
72
50180603S3 Adapter D50 H28 Cpl(As required) |
50180603S3 |
US $101.10 |
||
|
73
|
73
50180800 Spring Ring(As required) |
50180800 |
US $10.85 |
||
|
74
|
74
50180798 Rebound Rubber(As required) |
50180798 |
US $5.80 |
||
|
75
|
75
50180604 Shim d29,75 x d19 x t0,4 0808 |
50180604 |
US $3.18 |
||
|
76
|
76
50180605S Seal d18x30x5 0808 |
50180605S |
US $49.33 |
||
|
77
|
77
50180780 Rebound Spring08 |
50180780 |
US $6.78 |
||
|
79
|
79
50180103 O-ring 41x508 |
50180103 |
US $2.60 |
||
|
80
|
80
46180119 Du-bush 18x20x1208 |
46180119 |
US $25.99 |
||
|
81
|
81
50180606 Dust seal 1828 0808 |
50180606 |
US $16.05 |
||
|
85
|
85
50180126 Circlip 53x1,7508 |
50180126 |
US $2.53 |
||
|
86
|
86
50180626 Reservoir cap d=50 h=10 0909 |
50180626 |
US $66.76 |
||
|
87
|
87
50180775 Bump Rubber09 |
50180775 |
US $25.43 |
||
|
90
|
90
50180773SA1 Monoshock Bottom Part Cpl09 |
50180773SA1 |
US $298.83 |
||
|
91
|
91
46811205 Adaptor-bush m10x1,50, d=1509 |
46811205 |
US $12.05 |
||
|
98
|
98
50180751S1
Shock Absorber Fluid 5 Lt
09 |
50180751S1 |
— | ||
|
99
|
99
R12018 Repair-Kit09 |
R12018 |
US $148.55 |
||
