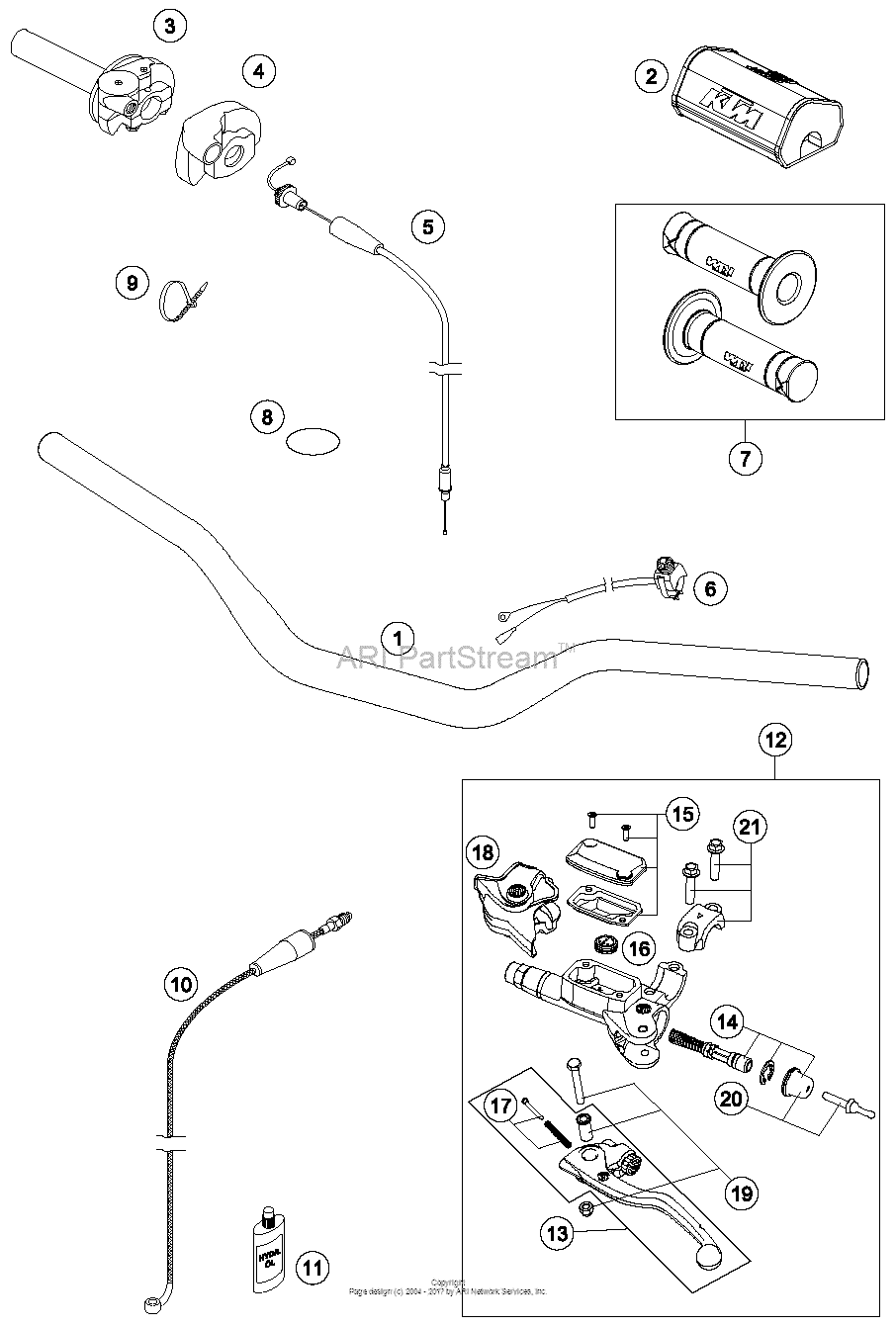

Handlebar, Controls Diagram KTM 150 150 SX
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7900200100030 Handlebar D=28Mm2000 |
7900200100030 |
US $160.77 |
||
|
2
|
2
79002002000 Bar Pad2000 |
79002002000 |
US $35.14 |
||
|
3
|
3
51502010200 Throttle Grip Cpl. 2St. 132000 |
51502010200 |
US $67.97 |
||
|
4
|
4
50302020000 Protection Cover '97'97 |
50302020000 |
US $16.75 |
||
|
5
|
5
51502091200 Throttle Cable 2-St. 20142014 |
51502091200 |
US $39.20 |
||
|
6
|
6
50311089200 Short Circuit Button 022014 |
50311089200 |
US $50.97 |
||
|
7
|
7
78102021000 Grip Set2014 |
78102021000 |
US $25.62 |
||
|
8
|
8
0770049025 O-ring 49,00x2,50 nbr2014 |
0770049025 |
US $2.98 |
||
|
9
|
9
44011076200 Cable tie 200/3,6mm black2014 |
44011076200 |
US $0.39 |
||
|
10
|
10
79232063000 Clutch Pipe2014 |
79232063000 |
US $114.50 |
||
|
11
|
11
50302036200 Oil For Hyd. Clutch 100 Ml2014 |
50302036200 |
US $19.23 |
||
|
12
|
12
79202030044 Master Cylinder Cpl2014 |
79202030044 |
US $264.08 |
||
|
13
|
13
54802031000 Clutch lever cpl. brembo 062014 |
54802031000 |
US $45.82 |
||
|
14
|
14
79202032044 Rep. Kit Piston 9Mm2014 |
79202032044 |
US $61.57 |
||
|
15
|
15
5480200310030 Cover Hyd. Clutch Cpl. 20142014 |
5480200310030 |
US $40.39 |
||
|
16
|
16
54802051000 Valve2014 |
54802051000 |
US $16.88 |
||
|
17
|
17
54802052000 Bolt kpl.2014 |
54802052000 |
US $26.49 |
||
|
18
|
18
54802037000 Protection cap 062014 |
54802037000 |
US $18.77 |
||
|
19
|
19
54802038100 Lever screw cpl. 062014 |
54802038100 |
US $36.02 |
||
|
20
|
20
54802046000 Push rod cpl.2014 |
54802046000 |
US $20.01 |
||
|
21
|
21
54802005100 Clamp cpl. 062014 |
54802005100 |
US $23.49 |
