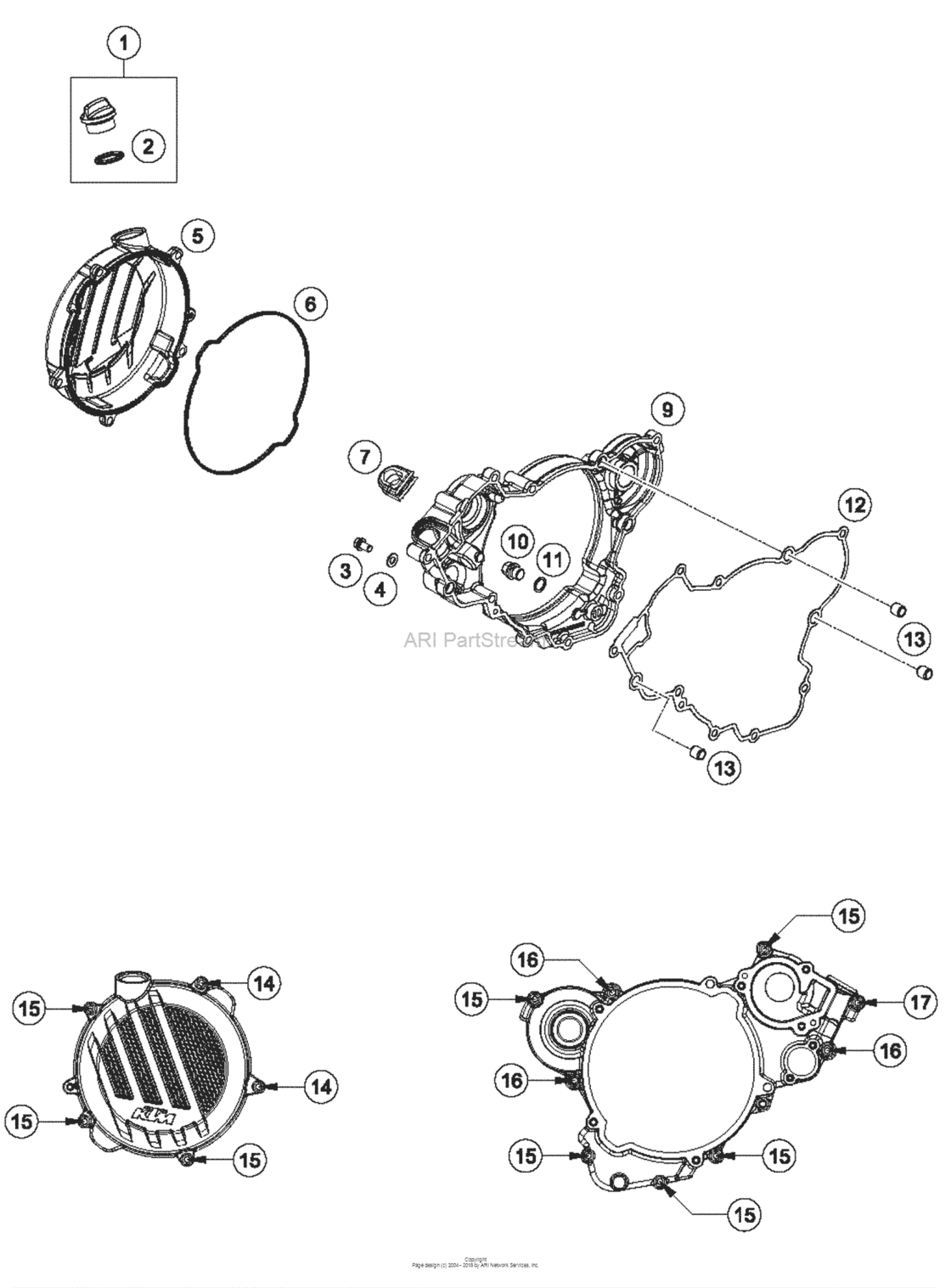

Clutch Cover Diagram KTM 150 150 SX
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79430020033 Oil Filler Cap M24X3 With O-RTX30 |
79430020033 |
US $7.31 |
||
|
2
|
2
0770191015 O-ring 19,00x3,00 nbrTX30 |
0770191015 |
US $1.16 |
||
|
3
|
3
0025060106 Hh collar screw m6x10 tx30TX30 |
0025060106 |
US $1.58 |
||
|
4
|
4
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
||
|
5
|
5
5043002600015 Outer Clutch CoverTX30 |
5043002600015 |
US $59.82 |
||
|
6
|
6
50430027000 Gasket Outer Clutch CoverTX30 |
50430027000 |
US $9.37 |
||
|
7
|
7
50437091100 Sealing ElementTX30 |
50437091100 |
US $19.99 |
||
|
9
|
9
50430001044 Inner Clutch Cover CplTX30 |
50430001044 |
US $192.90 |
||
|
10
|
10
0910100003 Plug din0910-m 10x1TX30 |
0910100003 |
US $4.39 |
||
|
11
|
11
0603100141 Copper Gasket Din7603-10X14X1TX30 |
0603100141 |
US $2.24 |
||
|
12
|
12
50430025000 Gasket Inner Clutch CoverTX30 |
50430025000 |
US $14.26 |
||
|
13
|
13
49030090000 Dowel 9,8 x 7 x 10TX30 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
13
|
13
49030090100 Dowel 9,8 X7X10TX30 |
49030090100 |
US $2.60 |
||
|
14
|
14
0025060506 Hh collar screw m6x50 tx30TX30 |
0025060506 |
US $3.30 |
||
|
15
|
15
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
16
|
16
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
17
|
17
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
